High strength injection-molded polycarbonate doors keep belongings while keeping a close eye on contents.
DigiTech Safety-View Plus Box lockers are available in Four, Five, Six Tier units, 16-person, and 4-wide wall mount. Electronic Lock feature locks with four-digit codes that can be programmed for day use or permanent mode.
Piano Hinge - SVP
Piano Hinge

A full-length piano hinge runs from the top to the bottom of the door and provides sturdy and smooth door operation.

Built-in Digitech Locks - Safety-View
Built-in Digitech Locks

The built-in electronic keypad allows a user to type in their code to open the locker. The locker can be opened when the battery is low or dead with a mechanical master key override.

Clear Panels - Safety-View Plus with Digitech built-in locks
Clear Panel Doors

Doors are made from high-strength injection-molded clear polycarbonate for unobstructed content viewing.

Product Overview
Ideal For Monitoring Locker Contents with digital lock

Lock Features:

  • Includes 1 CR 123 battery
  • LED's flash to indicate low battery level
  • Locker can be opened when battery is low or dead with a mechanical master key override
  • 8-digit master and sub-master codes for two levels of management security
Day Use Mode:
  • User can lock and unlock door with a user selected code
  • Upon returning, the user enters the 4-digit code to unlock door
  • Code is then erased and the locker is available for the next user
Permanent Use Mode:
  • User enters a pre-programmed 4-digit code to unlock and use locker repeatedly
  • Lock does not require a code to relock the door



Notes: Meets UL flammability standards, Polycarbonate is approved by the Consumer Product Safety Commission

Features:
Aluminum number plates (#1-up) with mounting hardware are included
Digitech H1 Locks and 1 CR123 battery included
Safety-View plus doors provide an unobstructed view of locker contents
Can be ordered fully-assembled or knock-down for assembly at destination
Order 3-wide units for best value. Order 1-wide units to complete quantity needed for each continuous row
Available for immediate shipping
Body/Frame Description:
Knock-down, 24 gauge
Body/Frame:
KD
Body Styles:
Four tier, Six tier, Sixteen Person and wall mount
Doors:
High strength injection-molded clear polycarbonate doors for unobstructed content viewing
Handle:

Hallowell DigiTech H1 lock serves as door pull when in the open position

Hinges:
Continuous piano type
Hooks:
None
Coat Rods:
Standard on Sixteen person
Shelves:
None
Legs:
6" high legs are standard. Lockers without legs are available for a nominal charge
Catalog
Digitech™ Safety-View-Plus™ Box Lockers
4-Wide Wall Mount
Width Depth Opening Height Frame Height Openings per Group Tier KD Assembled colors

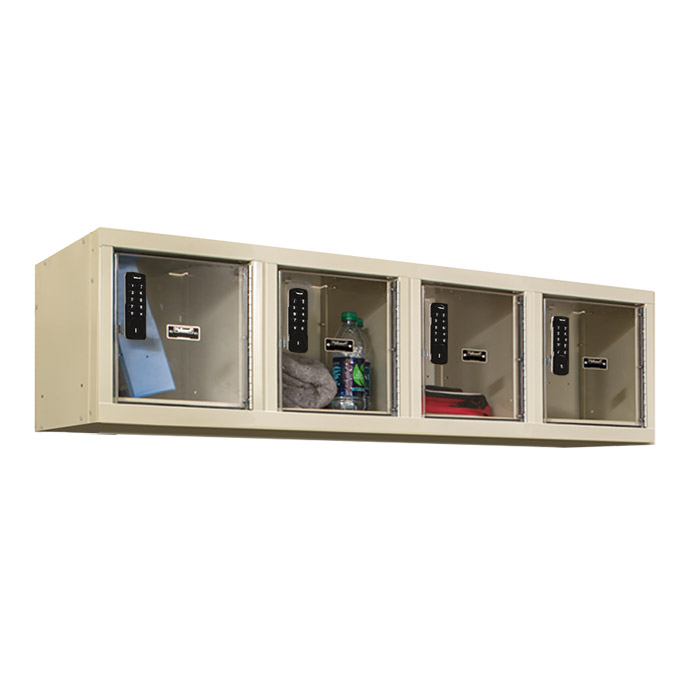

12 18 12 12/14-3/4 4 4-Wide Wall Mount UESVP1482-4WM UESVP1482-4WMA PT
Four Tier
Width Depth Opening Height Frame Height Grouping Openings per Group Tier KD Assembled colors
12 12 18 18/78 1-Wide 4 4 UESVP1228-4 UESVP1228-4A PT
12 12 18 18/78 3-Wide 12 4 UESVP3228-4 UESVP3228-4A PT

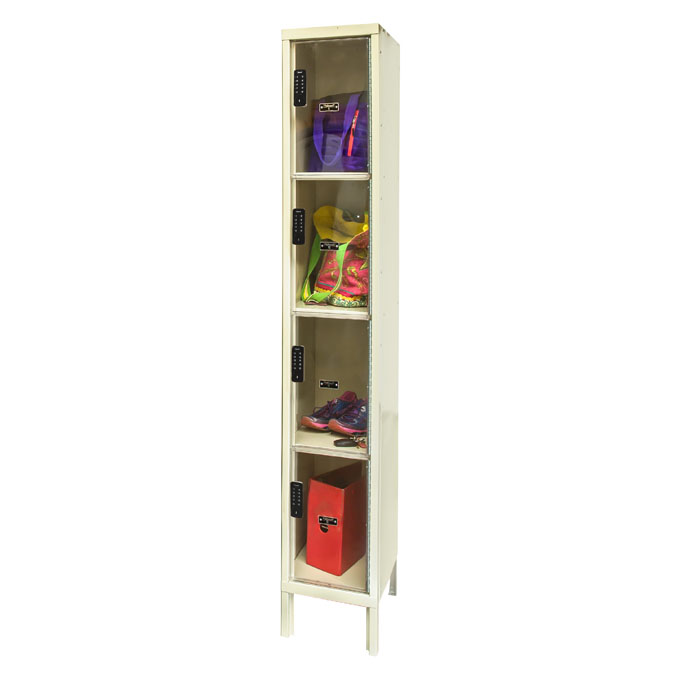

12 15 18 18/78 1-Wide 4 4 UESVP1258-4 UESVP1258-4A PT

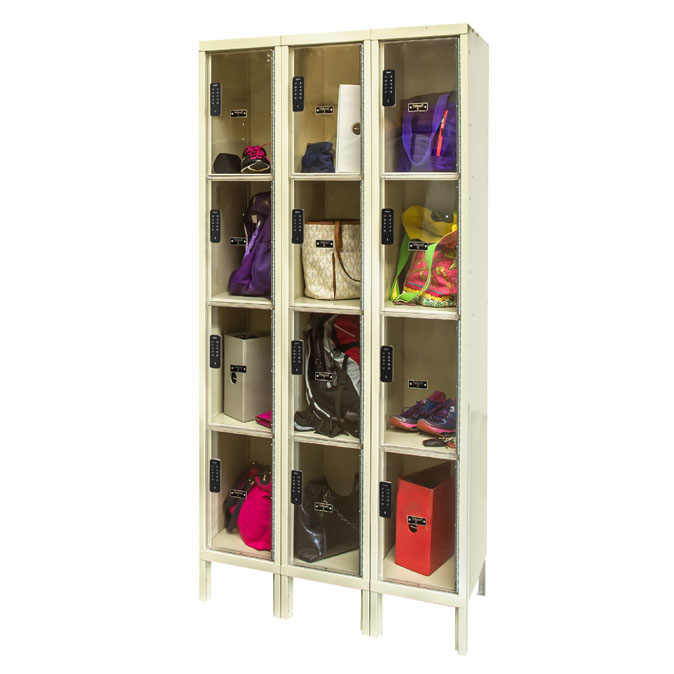

12 15 18 18/78 3-Wide 12 4 UESVP3258-4 UESVP3258-4A PT
12 18 18 18/78 1-Wide 4 4 UESVP1288-4 UESVP1288-4A PT
12 18 18 18/78 3-Wide 12 4 UESVP3288-4 UESVP3288-4A PT
12 18 18 18/78 3-Wide 12 4 UESVP3288-4A UESVP3288-4A PT
Six Tier
Width Depth Opening Height Frame Height Grouping Openings per Group Tier KD Assembled colors
12 12 12 12/78 1-wide 6 6 UESVP1228-6 UESVP1228-6A Tan, Light Gray
12 12 12 12/78 3-wide 18 6 UESVP3228-6 UESVP3228-6A Tan, Light Gray
12 15 12 12/78 1-wide 6 6 UESVP1258-6 UESVP1258-6A Tan, Light Gray

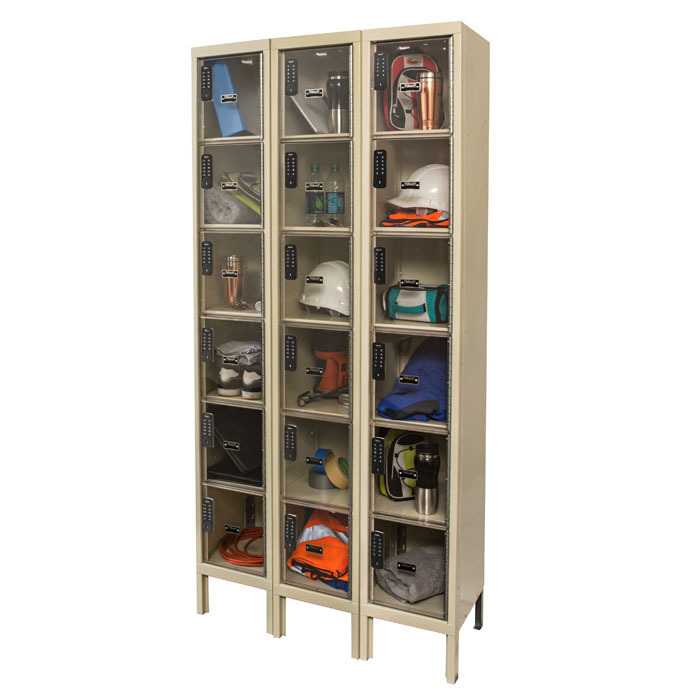

12 15 12 12/78 3-wide 18 6 UESVP3258-6 UESVP3258-6A Tan, Light Gray
12 18 12 12/78 1-wide 6 6 UESVP1288-6 UESVP1288-6A Tan, Light Gray
12 18 12 12/78 3-wide 18 6 UESVP3288-6 UESVP3288-6A Tan, Light Gray
12 18 12 12/78 3-wide 18 6 UESVP3288-6A UESVP3288-6A Tan, Light Gray
16-Person Unit
Width Depth Opening Height Frame Height Openings per Group Tier KD Assembled colors

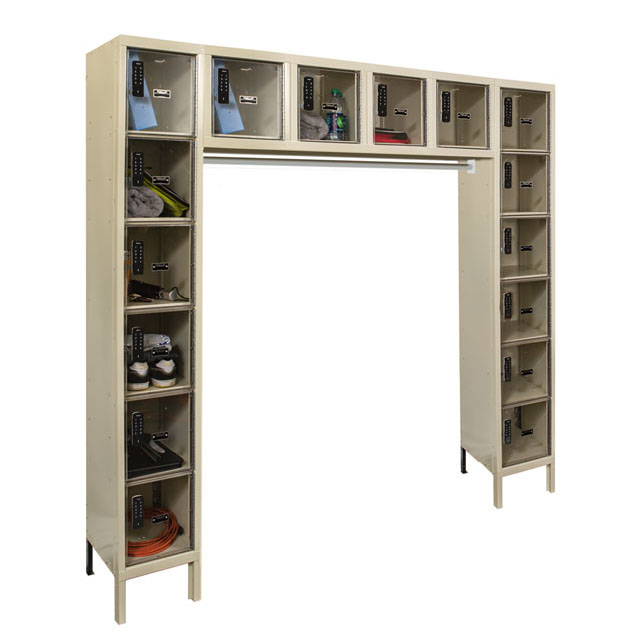

72 18 12 12/78 16 16-Person Unit UESVP1788-16 UESVP1788-16A PT
Colors

Color Selection:

#dad8b1
729 Tan (PT)
#d4d4d4
711 Light Gray (PL)
