Hallowell Guardrail has been designed, engineered and manufactured to the highest industry standards.
Each Hallowell Guardrail system is designed for your specific safety application. Guardrail components have an industry approved, safety-yellow powdercoated finish.
Welded Hardware

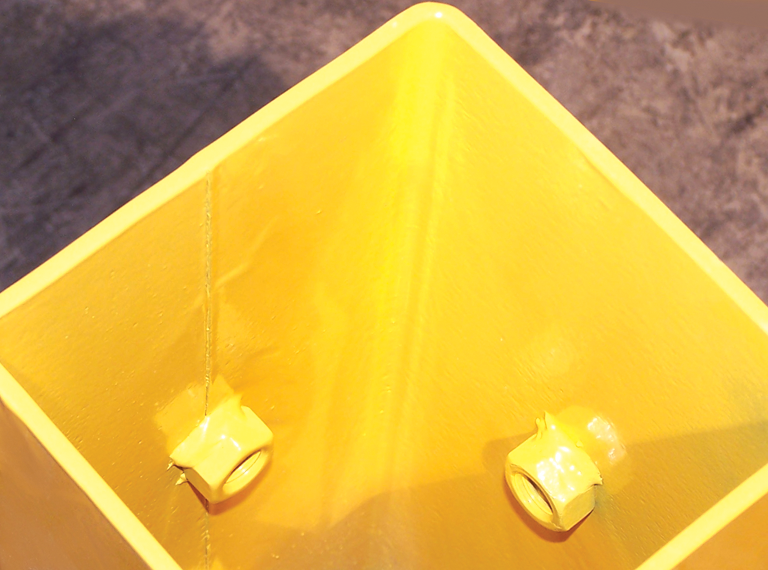

Welded Bolts

Fastening hardware is built into each column for efficient assembly.

Lift-Out Rail Adaptors
Lift-Out Rail Adaptors

Rails slide easily into Lift-Out Rail Adaptors which can be secured to any face of the column pillars - This system allows for custom configurations to be created with ease.

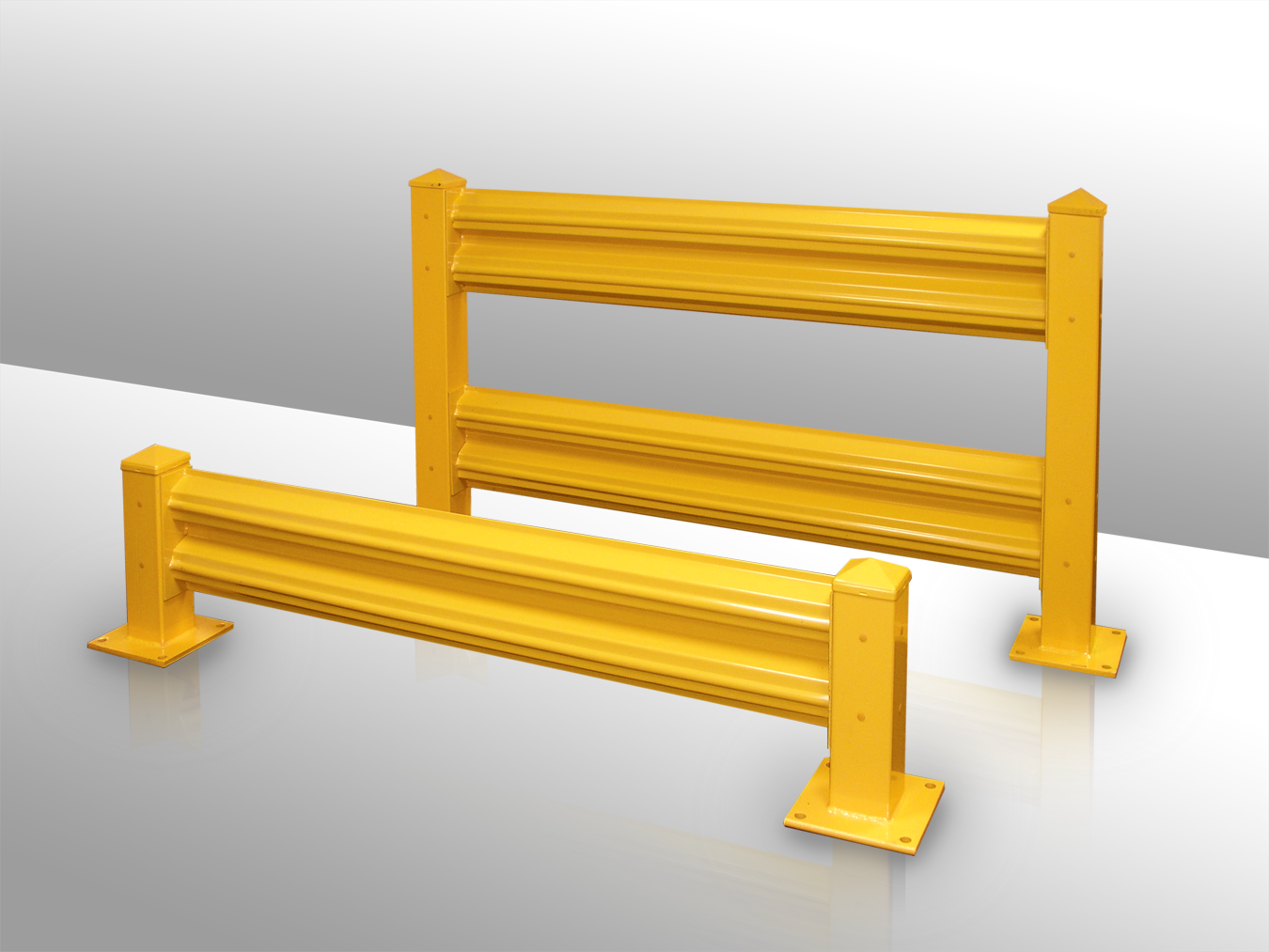

Product Overview

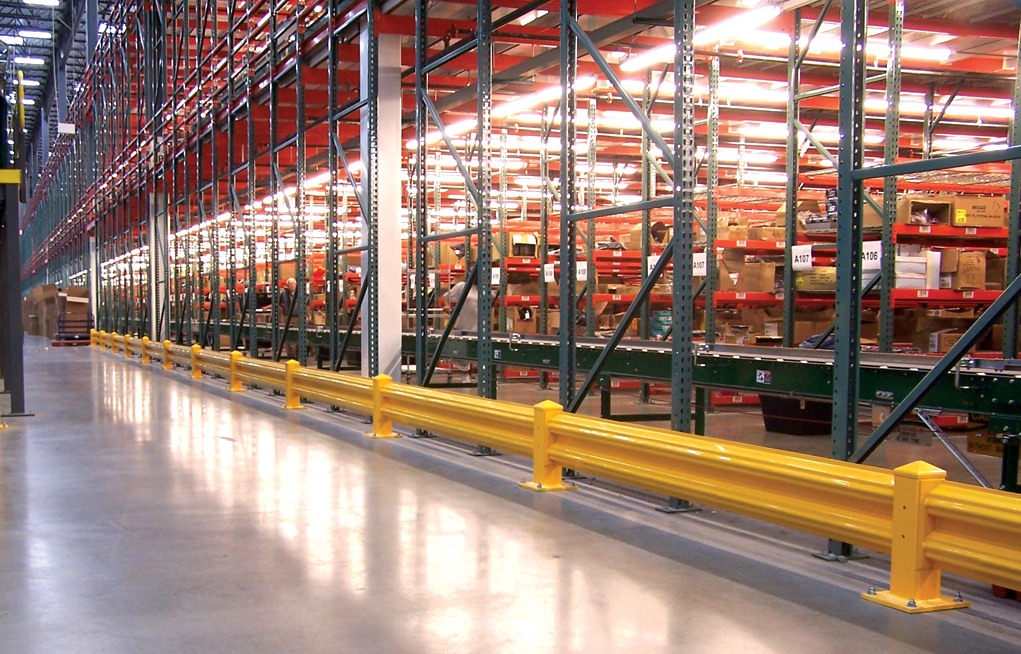

Single Rail Installation

Single Rail Installation

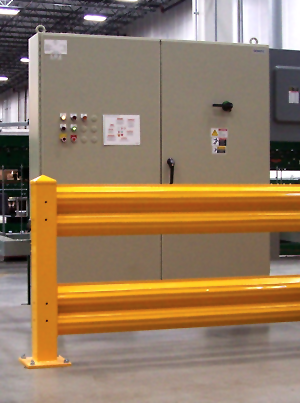

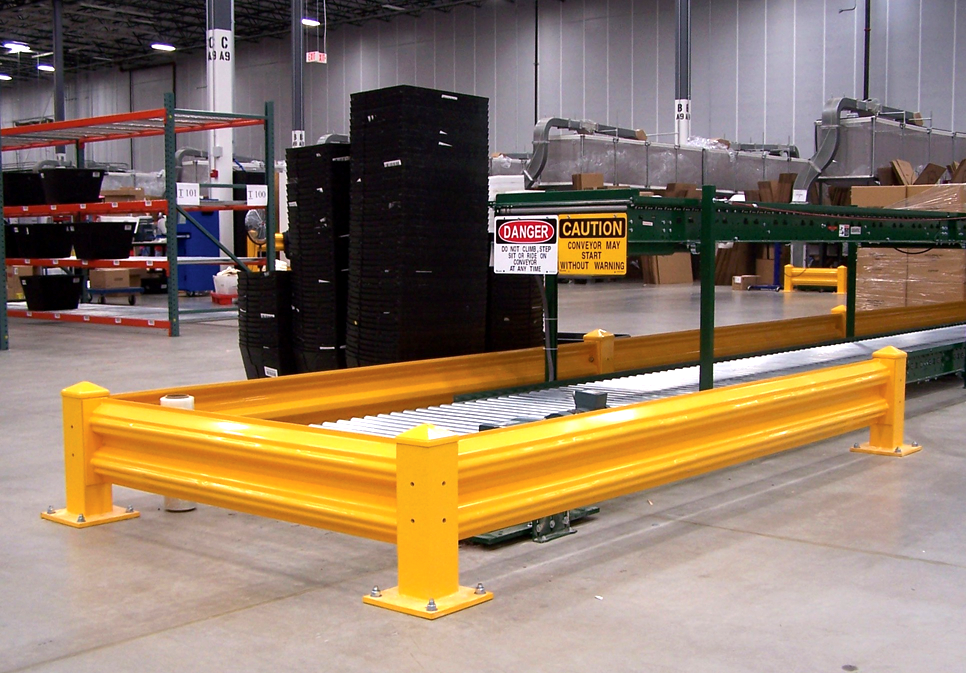

Double Rail Installation

Double Rail Installation

Designed to safeguard people, property and facility assets from accidents involving material handling equipment

Hallowell Guardrail has been designed, engineered, and manufactured to the highest industry standards using heavy gauge steel, and a unique integrated fastening system. This integrated system incorporates the fastening hardware as part of the column design so there will be no 'stripped' out connections. A properly installed and anchored guardrail system is designed to protect your personnel, property, and vital assets from a fully loaded forklift.

Each Hallowell Guardrail system is designed for your specific safety application. It is recommended to use 18" high for impact protection of facility assets including office in-plants, conveyor systems, mezzanines, shelving, and racking systems. The use of the 42" double rail system is recommended when protecting and separating pedestrians and personnel from your material handling equipment. These areas include walkways, bathrooms, entry and exit points, electrical panels, break areas, and exposed work stations.

  • Guardrail components have an industry approved, safety-yellow powder coat finish.
  • All guardrail sections are shipped with the required fasteners and other necessary hardware to properly install and anchor into your concrete floor.
Catalog
Description Nom. Length Height Weight Catalog #
  (Ft.) (in.) (Lbs.)
Rail 3'   22 GR-03
Rail 4'   26 GR-04
Rail 5'   35 GR-05
Rail 6'   41 GR-06
Rail 7'   46 GR-07
Rail 8'   53 GR-08
Rail 9'   60 GR-09
Rail 10'   65 GR-10
Post   18" 33 GRPA18-1
Post   42" 51 GRPA42-2
Lift-out rail Adapter (pair) 12   LOA
45 Degree Angle Bracket   6 45-BRACKET
*Drill Bit - - 0.1 17mm-Drill-Bit

* Required to install /anchor posts

Colors

Color Selection:

#fff202
Safety Yellow
