Galvanite™ Rust Resistant Lockers

Galvanite increases the estimated lifecycle by threefold!

lockers are fabricated from prime galvannealed (hot-dipped zinc-coated, annealed) sheet steel, then finished with an electrostatically applied high-grade powder coat finish providing double protection against corrosion.

304 Stainless Steel Recessed Handle

Deep-drawn 304 stainless steel recessed handle multi-point gravity-lift type latching.

Louvers

Louvers at the top and bottom provide discrete ventilation with an attractive appearance.

Single Point Latching

Single-point projecting friction catch door pull prepared for both padlock or built-in lock. No moving parts ensure quiet maintenance-free operation. All box door finger pulls are made of a super tough nylon material which includes an Antimicrobial agent

Galvanite

TOP: Galvanite™ cold rolled sheet steel with our powder coat finish after a 336-hour salt spray test.

BOTTOM: Common cold rolled sheet steel after a 336-hour salt spray test.

Overview
Catalog
Components
Color
Documents

Back to top

Product Overview

Long Lifespan

Galvanite lockers are fabricated from prime galvannealed (hot-dipped zinc coated,
annealed) sheet steel , then finished with an electrostatically applied high grade powder coat finish providing double protection against corrosion.

What is Galvanite?

Galvanite™ is List Industries' trademarked name for lockers and cabinets manufactured with galvannealed sheet steel components and finished with an electrostatically applied high-grade powder coat finish. Galvanneal and powder coat offers exceptional double protection against corrosion, even under the most adverse conditions. Tests indicate that galvanneal increases the estimated lifecycle threefold.

What is Galvanneal?

Galvanneal is the result of the combined processes of galvanizing (hot-dipped zinc coating) and annealing (heat treatment). Galvanneal does not flake when formed or stamped. The very fine matte finish acts like a primer that easily adheres to paint. These characteristics make galvannealed sheet steel ideal for steel lockers in high humidity, corrosion-prone areas.

Body/Frame Description:

24 gauge, galvannealed corrosion resistant sheet steel

Body/Frame:

KD

Body Styles:

Single, double, triple and six tier

Doors:

16 gauge, galvannealed corrosion resistant sheet steel louvered for added ventilation, 18 gauge for box doors

Handle:

HANDLE (wardrobe): Stainless steel recessed handle with multi-point gravity lift-type latching. Recessed handle protects finish from being marred by padlock.

HANDLE (box): Box lockers include a projecting single-point friction catch door pull prepared for both padlock or built-in lock. No moving parts insures quiet maintenance-free operation.

Hooks:

One double prong ceiling hook and two single hooks per single and double tier opening. One double ceiling hook for triple tier. No hooks for six tier lockers.

Coat Rods:

Available for single tier at a nominal cost

Shelves:

Hat shelf is included in single tier lockers.

Legs:

6” high legs are standard. Lockers without legs are available for a nominal charge.

Catalog

Galvanite™

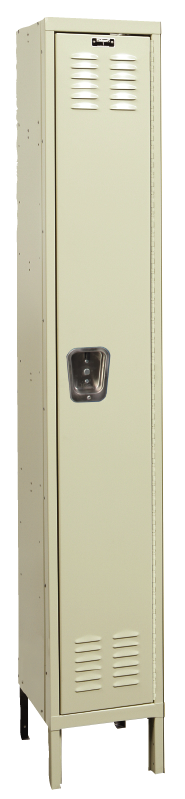

Single Tier
Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	KD	Assembled	colors
12	12	72	72/78	1-wide	1	1	U1228-1G	U1228-1GA	PT
12	12	72	72/78	3-wide	3	1	U3228-1G	U3228-1GA	PT
12	15	72	72/78	1-wide	1	1	U1258-1G	U1258-1GA	PT
12	15	72	72/78	3-wide	3	1	U3258-1G	U3258-1GA	PT
12	18	72	72/78	1-wide	1	1	U1288-1G	U1288-1GA	PT
12	18	72	72/78	3-wide	3	1	U3288-1G	U3288-1GA	PT

Double Tier
Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	KD	Assembled	colors
12	12	36	36/78	1-wide	2	2	U1228-2G	U1228-2GA	PT
12	12	36	36/78	3-wide	6	2	U3228-2G	U3228-2GA	PT
12	15	36	36/78	1-wide	2	2	U1258-2G	U1258-2GA	PT
12	15	36	36/78	3-wide	6	2	U3258-2G	U3258-2GA	PT
12	18	36	36/78	1-wide	2	2	U1288-2G	U1288-2GA	PT
12	18	36	36/78	3-wide	6	2	U3288-2G	U3288-2GA	PT

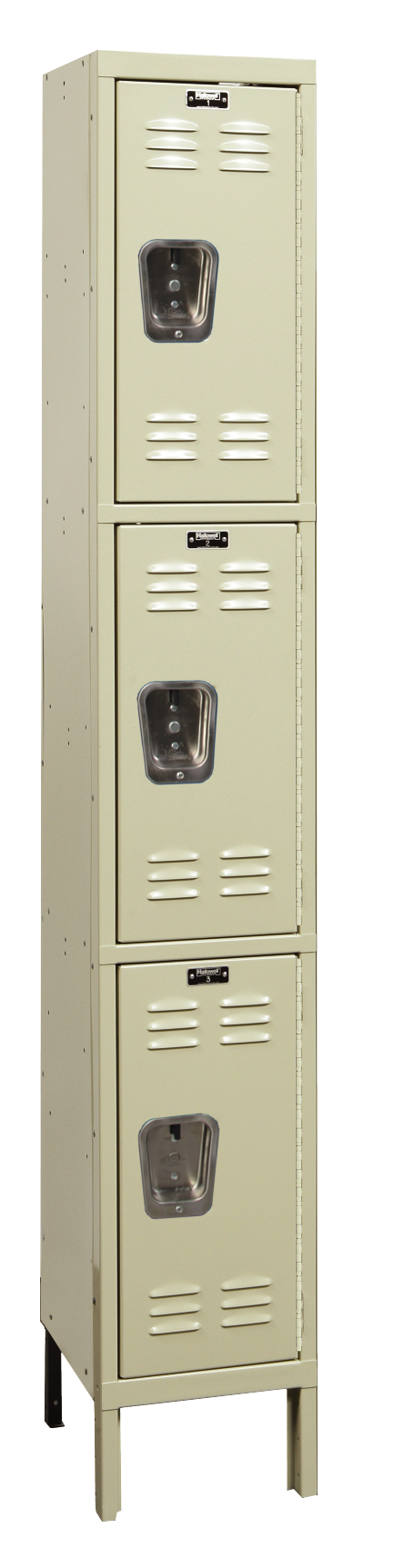

Triple Tier
Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	KD	Assembled	colors
12	12	24	24/78	1-wide	3	3	U1228-3G	U1228-3GA	PT
12	12	24	24/78	3-wide	9	3	U3228-3G	U3228-3GA	PT
12	15	24	24/78	1-wide	3	3	U1258-3G	U1258-3GA	PT
12	15	24	24/78	3-wide	9	3	U3258-3G	U3258-3GA	PT
12	18	24	24/78	1-wide	3	3	U1288-3G	U1288-3GA	PT
12	18	24	24/78	3-wide	9	3	U3288-3G	U3288-3GA	PT

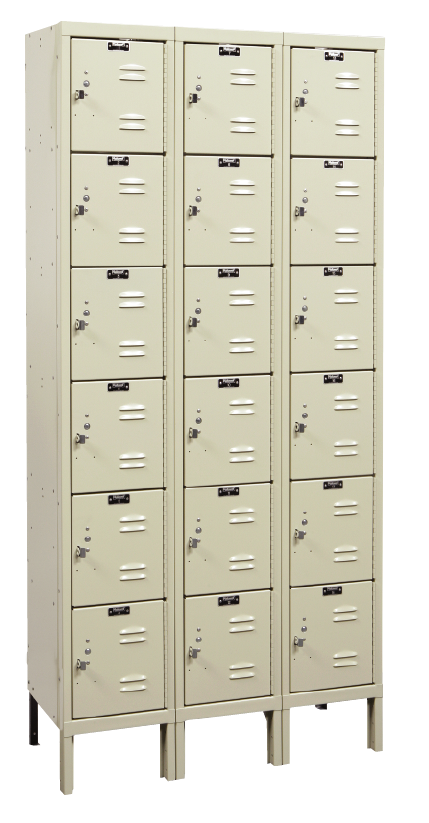

Six Tier
Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	KD	Assembled	colors
12	12	12	12/78	1-wide	6	6	U1228-6G	U1228-6GA	PT
12	12	12	12/78	3-wide	18	6	U3228-6G	U3228-6GA	PT
12	15	12	12/78	1-wide	6	6	U1258-6G	U1258-6GA	PT
12	15	12	12/78	3-wide	18	6	U3258-6G	U3258-6GA	PT
12	18	12	12/78	1-wide	6	6	U1288-6G	U1288-6GA	PT
12	18	12	12/78	3-wide	18	6	U3288-6G	U3288-6GA	PT
