THE PERFECT TRAFFIC SOLUTION SECURITY - TRAFFIC CONTROL - PORTABILITY
Five Sizes to choose from. Connect multiple gates to together for wider applications
Simplified, patented pressure lock system
Pressure Lock

Simplified, patented pressure lock system

Compact, fold-up size, and heavy-duty swivel casters make moving and storage easy.
Easy to move

Compact, fold-up size, and heavy-duty swivel casters make moving and storage easy.

Product Overview

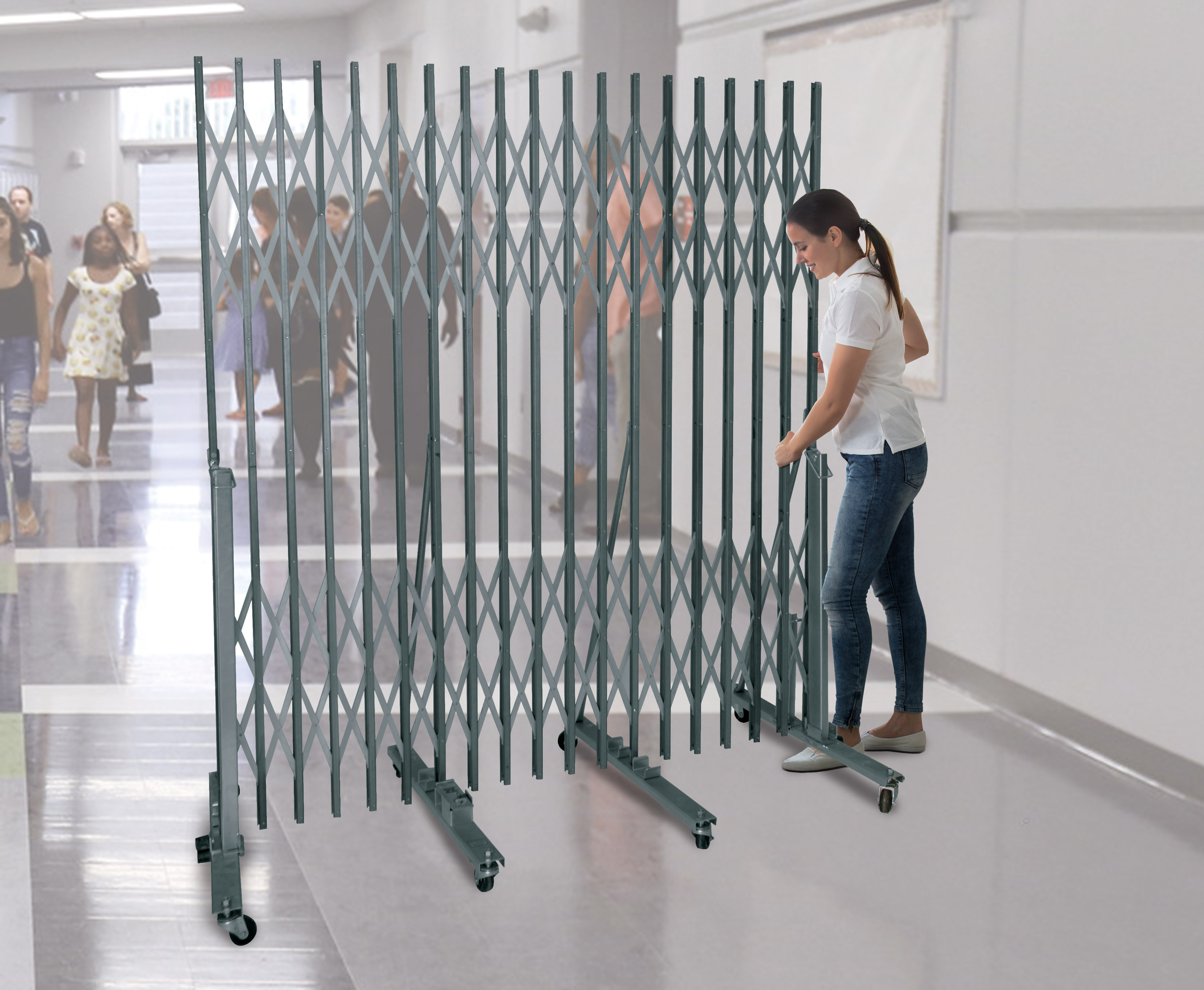

Portable Foot-Traffic Gates

Five Sizes to choose from

connect multiple gates together for wider applications.

Features:
In Stock for shipment within 5 days of receipt of order
Quick and easy installation. Install between two walls instantly without anchors to walls or floor
Simplified, patented pressure lock system
Floor anchors are not required but are available for special installations

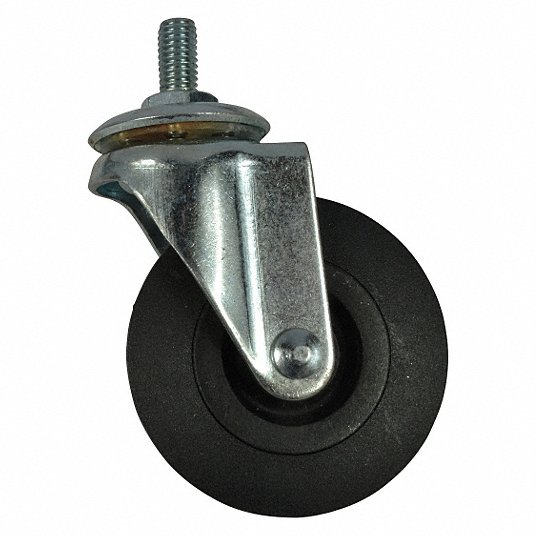

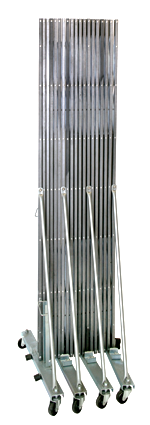

Compact, fold-up size and heavy duty swivel casters make moving and storage easy
Plated finish
Padlock hasp is standard
Cylinder locks are available for additional security
Two or more gates can be joined together for large expanse
Catalog

model

For Openings

Collapsed Size

Height

Weight (lbs)







78 1/2"



P601-09

6' - 9'

19" x 30"

197

P601-12

7' - 12'

24" x 30"

254

P601-15

11' - 15'

30" x 30"

311

P601-18

13' - 18'

30" x 30"

374

PG-CL

Cylinder Locks

PG-FAA

Floor Anchors

PG-A

Additional Anchors

Here's how the exclusive Superior® Pressure Lock System works:
1. Raise unit retainer channel to vertical position and secure
2. Extend gate until rubber bumpers touch both walls
3. Lower the male lock channel (with pin) until it rests on carriage channels within guides and locking bracket.

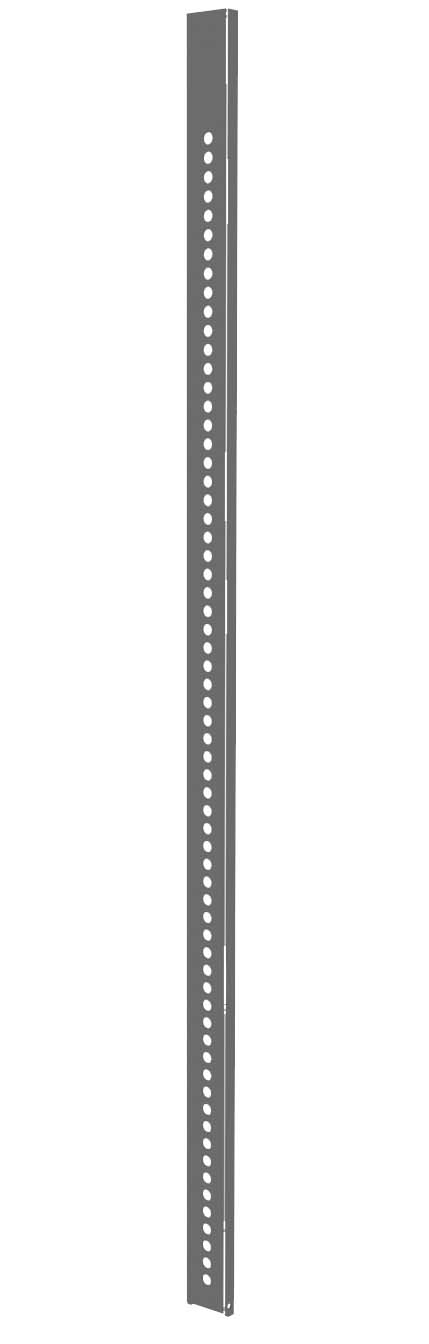

4. Lower female lock channel (with adjustment holes) until it rests within the male lock channel with pin. Pin need not engage a hole in female lock channel.
5. Raise both channels until pin engages the hole immediately to the right. Applying moderate pressure, push both channels down until they rest within guides and locking bracket. Lock in position.

Colors

Color Selection:

Plated Finish
Plated Finish
