ValueMax lockers are the perfect solution for limited budget projects.
ValueMax Economy KD Lockers constructed of 16-gauge steel doors and 24-gauge steel body panels offer exceptional value, quality, and finish at an affordable price.
Louvers for discrete ventilation
Louvers

Louvers at the top and bottom provide discrete ventilation with an attractive appearance.

Single Point Latching

Single-point projecting friction catch door pull prepared for both padlock or built-in lock. No moving parts ensure quiet maintenance-free operation. All box door finger pulls are made of a super tough nylon material which includes an Antimicrobial agent

Full Length Piano Hinge
Piano Hinge

A full-length piano hinge runs from the top to the bottom of the door and provides sturdy and smooth door operation.

Product Overview

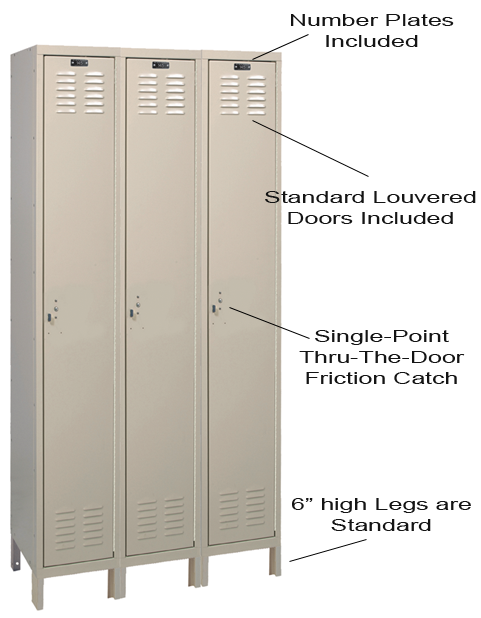

ValueMax Standard Options

ValueMax Standard Options

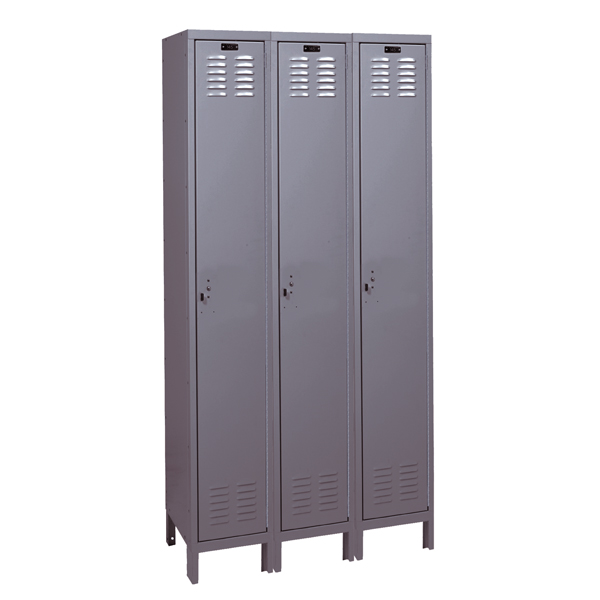

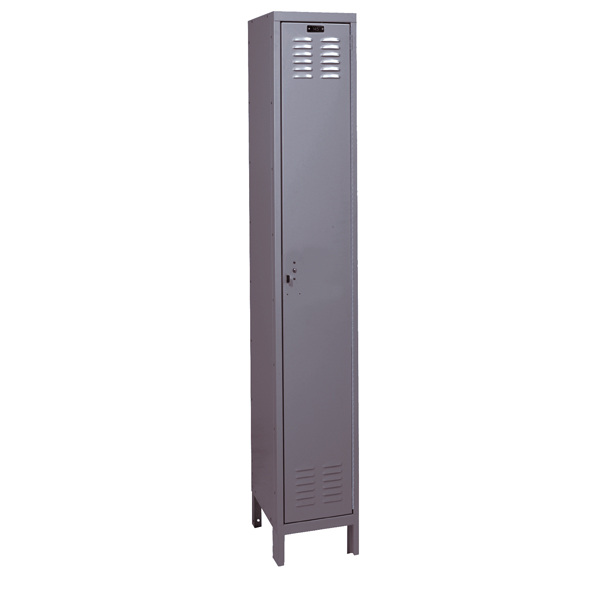

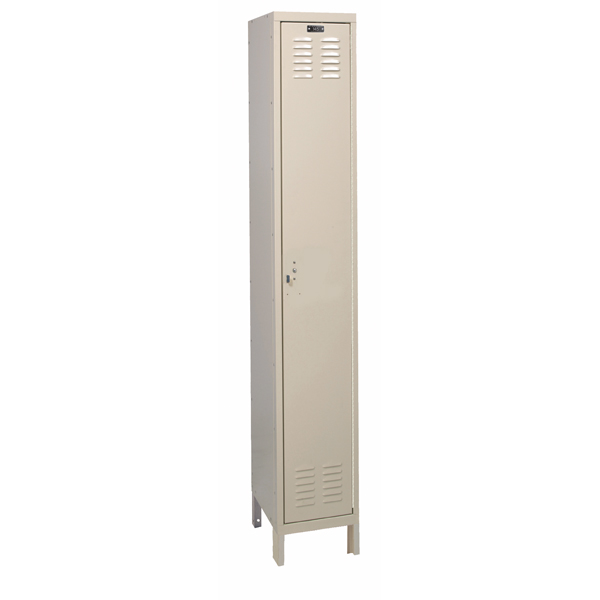

Single Tier

Single Tier

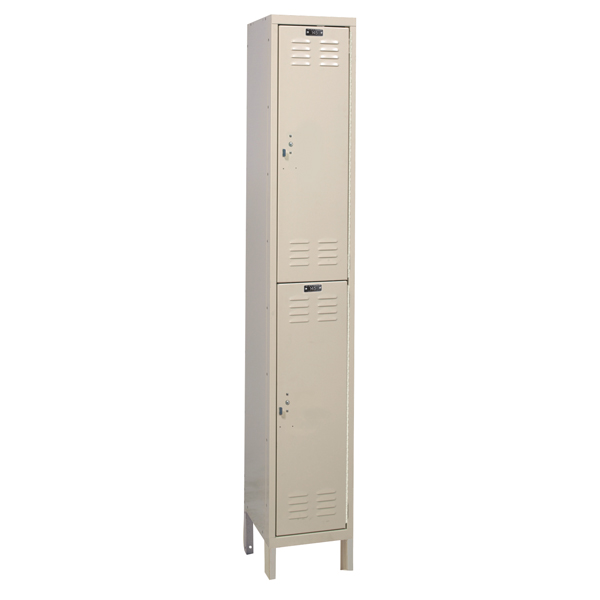

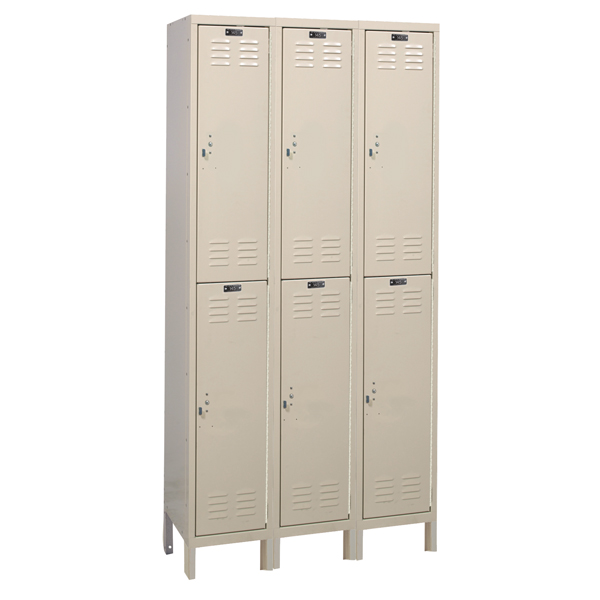

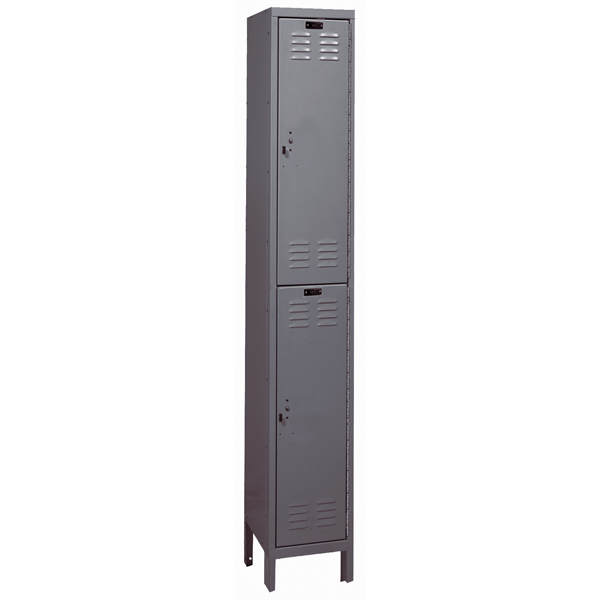

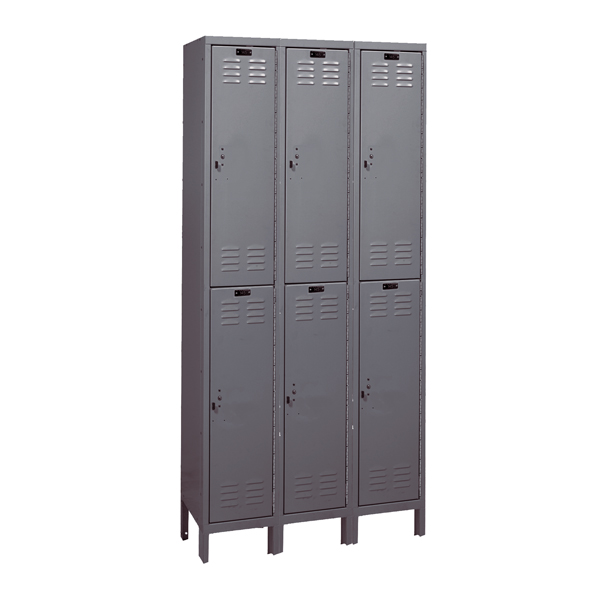

Double Tier

Double Tier

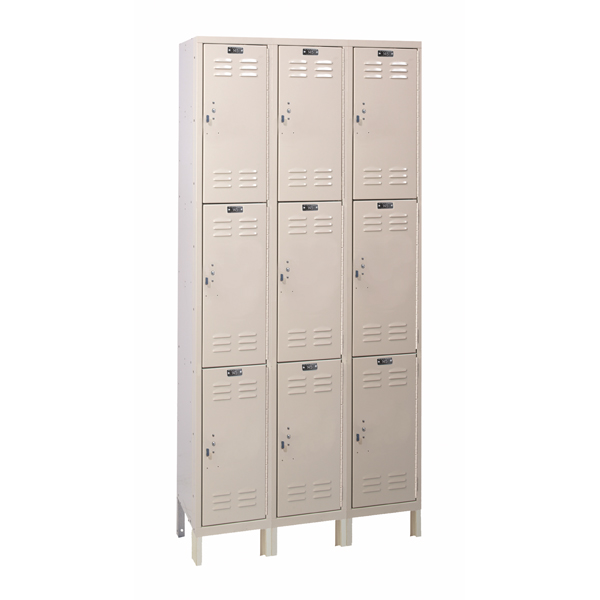

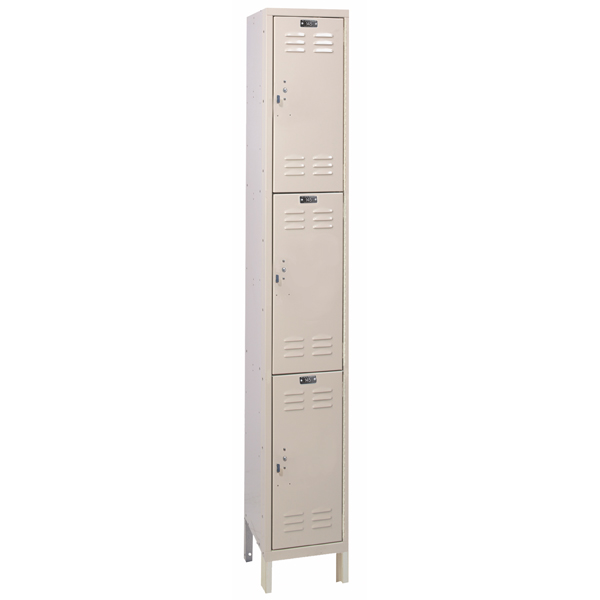

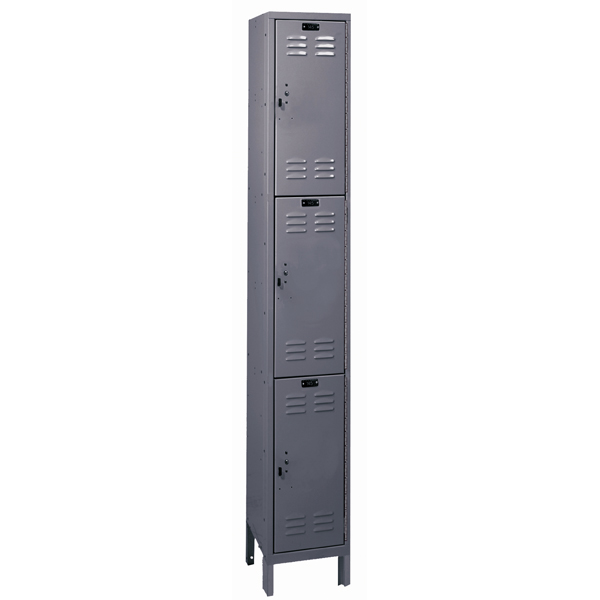

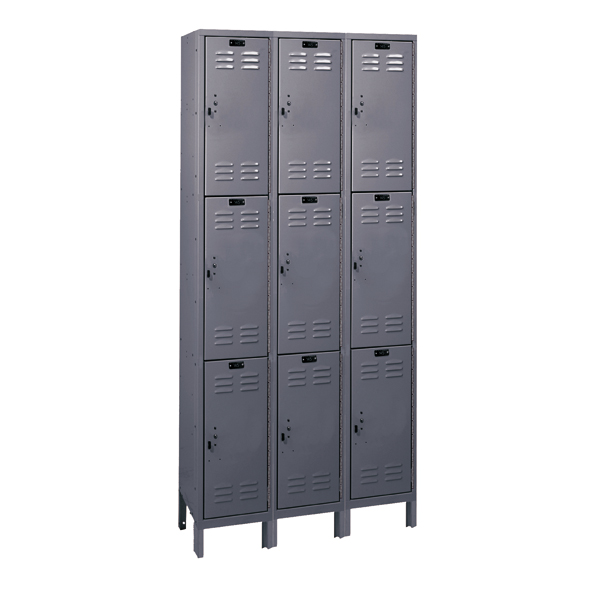

Triple Tier

Triple Tier

Exceptional Value, Quality and Finish - at an Affordable Price.

These lockers represent an exceptional value, in quality and finish at an affordable price.

ValueMax™ lockers are the perfect solution for limited budget projects.

Ventilated doors have full-length piano hinges to prevent pinched fingers and include friction catch door pulls for secure storage.

Available in three depths to fit nearly any hallway or locker room.

Body/Frame Description:
Knock-down, 24 gauge
Body/Frame:
KD
Body Styles:
Single, double and triple tier
Doors:
16 gauge, louvered for added ventilation
Handle:

Single-point thru-the-door friction catch door pull designed for use with a padlock

Hinges:
Continuous piano type
Hooks:
One double prong ceiling hook and two single hooks per single and double tier opening. One double ceiling hook for triple tier.
Coat Rods:
Available for single tier at a nominal cost
Shelves:
Hat shelf is included in single tier lockers.
Legs:
6" high legs are standard. Lockers without legs are available for a nominal charge.
Catalog
ValueMax™ Economy Lockers
Single Tier
Width Depth Opening Height Frame Height Grouping Openings per Group Tier KD Assembled colors
12 12 72 72/78 1-wide 1 1 UH1228-1 UH1228-1A Tan, Dark Gray
12 12 72 72/78 3-wide 3 1 UH3228-1 UH3228-1A Tan, Dark Gray
12 15 72 72/78 1-wide 1 1 UH1258-1 UH1258-1A Tan, Dark Gray
12 15 72 72/78 3-wide 3 1 UH3258-1 UH3258-1A Tan, Dark Gray
12 18 72 72/78 1-wide 1 1 UH1288-1 UH1288-1A Tan, Dark Gray
12 18 72 72/78 3-wide 3 1 UH3288-1 UH3288-1A Tan, Dark Gray
Double Tier
Width Depth Opening Height Frame Height Grouping Openings per Group Tier KD Assembled colors
12 12 36 36/78 1-wide 2 2 UH1228-2 UH1228-2A Tan, Dark Gray
12 12 36 36/78 3-wide 6 2 UH3228-2 UH3228-2A Tan, Dark Gray
12 15 36 36/78 1-wide 2 2 UH1258-2 UH1258-2A Tan, Dark Gray
12 15 36 36/78 3-wide 6 2 UH3258-2 UH3258-2A Tan, Dark Gray
12 18 36 36/78 1-wide 2 2 UH1288-2 UH1288-2A Tan, Dark Gray
12 18 36 36/78 3-wide 6 2 UH3288-2 UH3288-2A Tan, Dark Gray
Triple Tier
Width Depth Opening Height Frame Height Grouping Openings per Group Tier KD Assembled colors
12 12 24 24/78 1-wide 3 3 UH1228-3 UH1228-3A Tan, Dark Gray
12 12 24 24/78 3-wide 9 3 UH3228-3 UH3228-3A Tan, Dark Gray
12 15 24 24/78 1-wide 3 3 UH1258-3 UH1258-3A Tan, Dark Gray
12 15 24 24/78 3-wide 9 3 UH3258-3 UH3258-3A Tan, Dark Gray
12 18 24 24/78 1-wide 3 3 UH1288-3 UH1288-3A Tan, Dark Gray
12 18 24 24/78 3-wide 9 3 UH3288-3 UH3288-3A Tan, Dark Gray
Colors

Color Selection:

#dad8b1
729 Tan (PT)
#7a918b
725 Dark Gray (HG)
