Heavy-Duty Ventilated (HDV) KD Lockers - Stock

More from: Wardrobe Lockers Lockers

Heavy-Duty Ventilated (HDV) knock-down lockers are the perfect solution.

HDV Lockers give you large capacity, ventilated storage, with heavy-duty construction at a price that fits your budget.

304 Stainless Steel Recessed Handle

Deep-drawn 304 stainless steel recessed handle multi-point gravity-lift type latching.

Single Point Latching

Single-point projecting friction catch door pull prepared for both padlock or built-in lock. No moving parts ensure quiet maintenance-free operation. All box door finger pulls are made of a super tough nylon material which includes an Antimicrobial agent

Diamond Perforated Ventilation

Athletic-type lockers use diamond perforated doors and sides to ensure proper ventilation.

Piano Hinge

A full-length piano hinge runs from the top to the bottom of the door and provides sturdy and smooth door operation.

Overview
Catalog
Components
Color
Documents

Back to top

Product Overview

Affordability And Functionality In One Locker

Ventilated Locker Features:

Ventilated doors and sides
The heavy gauge door body
Large capacity sizes available
Strength and ventilation in one practical locker

Heavy-Duty Ventilated (HDV) knock-down lockers are the perfect solution when budget restrictions prevent the use of fully-framed all-welded lockers.

Body/Frame Description:

Knock-down, 16 gauge body with 18 gauge back. Sides are diamond perforated for maximum ventilation

Body/Frame:

KD

Body Styles:

Single, double and six tier

Doors:

14 gauge, diamond perforated for maximum ventilation

Handle:

HANDLE (wardrobe): Stainless steel recessed handle with multi-point gravity lift-type latching. Recessed handle protects finish from being marred by padlock.

HANDLE (box): Box lockers include a projecting single-point friction catch door pull prepared for both padlock or built-in lock. No moving parts insures quiet maintenance-free operation.

Hinges:

Continuous piano type

Hooks:

One double prong ceiling hook and two single hooks per single and double tier locker opening. One double ceiling hook for triple tier.

Coat Rods:

Available for single tier at a nominal cost

Shelves:

Hat shelf is included in single tier lockers.

Legs:

6" high legs are standard. Lockers without legs are available for a nominal charge.

Catalog

HDV Stock Lockers

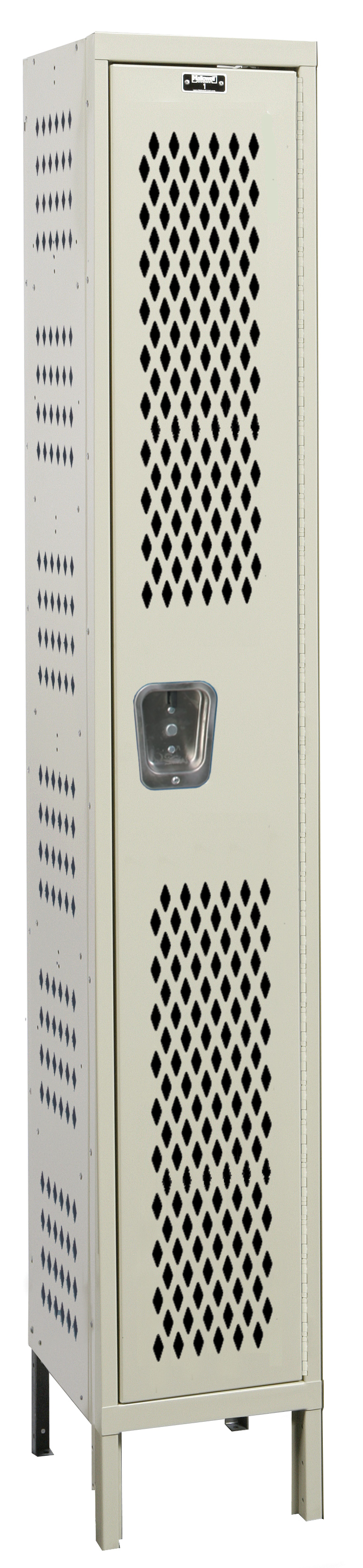

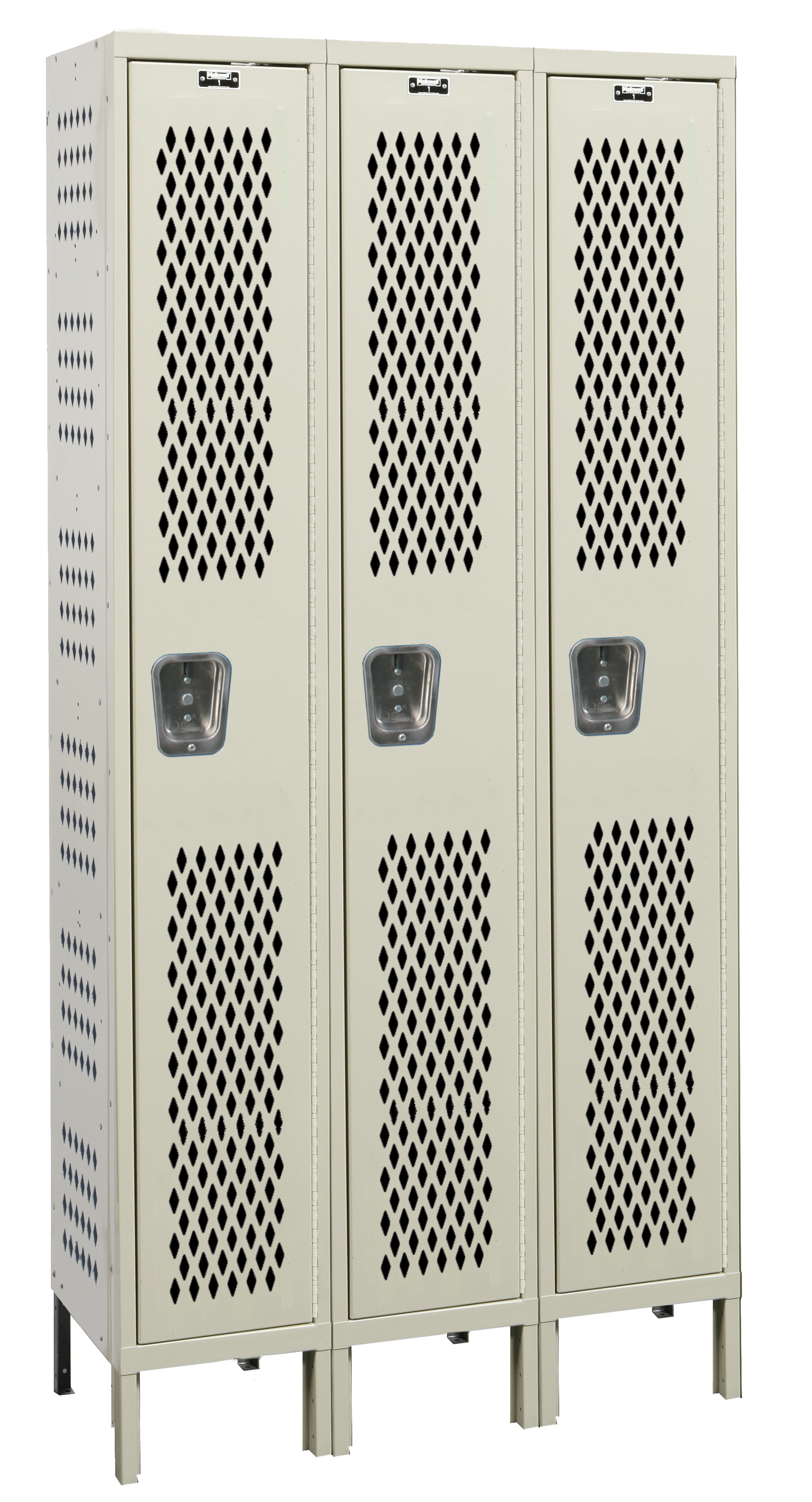

Single Tier
Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	KD	Assembled	colors
12	12	72	72/78	1-wide	1	1	U1228-1HDV	U1228-1HV-A	PT,-HG
12	12	72	72/78	3-wide	3	1	U3228-1HDV	U3228-1HV-A	PT,-HG

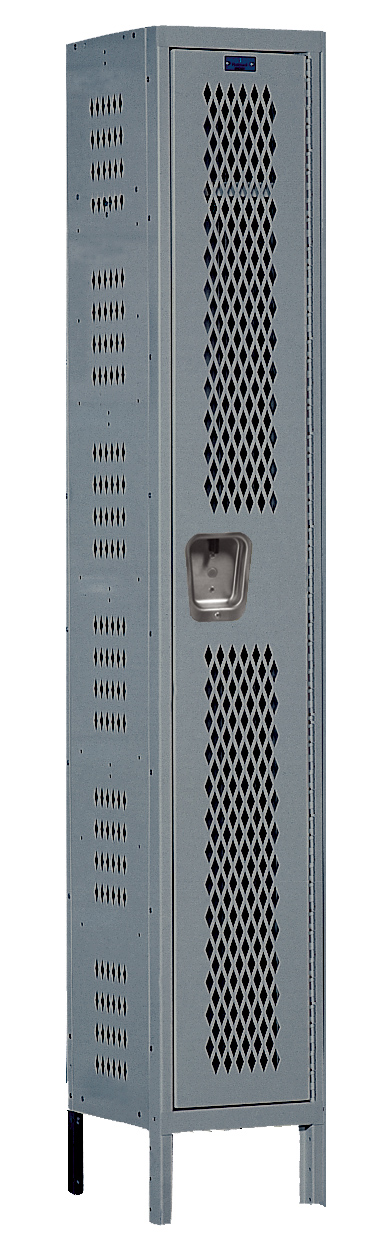

12	15	72	72/78	1-wide	1	1	U1258-1HDV	U1258-1HV-A	PT,-HG

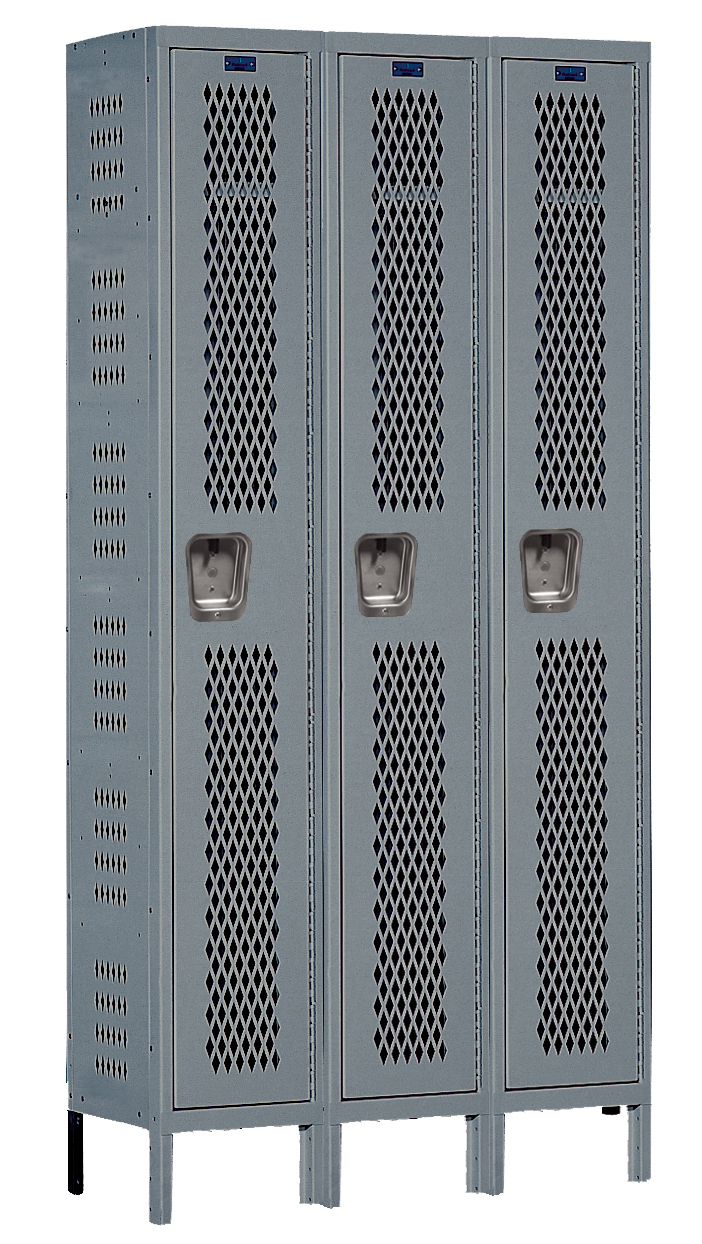

12	15	72	72/78	3-wide	3	1	U3258-1HDV	U3258-1HV-A	PT,-HG
12	18	72	72/78	1-wide	1	1	U1288-1HDV	U1288-1HV-A	PT,-HG
12	18	72	72/78	3-wide	3	1	U3288-1HDV	U3288-1HV-A	PT,-HG
15	15	72	72/78	1-wide	1	1	U1558-1HDV	U1558-1HV-A	PT,-HG
15	15	72	72/78	3-wide	3	1	U3558-1HDV	U3558-1HV-A	PT,-HG
15	18	72	72/78	1-wide	1	1	U1588-1HDV	U1588-1HV-A	PT,-HG
15	18	72	72/78	3-wide	3	1	U3588-1HDV	U3588-1HV-A	PT,-HG
15	21	72	72/78	1-wide	1	1	U1518-1HDV	U1518-1HV-A	PT,-HG
15	21	72	72/78	3-wide	3	1	U3518-1HDV	U3518-1HV-A	PT,-HG
18	18	72	72/78	1-wide	1	1	U1888-1HDV	U1888-1HV-A	PT,-HG
18	18	72	72/78	3-wide	3	1	U3888-1HDV	U3888-1HV-A	PT,-HG
18	21	72	72/78	1-wide	1	1	U1818-1HDV	U1818-1HV-A	PT,-HG
18	21	72	72/78	3-wide	3	1	U3818-1HDV	U3818-1HV-A	PT,-HG

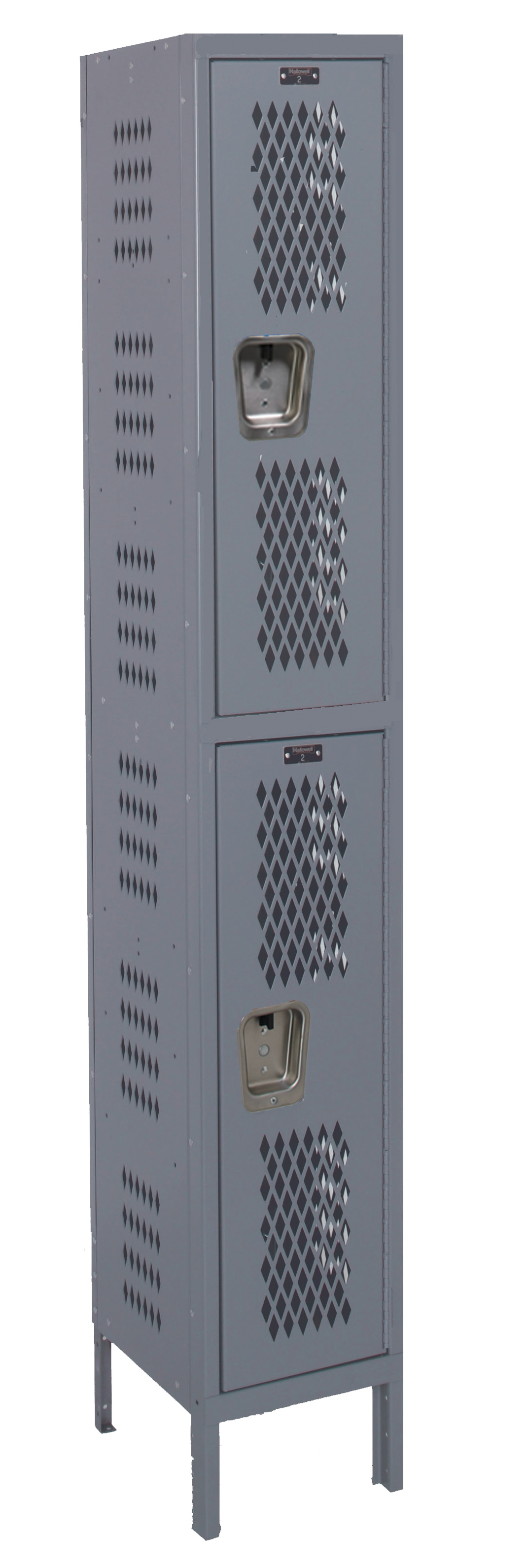

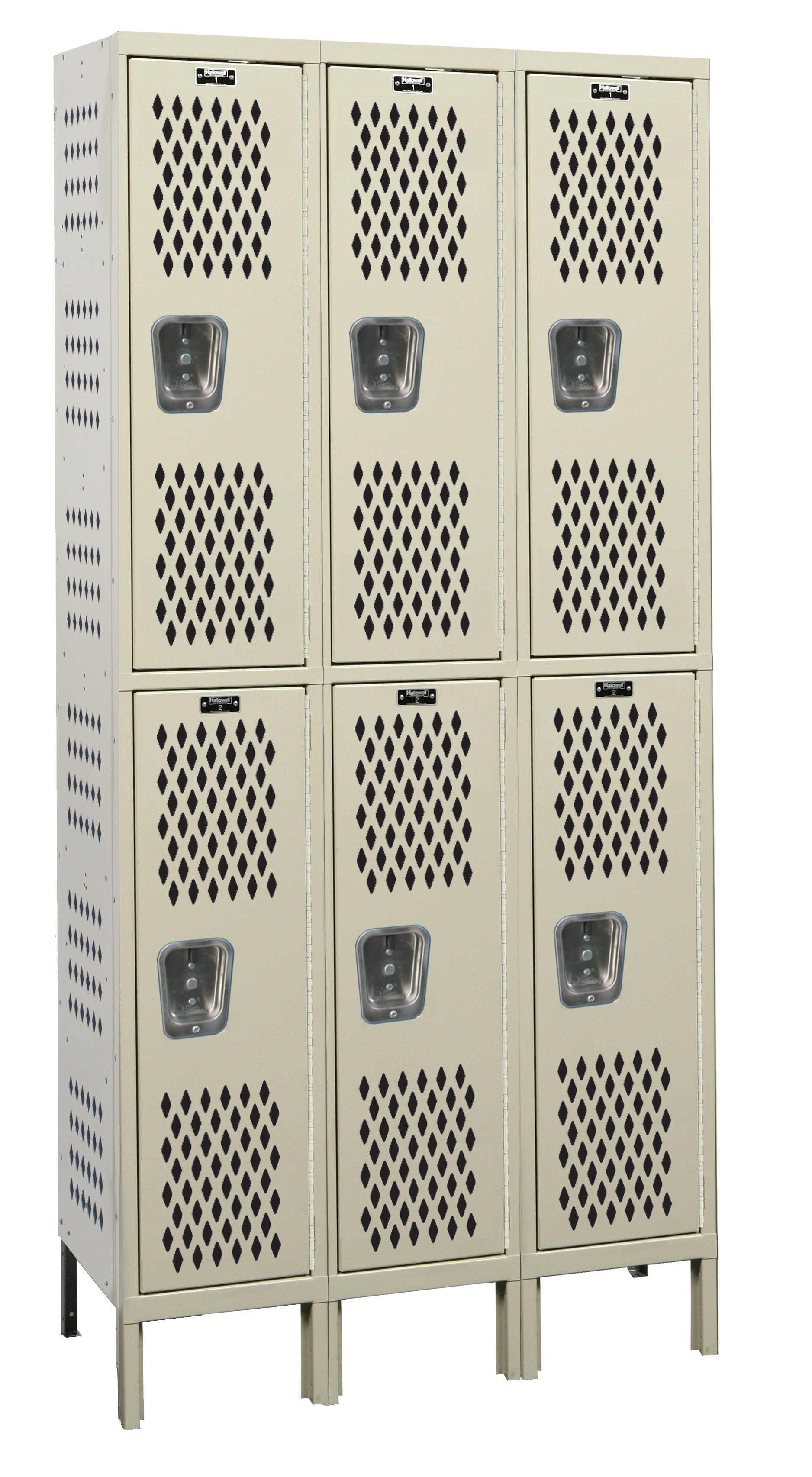

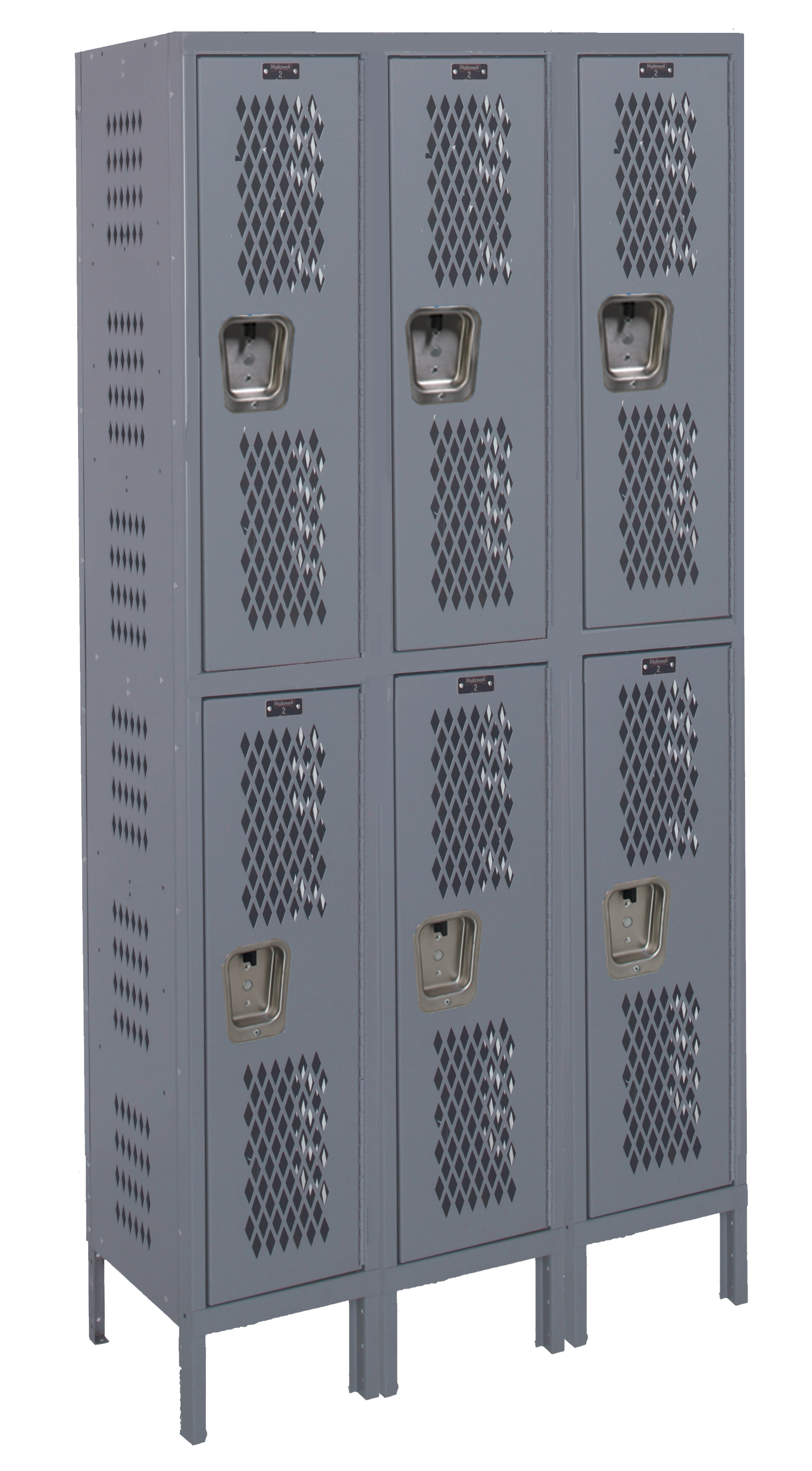

Double Tier
Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	KD	Assembled	colors
12	12	36	36/78	1-wide	2	2	U1228-2HDV	U1228-2HV-A	PT,-HG
12	12	36	36/78	3-wide	6	2	U3228-2HDV	U3228-2HV-A	PT,-HG

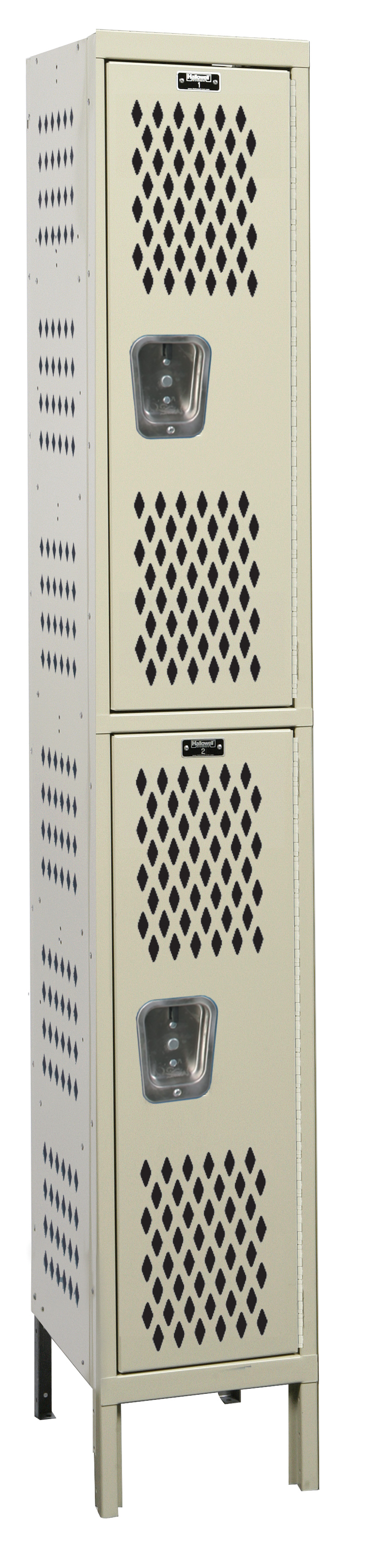

12	15	36	36/78	1-wide	2	2	U1258-2HDV	U1258-2HV-A	PT,-HG
12	15	36	36/78	3-wide	6	2	U3258-2HDV	U3258-2HV-A	PT,-HG
12	18	36	36/78	1-wide	2	2	U1288-2HDV	U1288-2HV-A	PT,-HG
12	18	36	36/78	3-wide	6	2	U3288-2HDV	U3288-2HV-A	PT,-HG
15	15	36	36/78	1-wide	2	2	U1558-2HDV	U1558-2HV-A	PT,-HG
15	15	36	36/78	3-wide	6	2	U3558-2HDV	U3558-2HV-A	PT,-HG
15	18	36	36/78	1-wide	2	2	U1588-2HDV	U1588-2HV-A	PT,-HG
15	18	36	36/78	3-wide	6	2	U3588-2HDV	U3588-2HV-A	PT,-HG
15	21	36	36/78	1-wide	2	2	U1518-2HDV	U1518-2HV-A	PT,-HG
15	21	36	36/78	3-wide	6	2	U3518-2HDV	U3518-2HV-A	PT,-HG
18	18	36	36/78	1-wide	2	2	U1888-2HDV	U1888-2HV-A	PT,-HG
18	18	36	36/78	3-wide	6	2	U3888-2HDV	U3888-2HV-A	PT,-HG
18	21	36	36/78	1-wide	2	2	U1818-2HDV	U1818-2HV-A	PT,-HG
18	21	36	36/78	3-wide	6	2	U3818-2HDV	U3818-2HV-A	PT,-HG

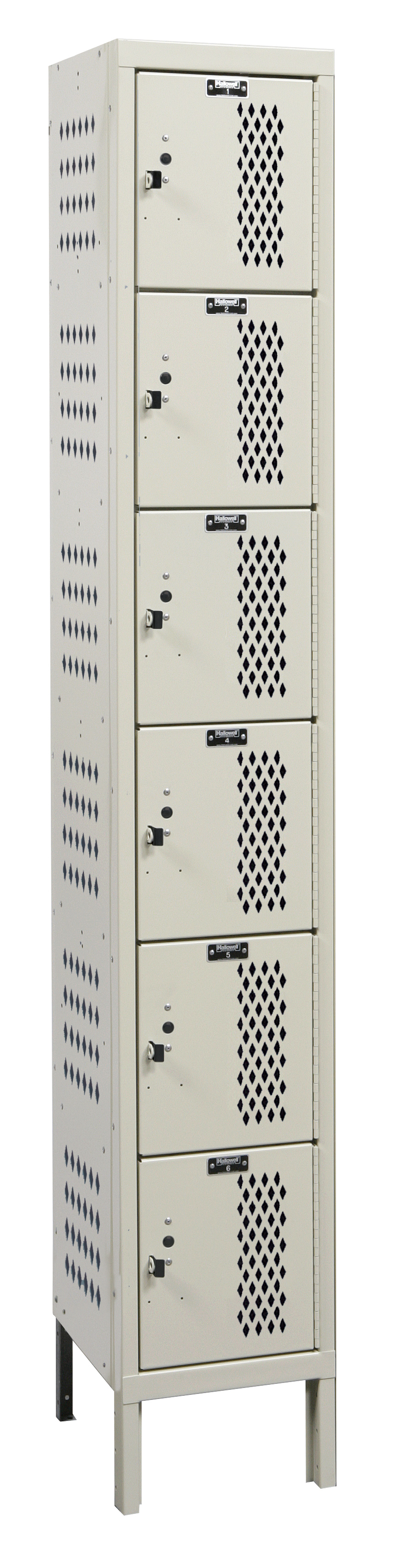

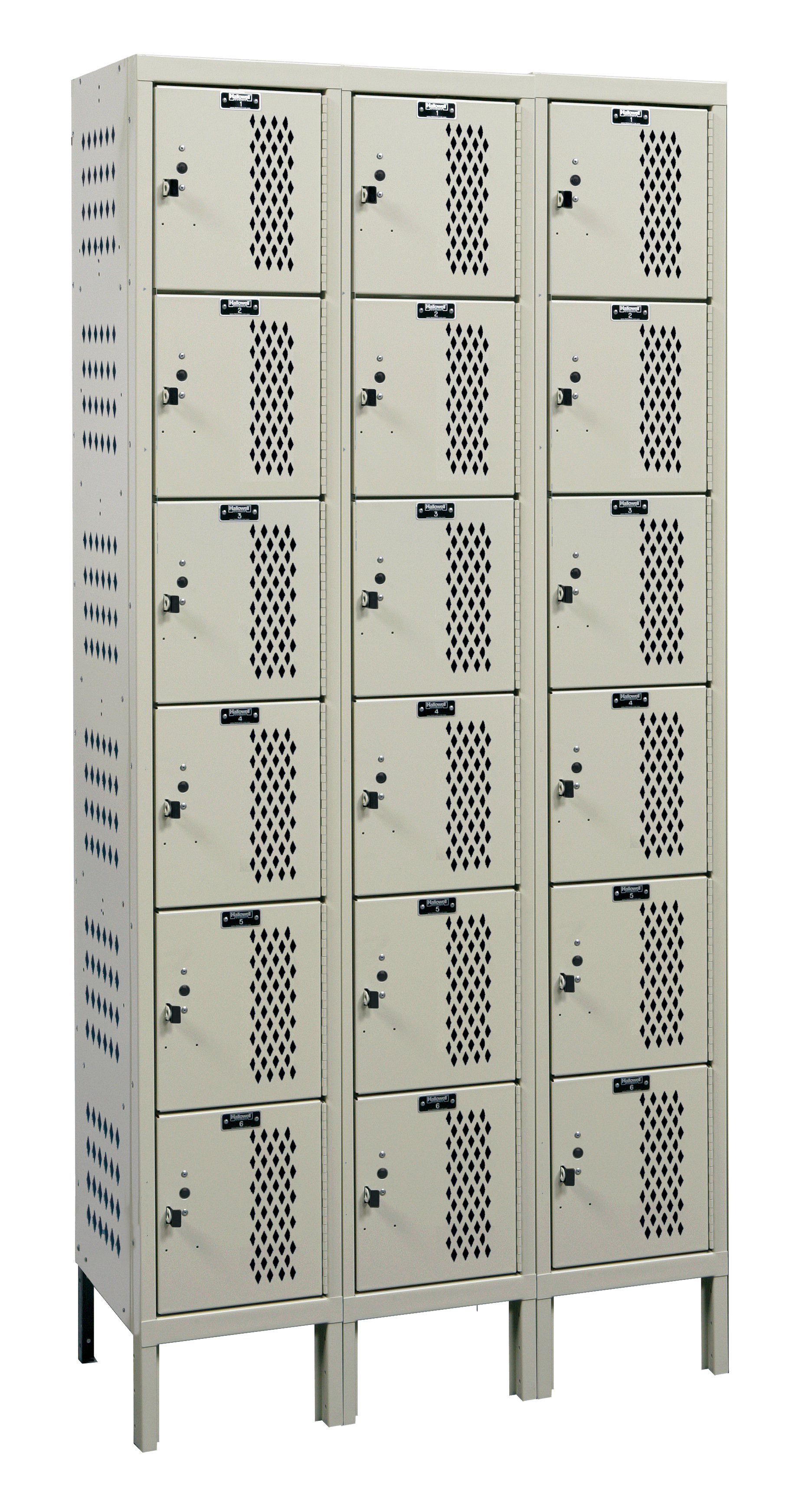

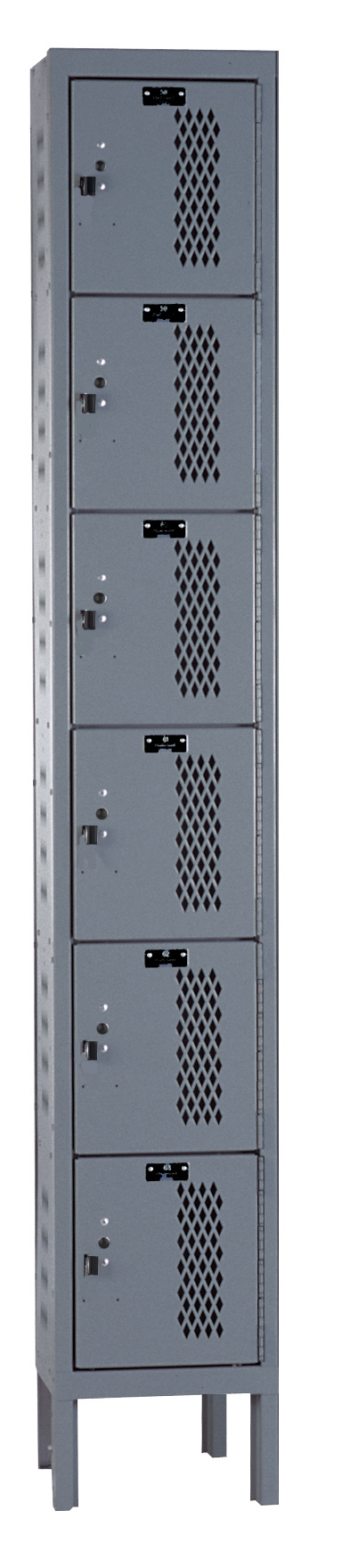

Six Tier
Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	KD	Assembled	colors
12	12	12	12/78	1-wide	6	6	U1228-6HDV	U1228-6HV-A	PT,-HG
12	12	12	12/78	3-wide	8	6	U3228-6HDV	U3228-6HV-A	PT,-HG
12	15	12	12/78	1-wide	6	6	U1258-6HDV	U1258-6HV-A	PT,-HG

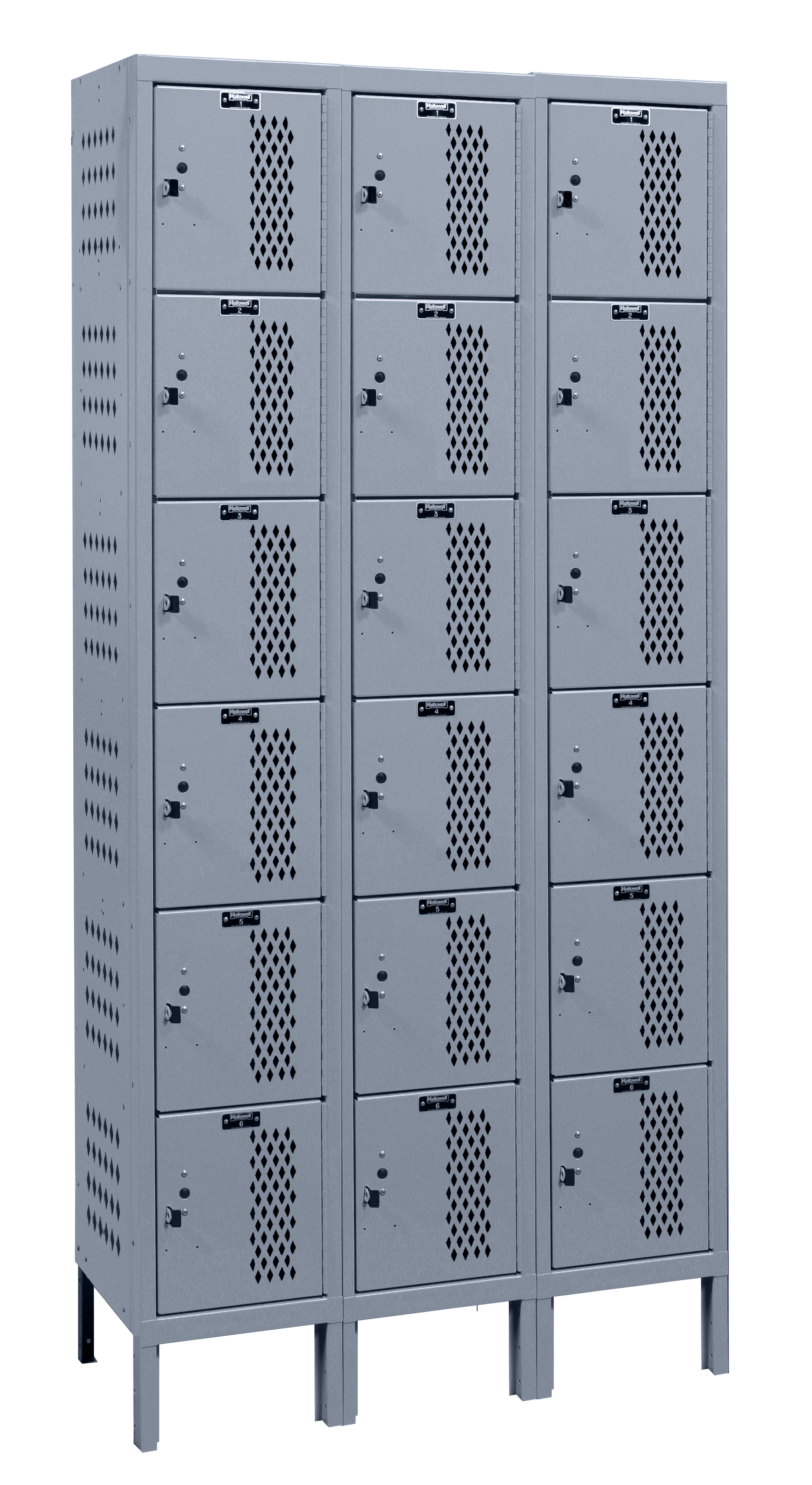

12	15	12	12/78	3-wide	18	6	U3258-6HDV	U3258-6HV-A	PT,-HG
12	18	12	12/78	1-wide	6	6	U1288-6HDV	U1288-6HV-A	PT,-HG
12	18	12	12/78	3-wide	18	6	U3288-6HDV	U3288-6HV-A	PT,-HG
