Easy assembly strong shelving.
High Capacity Boltless shelves and can hold up to 2,300 pounds per shelf and are easily adjusted on 1.5 inch increments.
Easy Assembly
Easy Assembly

Boltless shelving easily fits into place without any screwdriver or wrenches. Shelves adjust in 1-1/2" increments.

Product Overview

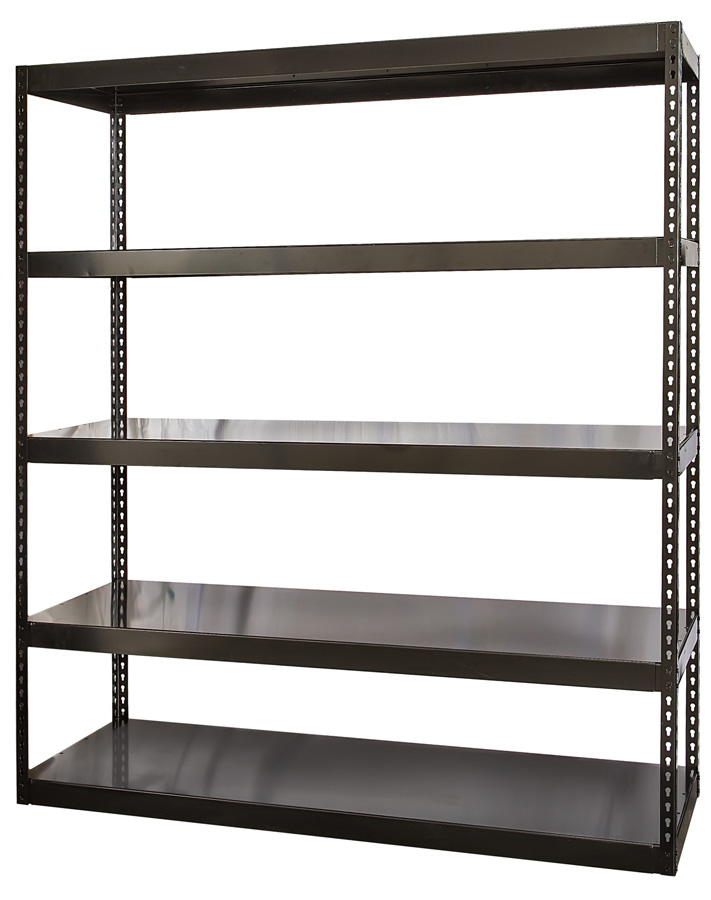

Waterfall High Capacity Boltless Shelving

High Capacity Steel shelves are 14 gauge cold rolled sheet steel with flange formed at front and back designed to overhang left to right beams at front and back.

Features:

  • Shelves adjust in 1-1/2” increments
  • 5 shelf levels
  • Easy assembly
  • Holds up to 2,300 lb. per shelf (Based on evenly distributed loads)
  • Black powder coat finish
  • Levels are center supported for increased capacity

2 sizes from stock - 84" high and 96" high

Angle Post: 1-1/2” x 1-1/2” x 14 gauge cold rolled steel corner post uprights.
Double Rivet Angle Beam up to 36” in length are 2-3/4” x 1” x 16 gauge cold rolled steel.
Double Rivet Angle Beam 48” long and greater are 2-3/4” x 1” x 14 gauge cold rolled steel.
Center Support  2-3/4” x 1” x 1” x 16 gauge cold rolled steel, provide additional shelf support front-to-back.


Catalog
High Capacity Shelving
84" High Shelving
SKU Width Depth Frame Height Shelf Capacity Assembled
HCR361884-5ME 36 18 84 2300 KD
HCR481884-5ME 48 18 84 2200 KD
HCR482484-5ME 48 24 84 2000 KD
HCR602484-5ME 60 24 84 2000 KD
HCR722484-5ME 72 24 84 1900 KD
HCR723684-5ME 72 36 84 1900 KD
HCR962484-5ME 96 24 84 1900 KD
HCR963684-5ME 96 36 84 1900 KD
96" High Shelving
SKU Width Depth Frame Height Shelf Capacity Assembled
HCR361896-5ME 36 18 96 2300 KD
HCR481896-5ME 48 18 96 2200 KD
HCR482496-5ME 48 24 96 2000 KD
HCR602496-5ME 60 24 96 2000 KD
HCR722496-5ME 72 24 96 1900 KD
HCR723696-5ME 72 36 96 1900 KD
HCR962496-5ME 96 24 96 1900 KD
HCR963696-5ME 96 36 96 1900 KD
Colors

Color Selection:

#221f1a
708 Black (ME)
