Duratech Pass-Thru Shelving

DuraTech is Hallowell's newest line of pass-thru steel shelving.

DuraTech pass-thru shelving requires no cross braces allowing access from all sides while providing maximum strength, durability, and stability.
QUICKSHIP: 5 day shipping on all in-stock shelving!

Duratech Heavy-Duty Shelves

Each intermediate shelf has lapped and welded corners
Available in three load capacity classes up to 48" wide spans and 36" depths
Exclusive triple bend side flanges for added strength

Tubular flange

Tubular flange front and rear for greater strength
Available in three load capacity classes up to 48" wide spans and 36" depths
Top of shelf is punched to accept shelf dividers

Top and bottom shelves are punched at all four corners

Fixed top and bottom shelves

Top and bottom shelves are punched at all four corners so they can be secured with nuts & bolts to provide a rigid structure
Top and bottom shelves are fabricated from 18 gauge cold rolled steel and are triple flanged at all four sides

Overview
Catalog
Components
Color
Documents

Back to top

Product Overview

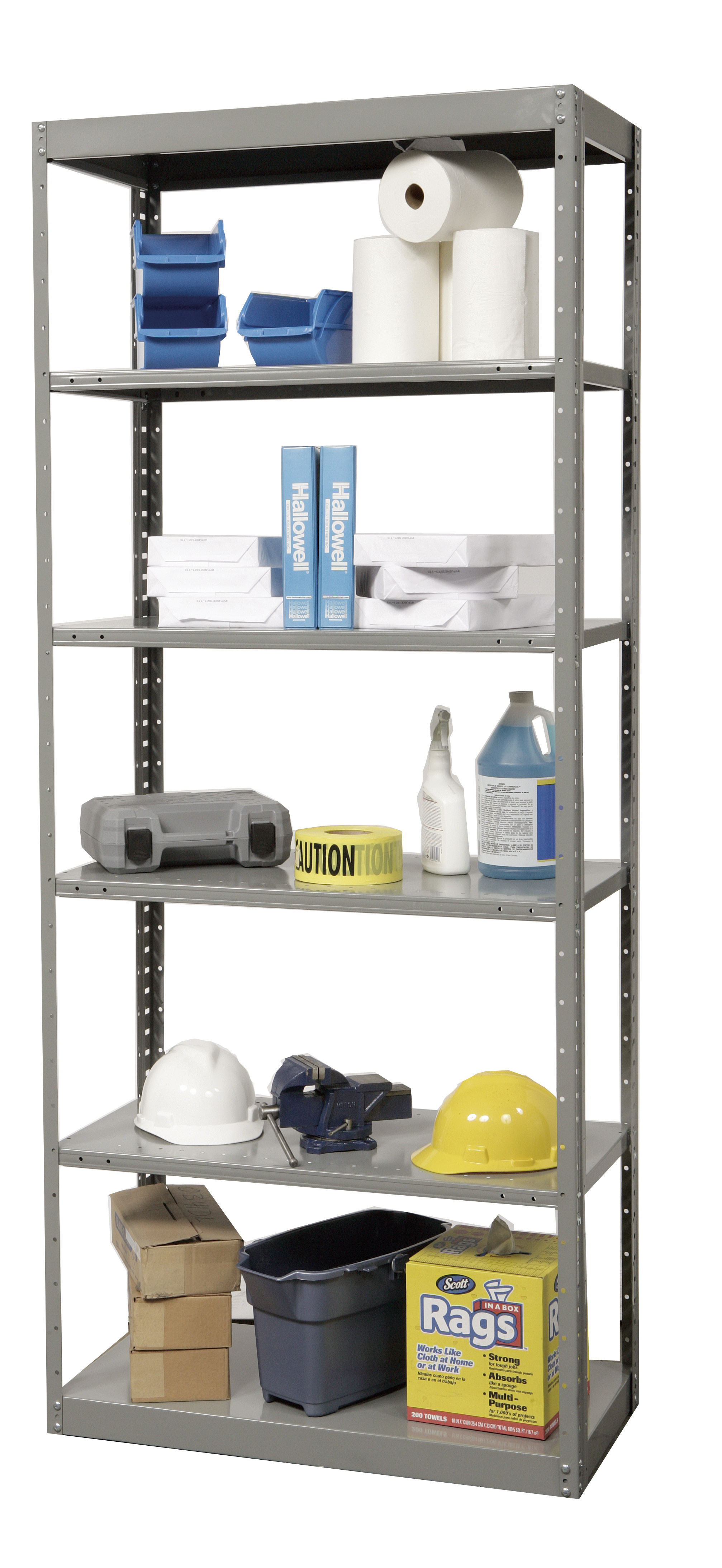

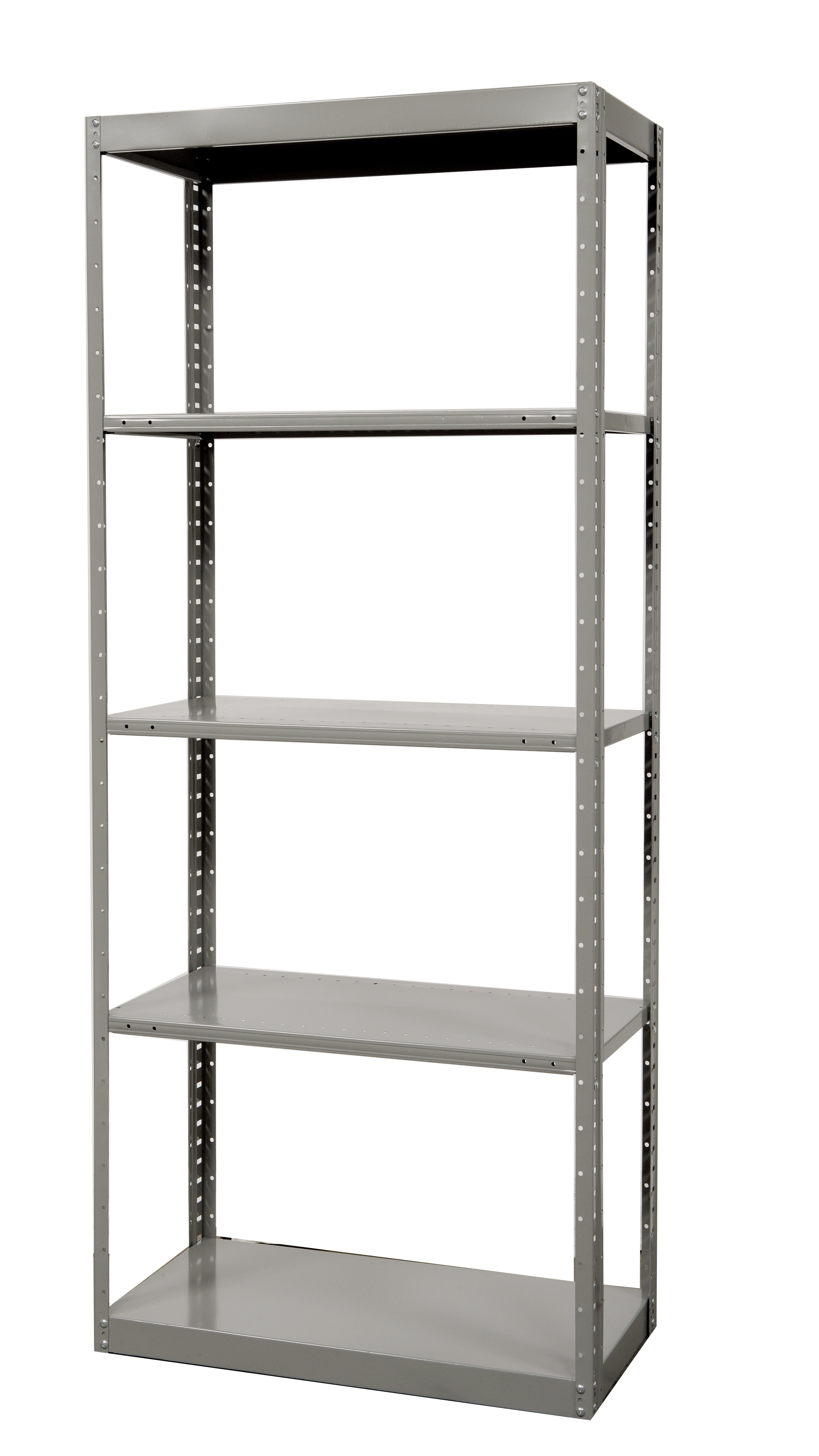

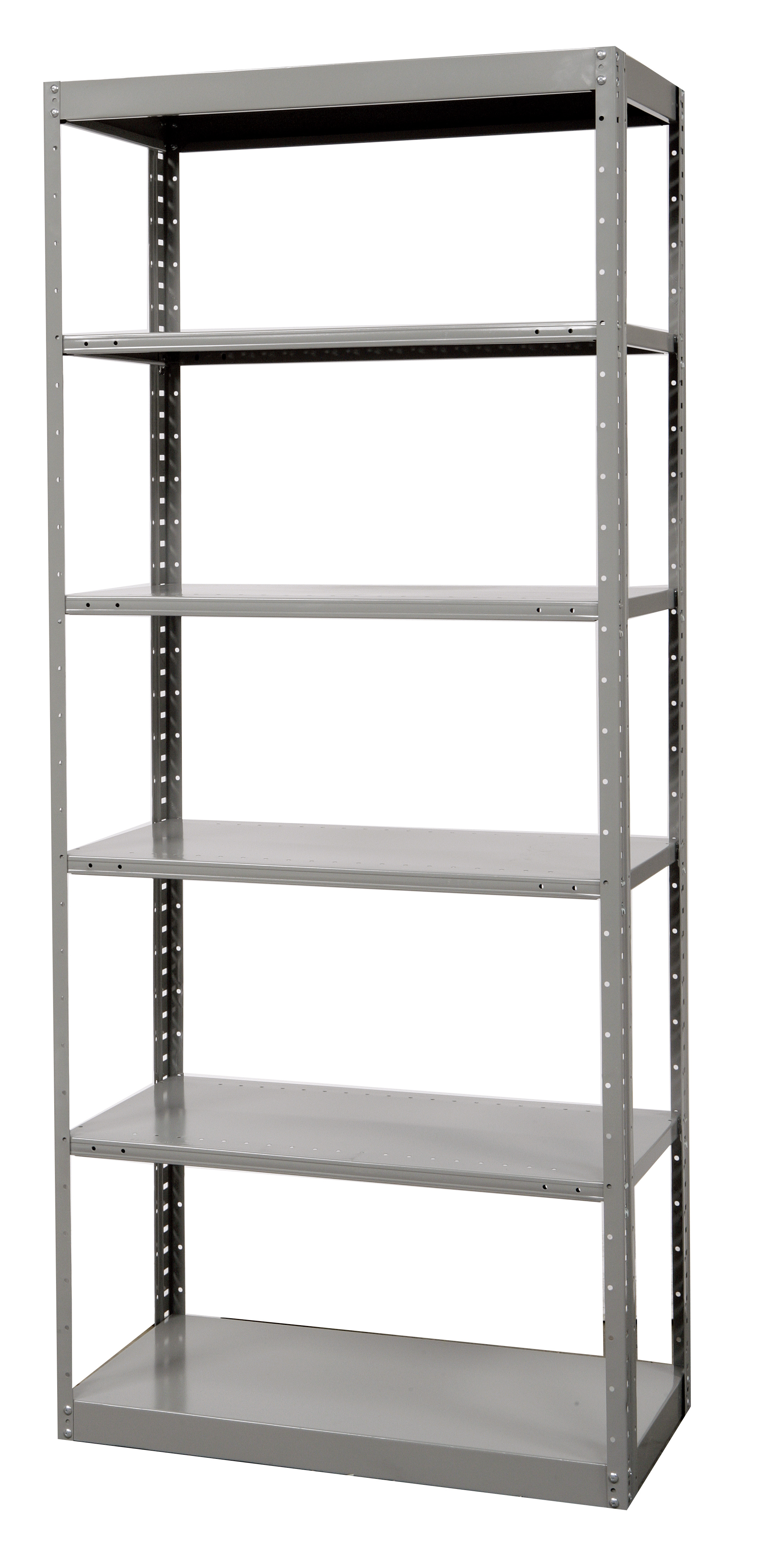

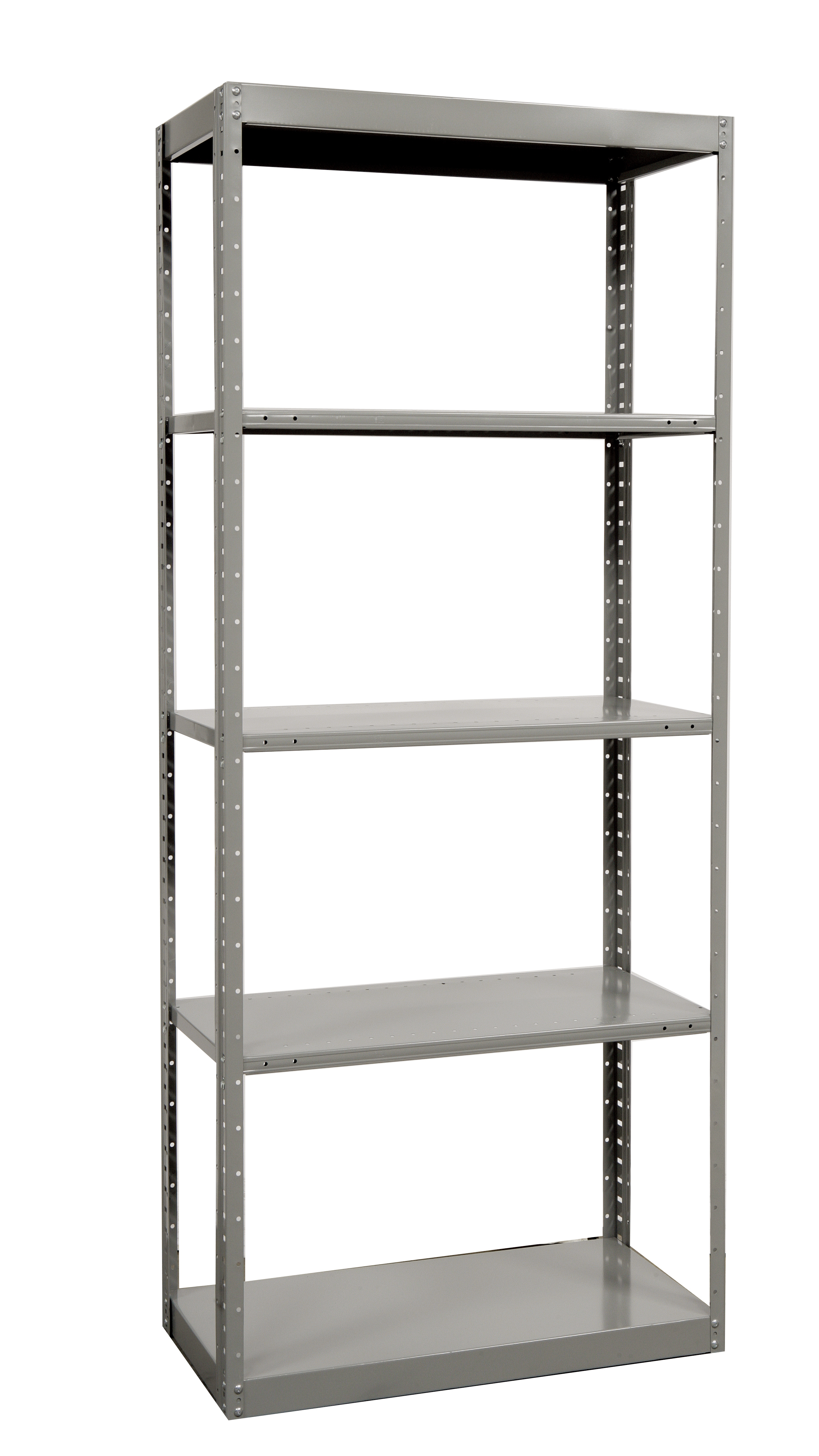

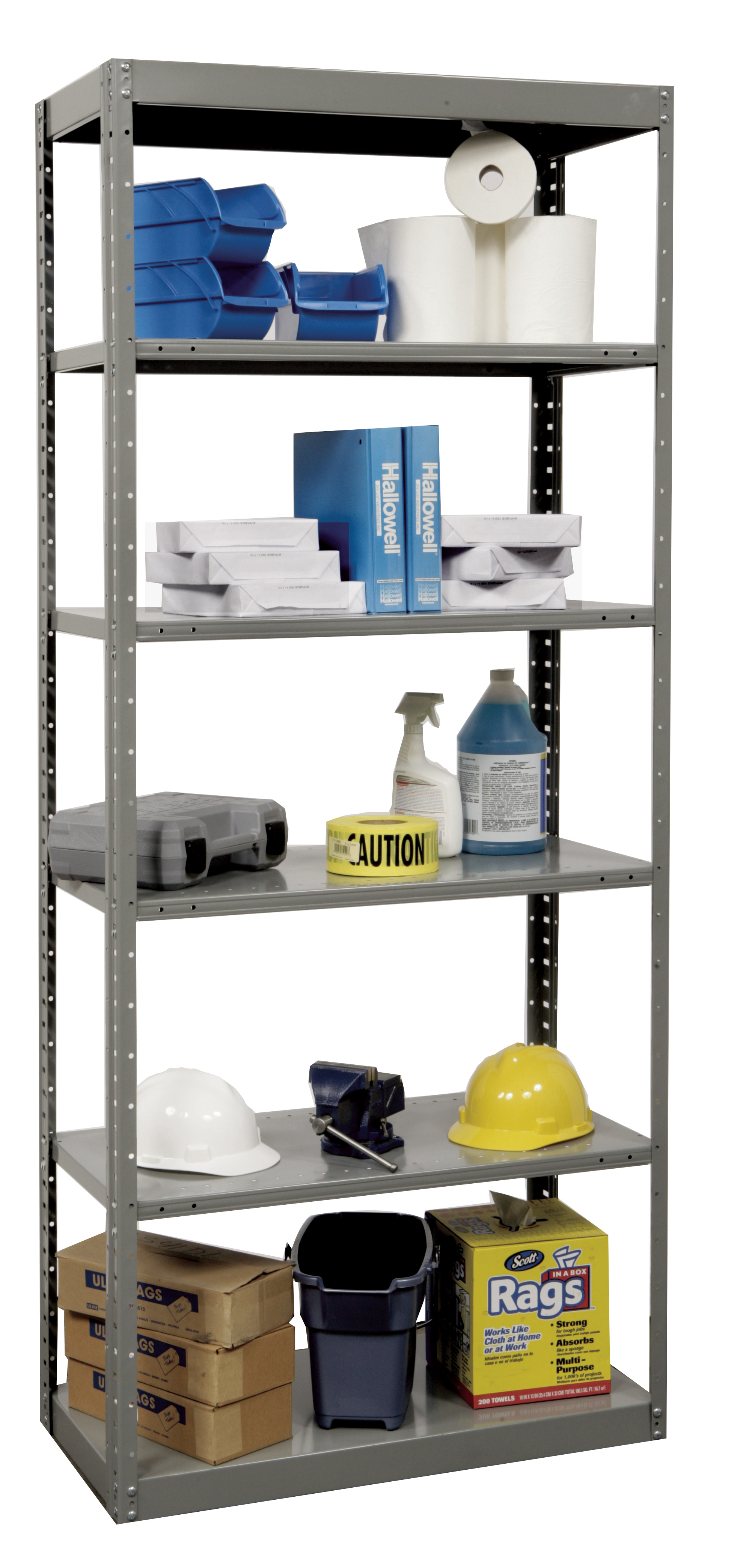

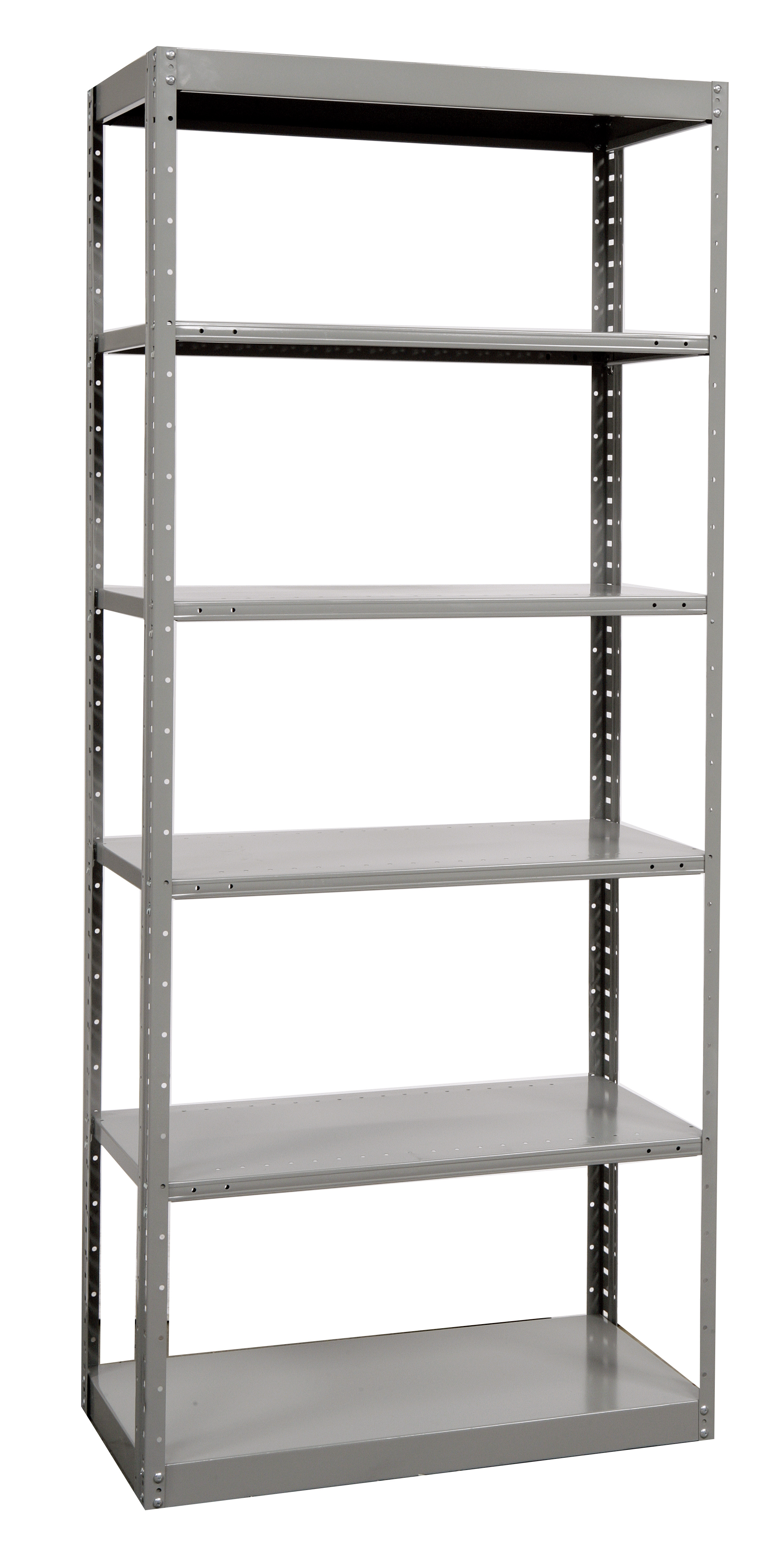

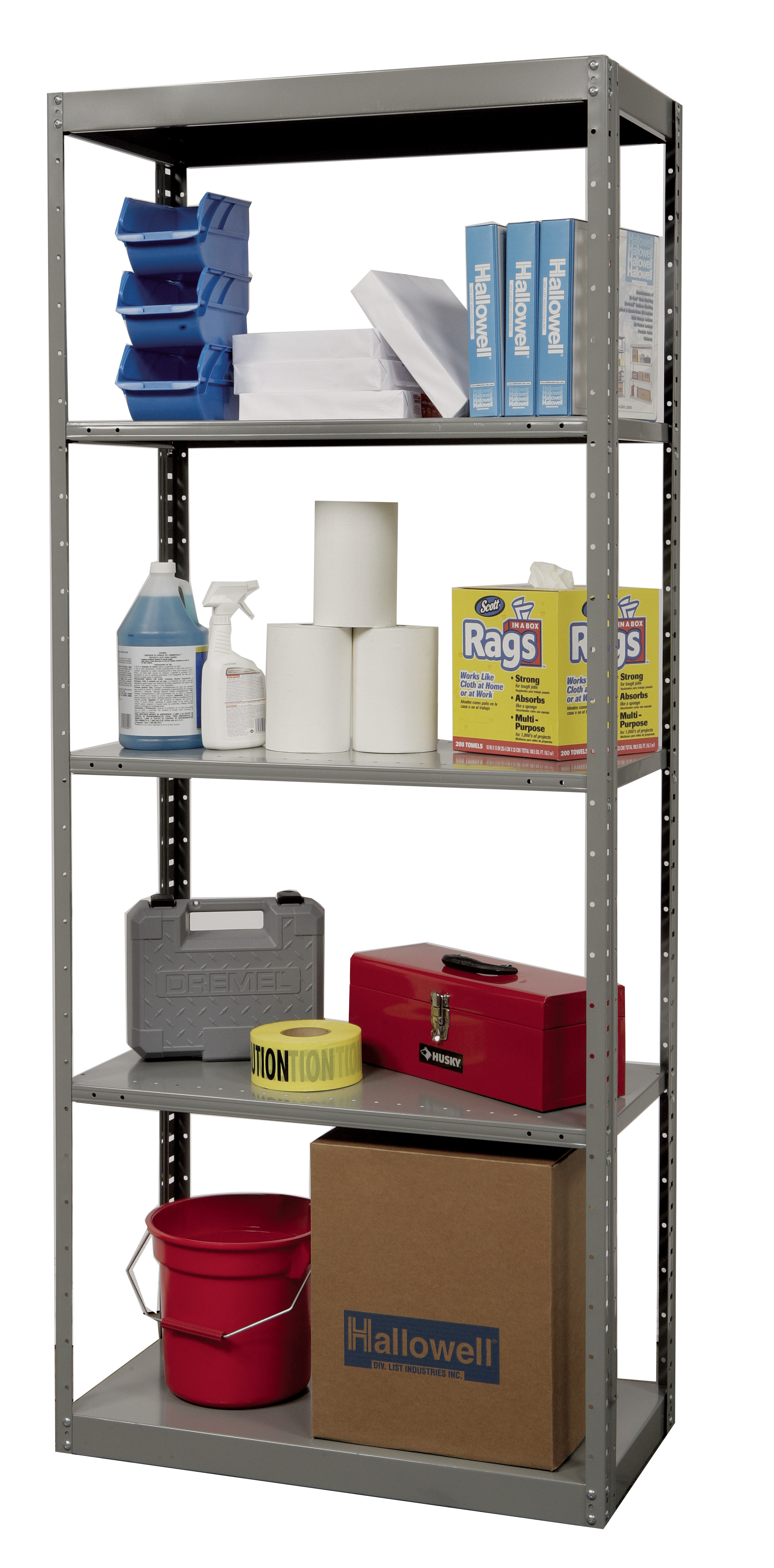

5-SHELF UNIT 3-adjustable shelves

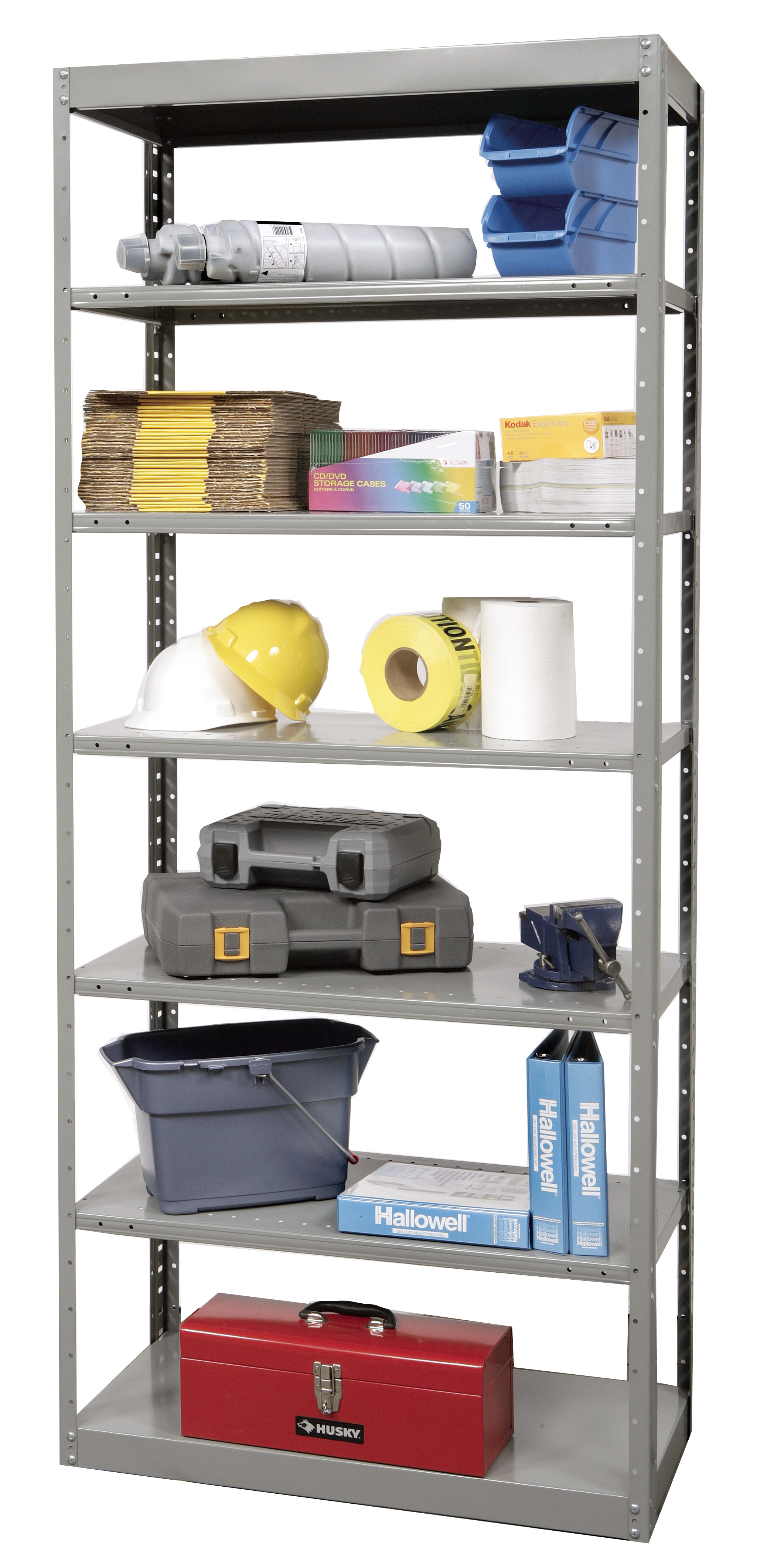

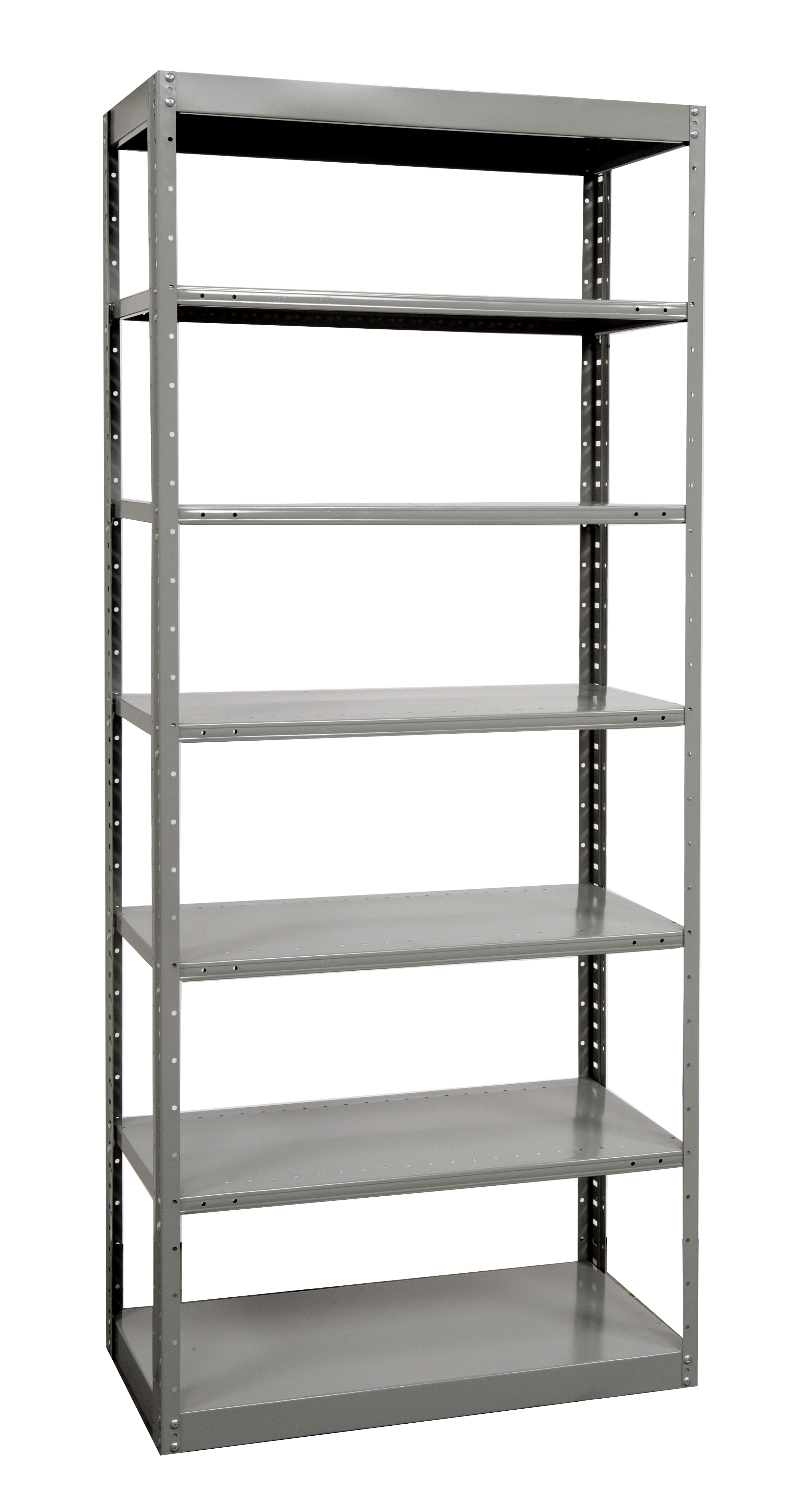

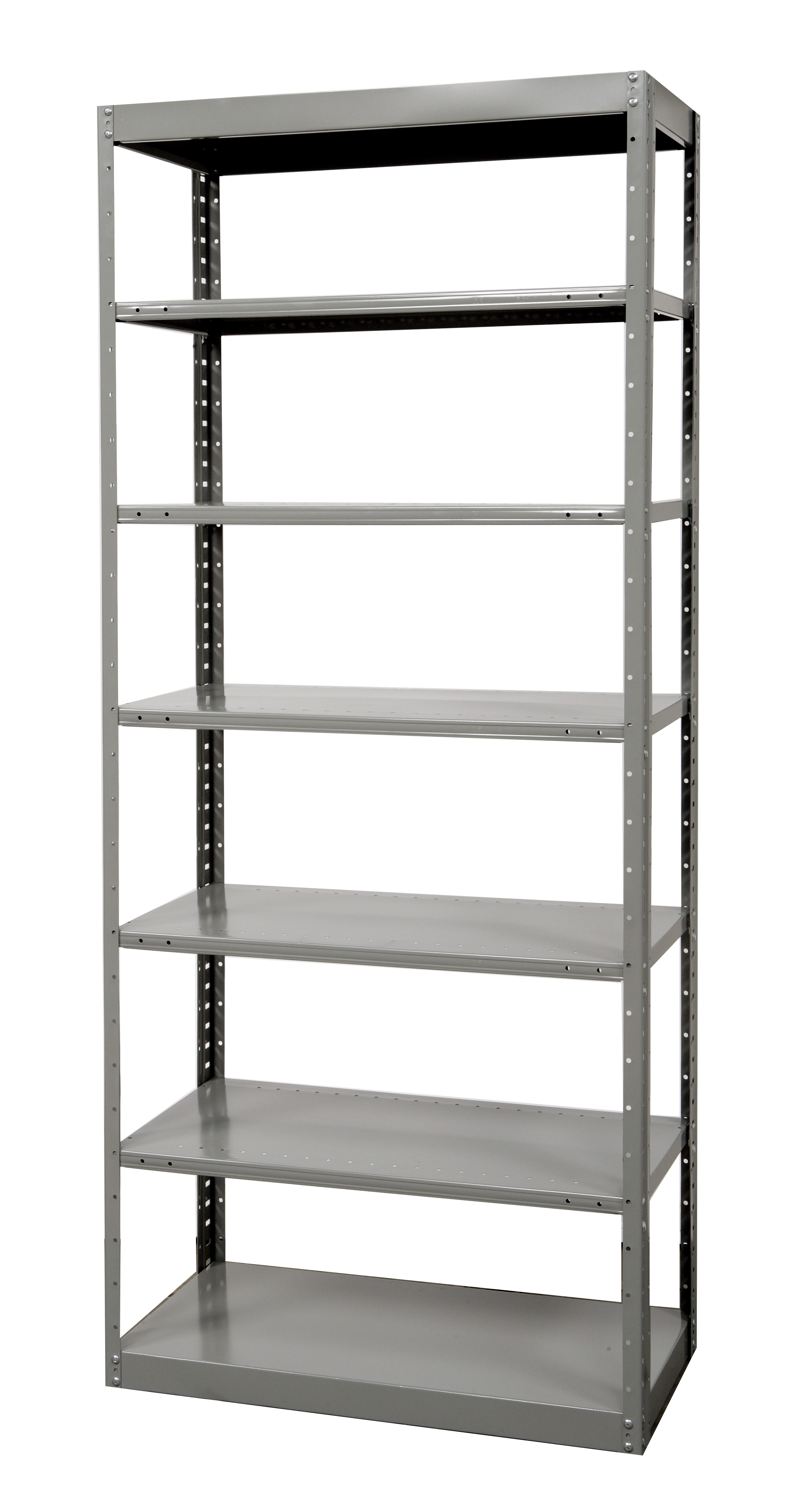

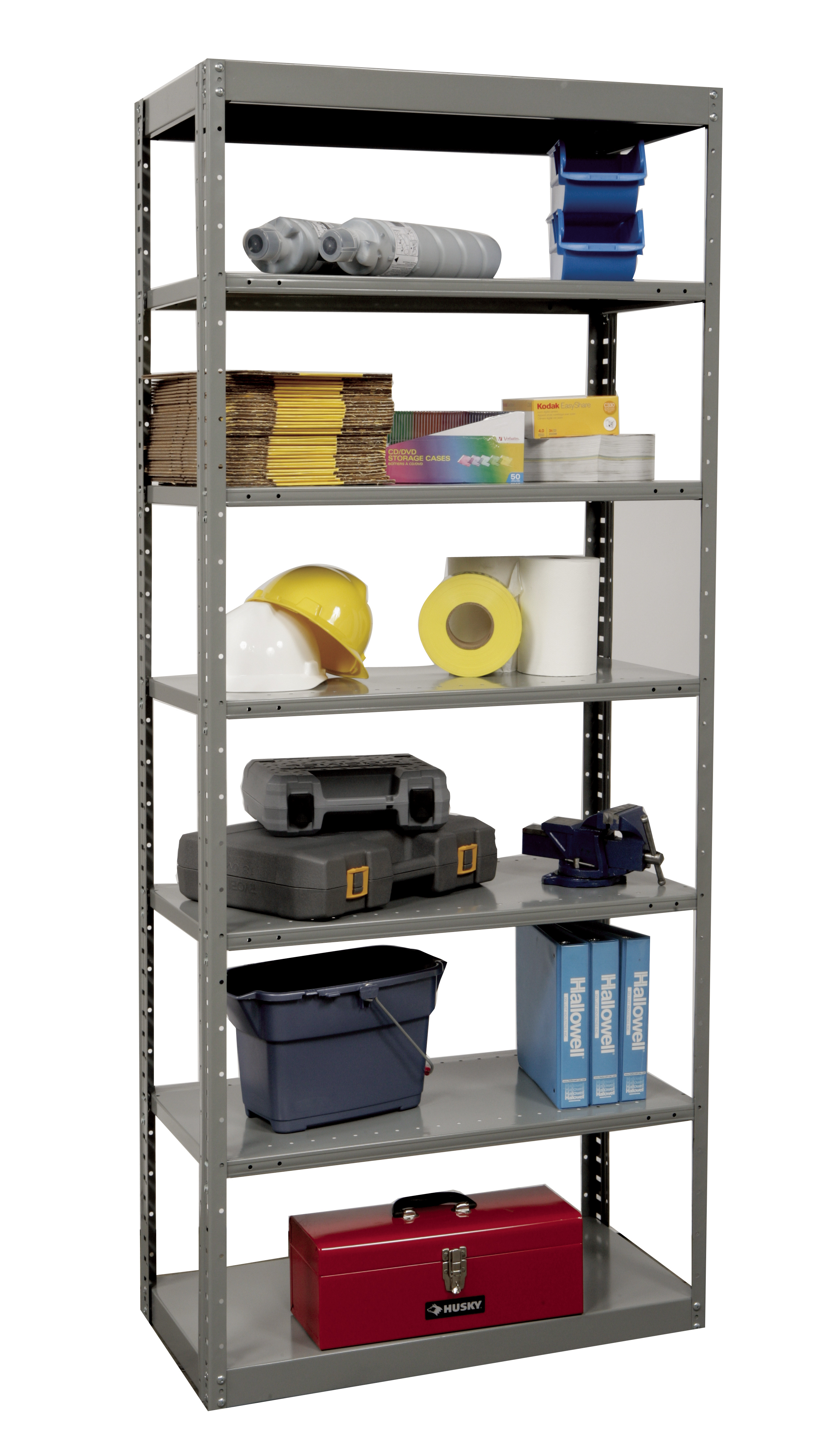

7-SHELF UNIT 5-adjustable shelves

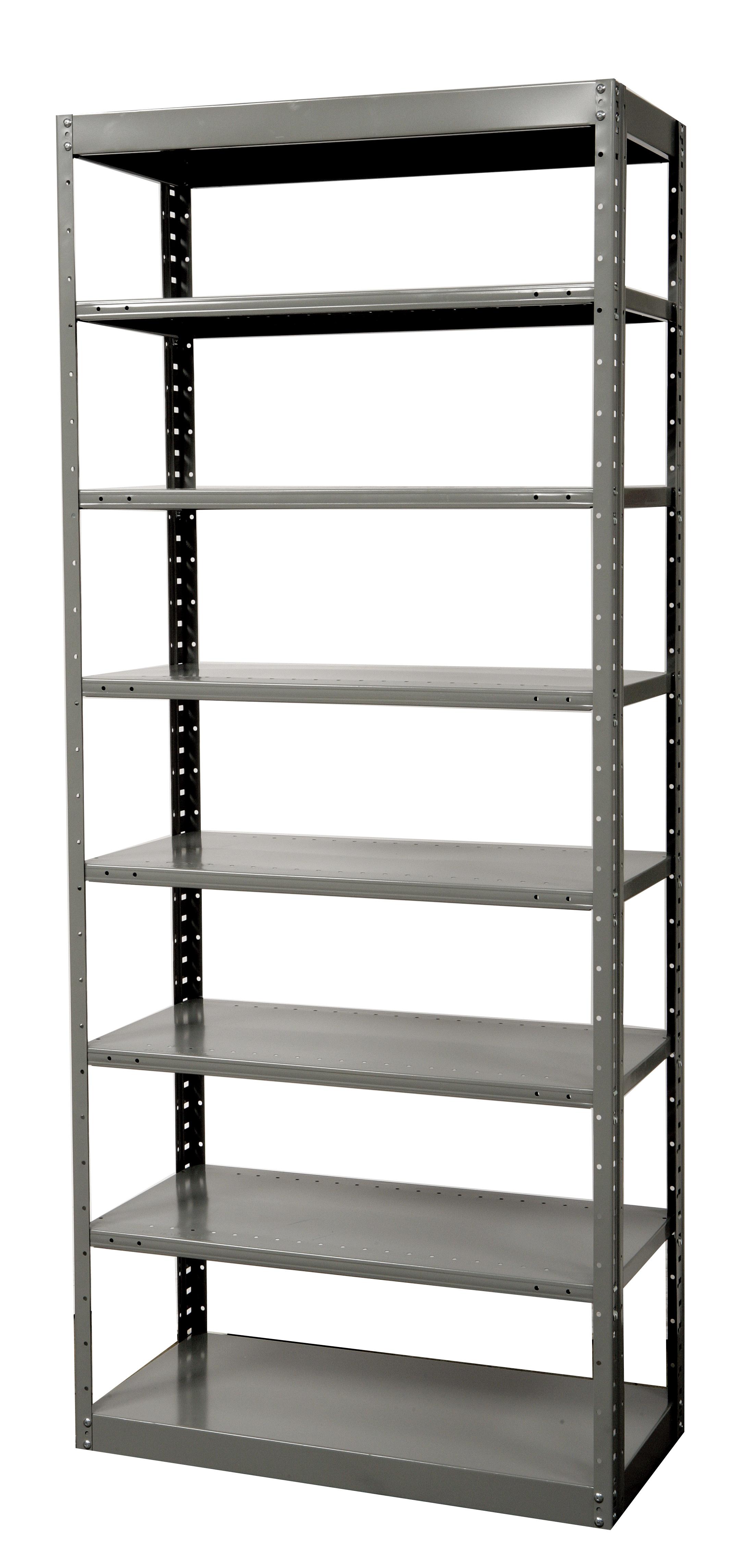

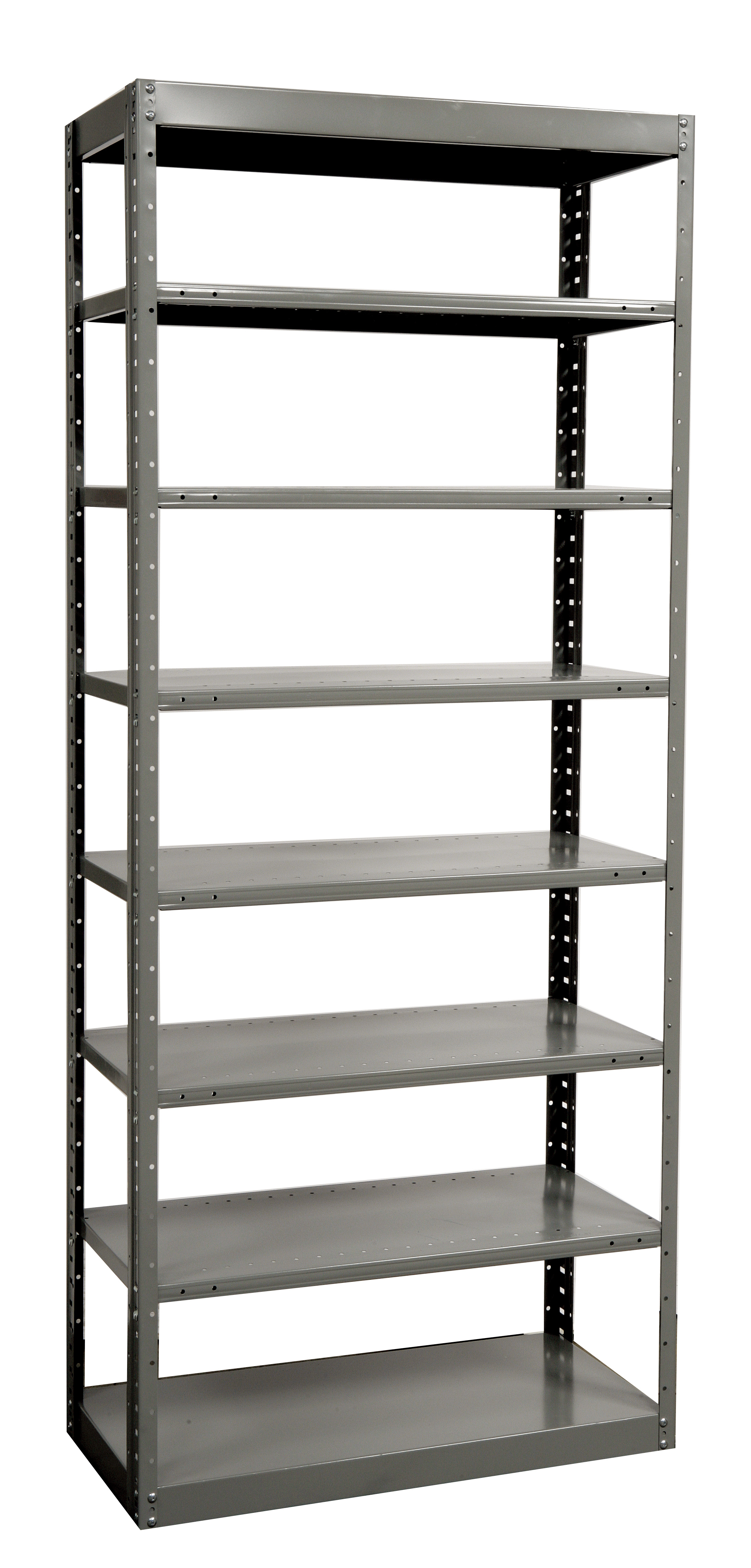

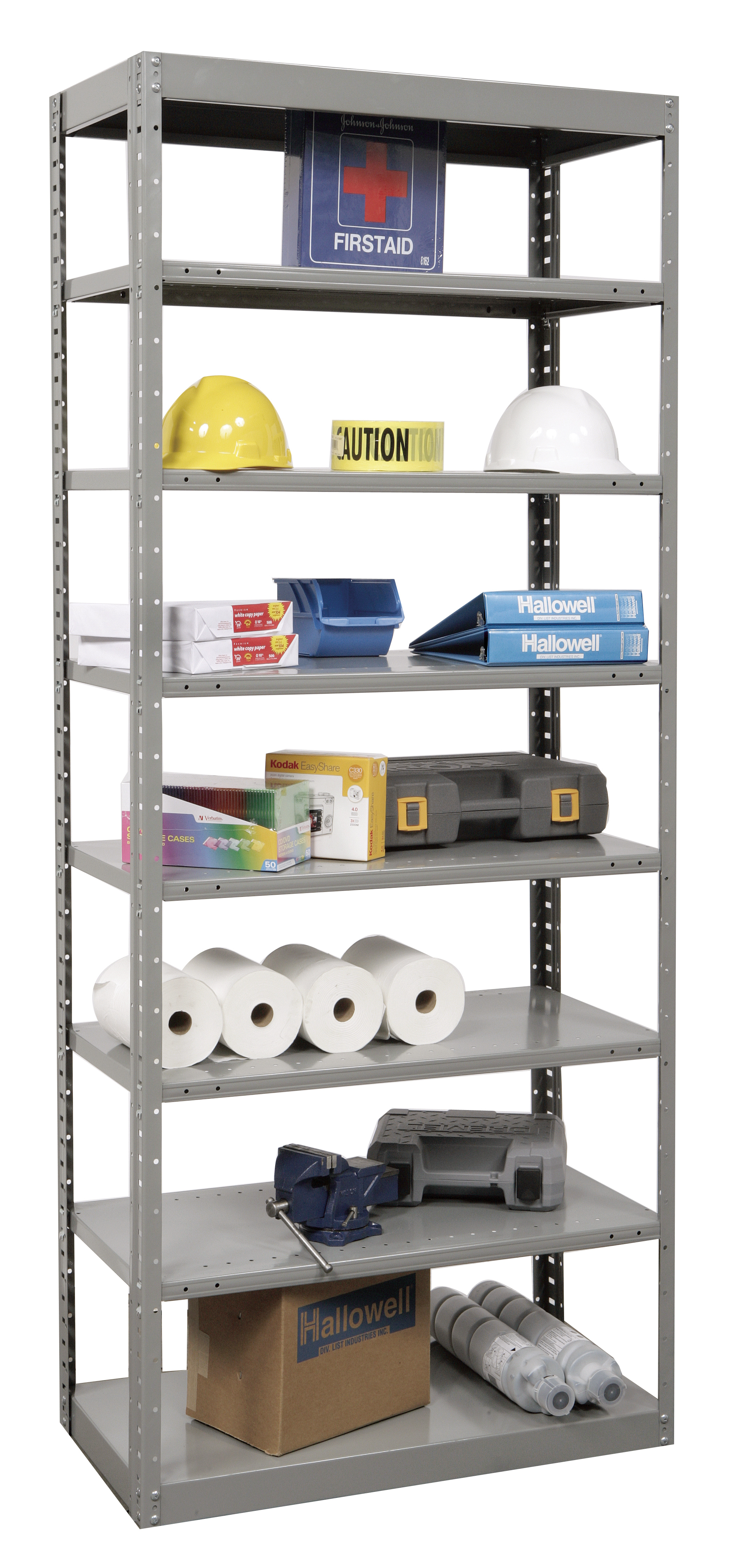

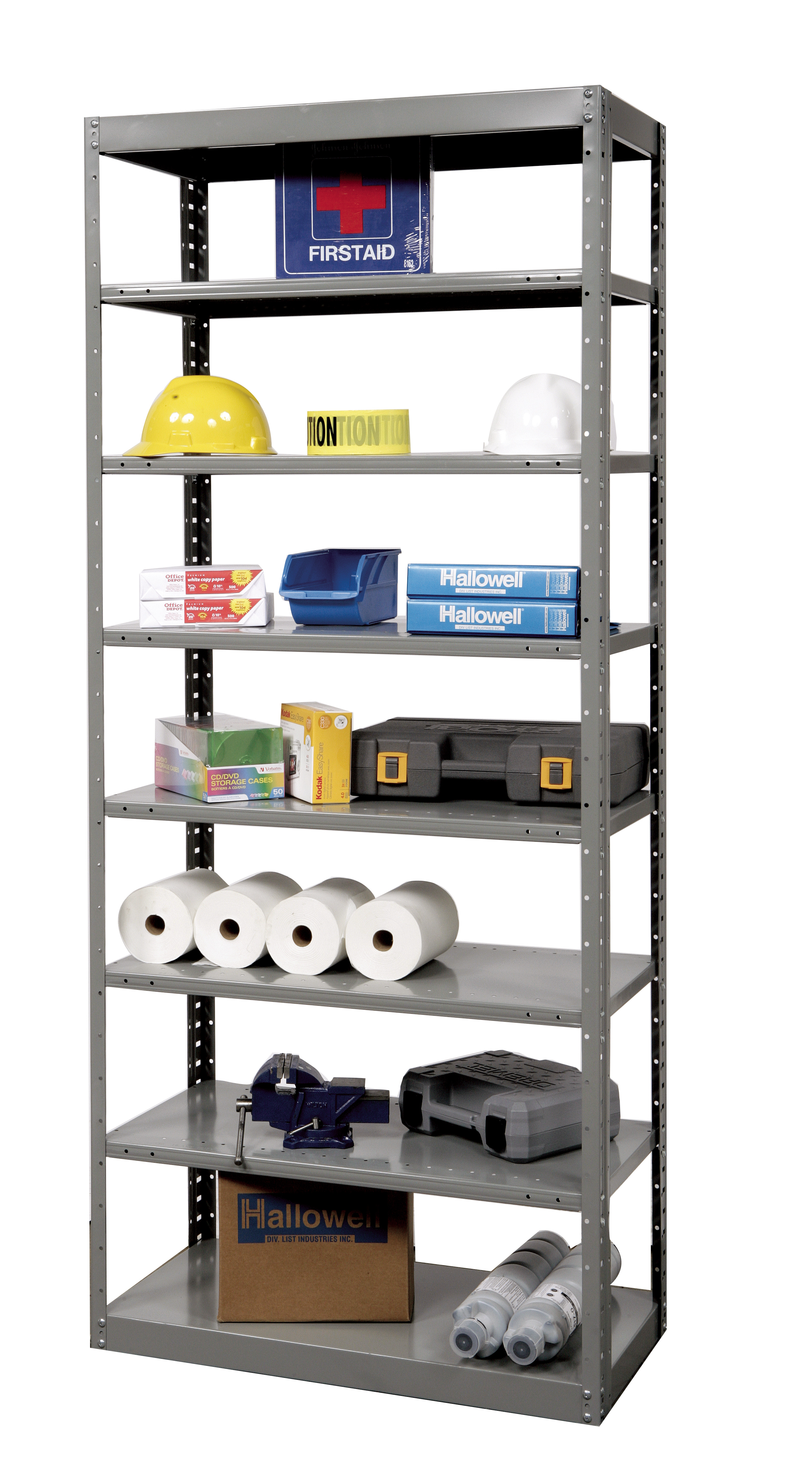

8-SHELF UNIT 6-adjustable shelves

360 Degree Access

DuraTech is Hallowell's newest line of pass-thru steel shelving requiring no cross braces allowing access from all sides while providing the maximum strength, durability, and stability needed to handle most industrial applications. DuraTech offers versatility and durability for today's modern facilities. Our complete line of shelving is designed and engineered to the highest standards.4 bolts and steel-grip nuts at each corner, top and bottom, provide for a very strong frame with maximum strength. Fixed shelves at the top and bottom provide a rigid structure while fully adjustable intermediate shelves, using compression-shelf clips, provide the versatility needed for any situation.

A more efficient storage system!

Access from all 4 sides
Top and bottom firmly attached with steel-grip nuts for superior strength
Available in 5, 7 and 8 shelf models
Four Angle Posts are used per section allowing units to be individually located, bolted side-by-side or bolted back-to-back.
Each intermediate shelf uses four sturdy and compact clips
Clips key firmly into post slots to hold shelves securely in place
Provides independent positioning of intermediate shelves on 1-1/2” centers
Bottom shelf is positioned to prevent debris from collecting beneath unit

Catalog

Dura-Tech Pass-Thru Steel Shelving

Specs
SKU	Width	Depth	Frame Height	Number of Shelves	Shelf Capacity	Assembled
DT5510-12	36	12	87	5	800	KD
DT5512-12	36	12	87	7	800	KD
DT5513-12	36	12	87	8	800	KD
DT5510-18	36	18	87	5	800	KD
DT5512-18	36	18	87	7	800	KD
DT5513-18	36	18	87	8	800	KD
DT5510-24	36	24	87	5	800	KD
DT5512-24	36	24	87	7	800	KD
DT5513-24	36	24	87	8	800	KD
DT5712-18	48	18	87	7	500	KD
DT5713-18	48	18	87	8	500	KD
DT5710-24	48	24	87	5	500	KD
DT5710-18	48	18	87	5	450	KD
DT5712-12	48	12	87	7	400	KD
DT5713-12	48	12	87	8	400	KD

Components

Duratech One Piece Shelf Clip

Each intermediate shelf requires four sturdy & compact clips
Clips key snugly into post to hold shelves securely in place
Provides independent positioning of intermediate shelves on 1-1/2" centers

Intermediate Shelf and Back of Shelf Clip

Intermediate Shelves

Compression clips hold the intermediate shelves securely while providing a quick and easy way to make adjustments
One-piece design, made from 13 gauge cold rolled steel and plated with zinc

Duratech Heavy-Duty Shelves

Each intermediate shelf has lapped and welded corners
Available in three load capacity classes up to 48" wide spans and 36" depths
Exclusive triple bend side flanges for added strength

Tubular flange

Tubular flange front and rear for greater strength
Available in three load capacity classes up to 48" wide spans and 36" depths
Top of shelf is punched to accept shelf dividers

Steel-grip locking nut

Steel-grip locking nuts and bolts are used at each of the top and bottom corners
Top and bottom shelves are very tightly secured giving the needed integrity to the rest of the structure

Duratech Angle Posts

Roll formed into a unique angle shape for maximum strength
The long leg is punched on 1-1/2" centers to allow independent shelf adjustment
Four angle posts are used per section allowing units to be individually located, bolted side-by-side or bolted back-to-back

Fixed top and bottom shelves

Top and bottom shelves are punched at all four corners so they can be secured with nuts & bolts to provide a rigid structure
Top and bottom shelves are fabricated from 18 gauge cold rolled steel and are triple flanged at all four sides

Colors
