Standard and Whisper Quiet KD Lockers

More from: Wardrobe Lockers Lockers

Our Silent Approach To Locker Design.

Sound deadening panel and vinyl coated latching for Whisper quiet lockers, keeps the noise down.

304 Stainless Steel Recessed Handle

Deep-drawn 304 stainless steel recessed handle multi-point gravity-lift type latching.

Piano Hinge

A full-length piano hinge runs from the top to the bottom of the door and provides sturdy and smooth door operation.

Sound Deadening Panel

Sound deadening panel that decreased vibrations and noise from standard locker operation for Whisper quiet lockers only.

Overview
Catalog
Components
Color
Documents

Back to top

Product Overview

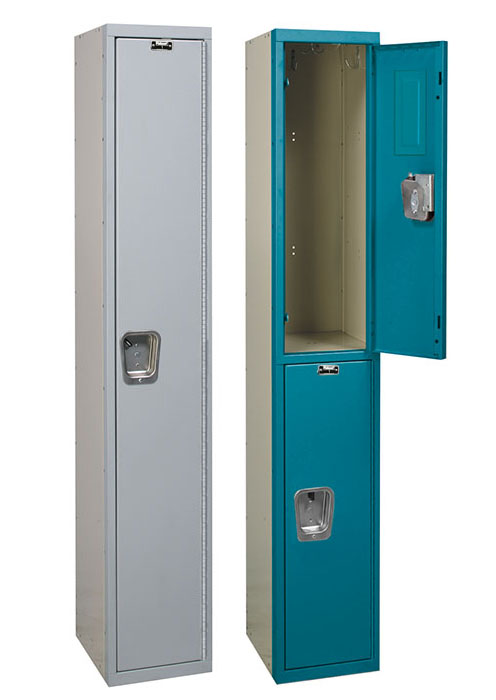

Our Silent Approach To Locker Design

Standard Quiet
Lockers are constructed just like our Classic K.D. lockers, except the door is furnished without louvers to limit air rush through the door, providing quiet operation.

Whisper Quiet
The die-formed sound deadening panel filled with acoustical material provide the quietest and most aesthetically appealing gravity latch locker.

Available in single, double and triple tier as well as Two-Person and Duplex models. Doors are furnished without louvers to limit air rush through the door, providing quiet operation. Perforations on upper and lower door flanges allow concealed ventilation.

Body/Frame Description:

Knock-down (KD) with 24 gauge solid body components, 16 gauge frame with 16 gauge horizontal cross member between doors on double and triple tier wardrobe lockers

Body/Frame:

KD

Body Styles:

Wardrobe: single-tier, double-tier triple tier - Box: four-tier, five-tier, six-tier - Specialty: two-person, duplex, sixteen-person, 4-wide wall-mount

Doors:

16 gauge plain doors (18 gauge for 9" wide), Sound deadening panel and vinyl coated latching for Whisper quiet lockers only

Door Strike:

Continuous vertical door strike at both hinge and latch side

Handle:

Deep drawn stainless steel recessed handle

Latching:

12 gauge latch hooks MIG welded to frame. Gravity lift-type multi-point spring loaded latching: 3-point latching for openings 48" high and higher, 2-point latching for openings 20" high thru 36" high

Hinges:

16 gauge continuous piano hinge

Hooks:

2-single hooks and 1-double hook is standard. 1- double hook only for triple tier and 1-double and 1 - single hook for 9" wide openings 30" and higher

Coat Rods:

none

Shelves:

Hat shelf for single tier openings 60" and 72" high

Legs:

All production KD lockers are supplied without legs unless otherwise specified

Catalog

	KD Locker Sizes	Width	Depth	Opening Height	Frame Height

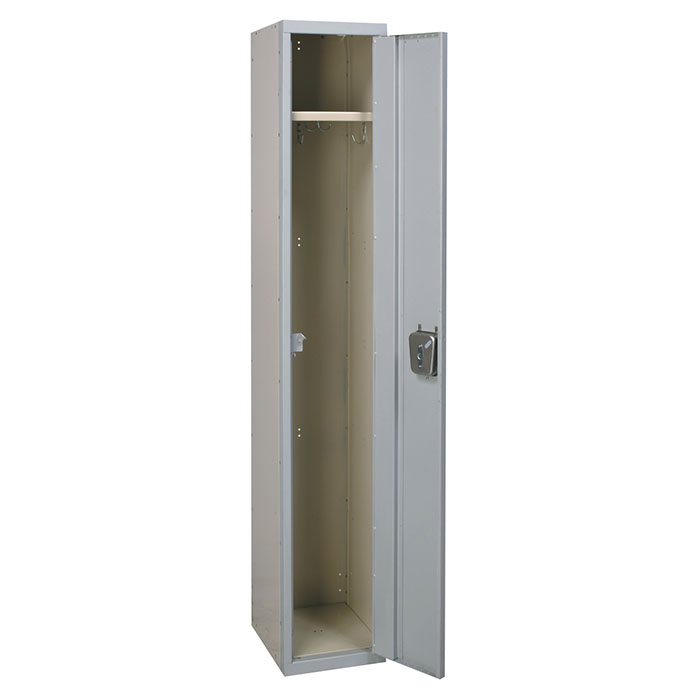

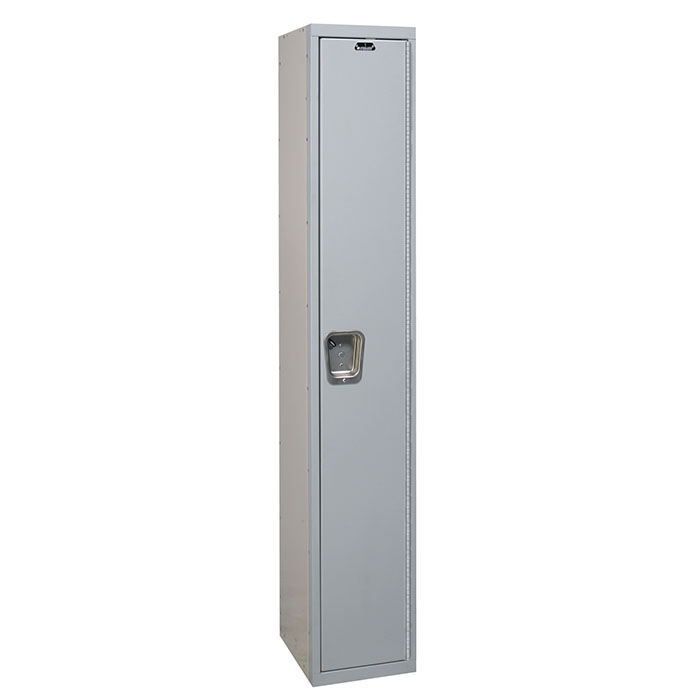

Wardrobe	Single Tier	9" 12" 15" 18" 24"	12" 15" 18" 21" 24"	36" 48" 60" 72"	36" 48" 60" 72"

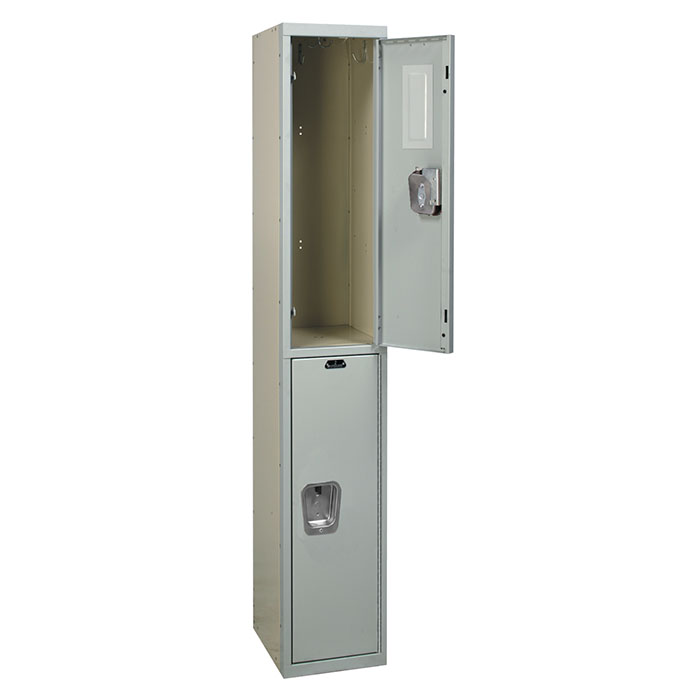

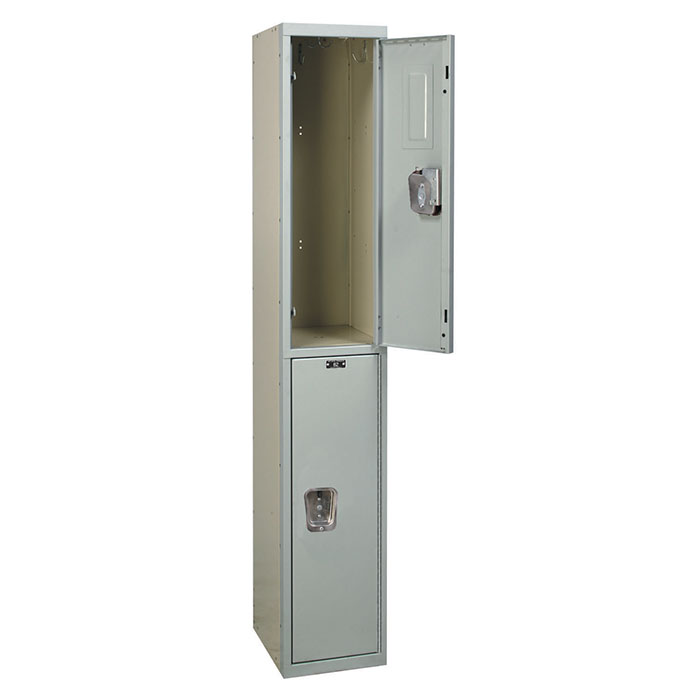

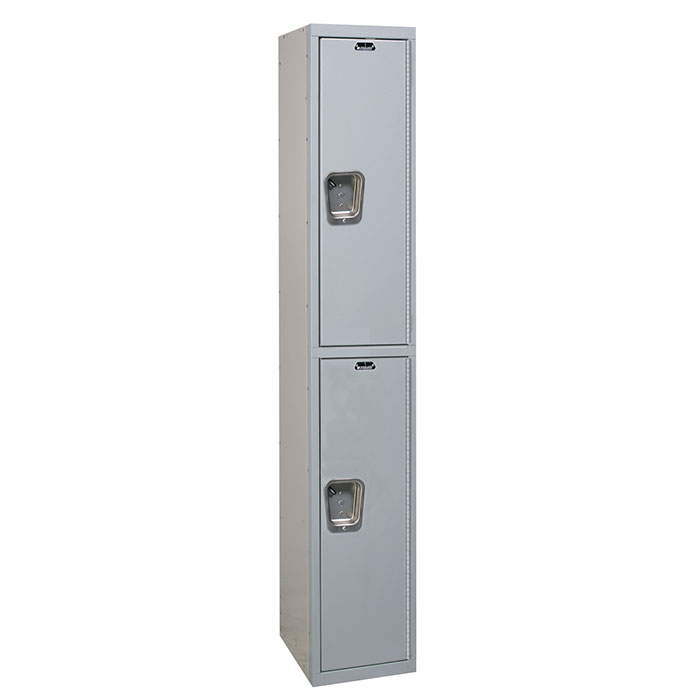

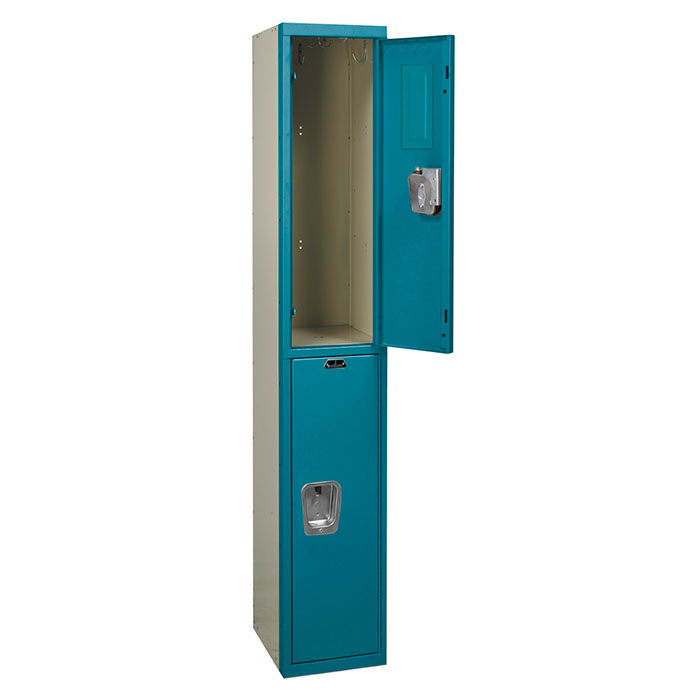

	Double Tier	9" 12" 15" 18"	12" 15" 18" 21"	30" 36"	60" 72"
	Triple Tier	9" 12" 15" 18''	12" 15" 18" 21''	20" 24"	60" 72"
Box	Four Tier	12'', 15''	12" 15" 18"	15'', 18''	60" 72"
	Five Tier	12'', 15''	12" 15" 18"	12'', 14.4''	60" 72"
	Six Tier	12'', 15''	12" 15" 18"	12''	72"
Specialty	Two Person	15'', 18''	12" 15" 18"	N/A	60" 72"
	Duplex	15''	12" 15" 18"	60'', 72''	60" 72"
	Sixteen Person	72''	18''	12''	78'' (includes 6'' legs)
	4 Wide wall mount	48''	18"	12''	14-3/4

NOTES:

Lockers can be ordered fully-assembled or knock-down for assembly at destination Aluminum number plates (#1-up) with mounting hardware are included. Number plate face is black with silver etched numerals. If a special numbering sequence is required, please specify when ordering. Number sequence must be consecutive numbers equal to the number of openings (doors) ordered. Locks are not included.
