Single-Point Lockers

Strong All-Welded Ventilated Lockers

Constructed with a rigid torque-free door & Single-point maintenance-free quiet latching system with recessed handle, ideal for heavy duty athletic use, where ventilation is important.

Door Stiffener

Welded to the door, the Door Stiffener provides rigidity to the door keeping it from wobbling or warping.

Diamond Perforated Ventilation

Diamond perforated doors and sides provide ample ventilation.

Piano Hinge

A full-length piano hinge runs from the top to the bottom of the door and provides sturdy and smooth door operation.

Recessed Single Point

Deep drawn stainless steel recessed handle with single-point latching. The recessed handle protects the finish from being marred by a padlock.

Overview
Catalog
Components
Color
Documents

Back to top

Product Overview

Strong Ventilated Lockers

Lockers include a 3" wide 18 gauge full-height door stiffener spot welded to the inner door face and MIG welded to the hinge side as well as to the top and bottom door flanges providing a rigid torque-free door & Single-point maintenance-free quiet latching system with recessed handle

Body/Frame Description:

All-welded, 16 gauge continuos top for added rigidity, fully-assembled

Body/Frame:

Fully Framed All-Welded

Body Styles:

Single and double tier

Doors:

14 gauge door is diamond perforated for added visibility and ventilation and includes a welded-in full height door stiffener with continuous door strike at hinge and latch side

Handle:

Deep-drawn seamless stainless steel recessed handle with single-point thru-the-handle maintenance-free quiet latching system

Latching:

11 gauge MIG welded latch

Hinges:

Continuous piano type

Hooks:

none

Coat Rods:

none

Shelves:

Hat shelf for single tier

Legs:

none

Catalog

Single Point

Single Tier
SKU	Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	colors	Assembled
HWBA212-1	12	12	72	72	1-wide	1	1	HG	Assembled
HWBA212-111	12	12	72	72	3-wide	3	1	HG	Assembled

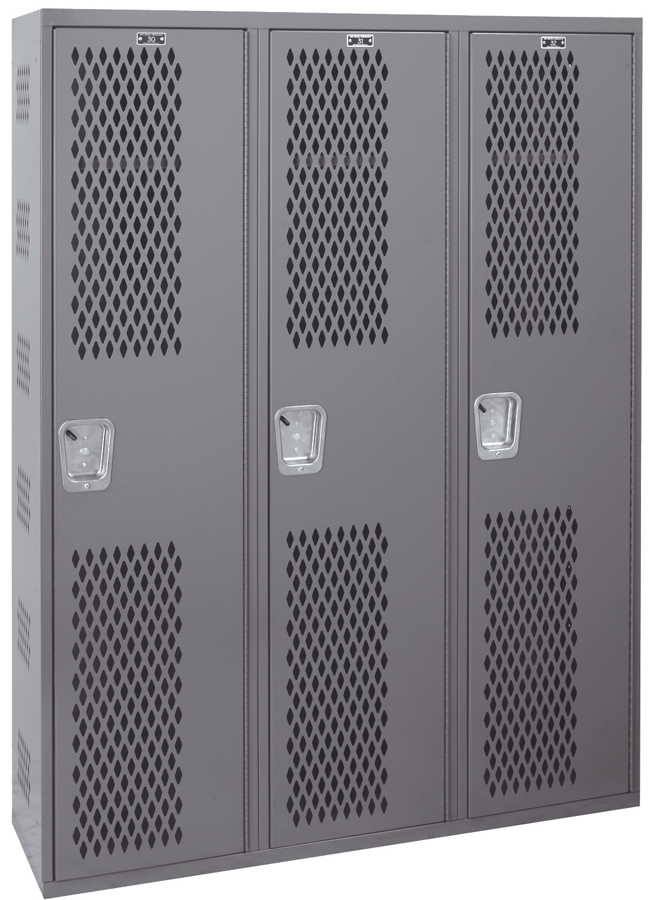

HWBA282-111	12	18	72	72	3-wide	3	1	HG	Assembled

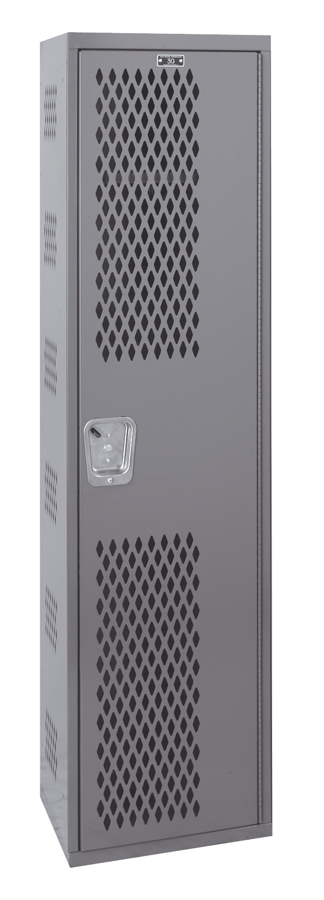

HWBA282-1	12	18	72	72	1-wide	1	1	HG	Assembled
HWBA882-111	18	18	72	72	3-wide	3	1	HG	Assembled
HWBA882-1	18	18	72	72	1-wide	1	1	HG	Assembled

Double Tier
SKU	Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	colors	Assembled
HWBA212-2	12	12	36	72	1-wide	2	2	HG	Assembled
HWBA212-222	12	12	36	72	3-wide	6	2	HG	Assembled

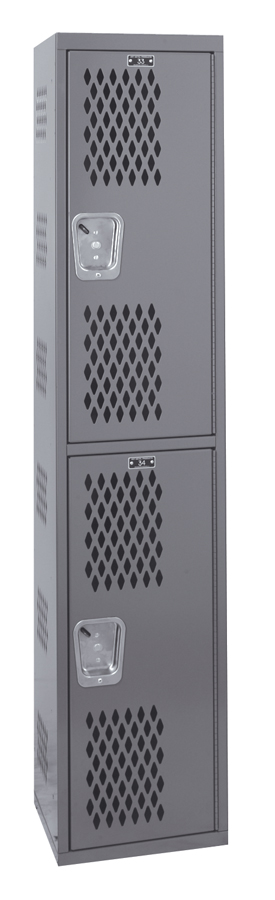

HWBA282-2	12	18	36	72	1-wide	2	2	HG	Assembled

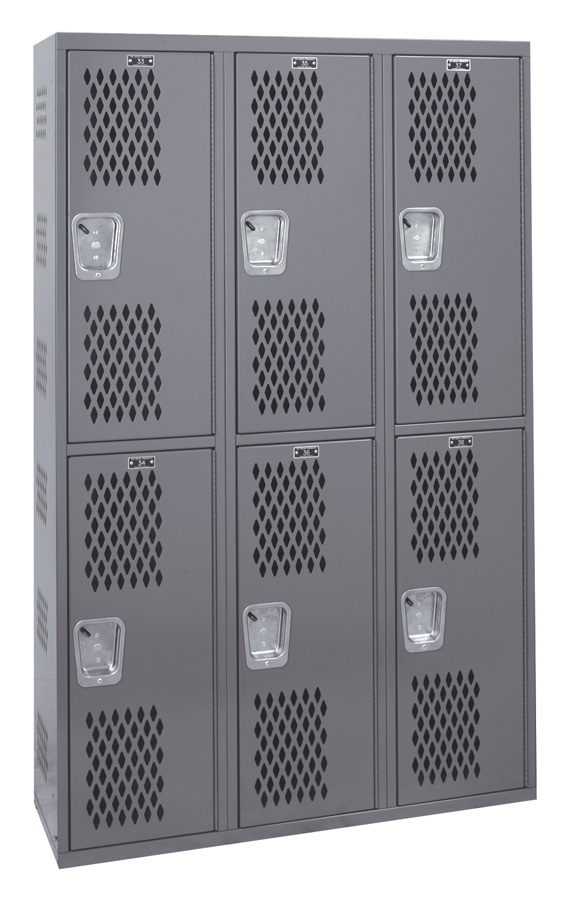

HWBA282-222	12	18	36	72	3-wide	6	2	HG	Assembled
HWBA882-222	18	18	36	72	3-wide	6	2	HG	Assembled
HWBA882-2	18	18	36	72	1-wide	2	2	HG	Assembled
