Safety-View™ Plus KD Lockers - In stock

More from: Corridor Lockers Lockers

'Windowed' KD Box Lockers are ideal for saving space, while keeping a close eye on contents.

Safety-View Plus doors provide an unobstructed view of locker contents. Each door is made entirely of transparent polycarbonate, so you can see everything inside. The durable steel frame can handle heavy use and abuse in your hallway or locker room.

Clear Panel Doors

Doors are made from high-strength injection-molded clear polycarbonate for unobstructed content viewing.

Single Point Latching

Single-point projecting friction catch door pull prepared for both padlock or built-in lock. No moving parts ensure quiet maintenance-free operation.

Piano Hinge

A full-length piano hinge runs from the top to the bottom of the door and provides sturdy and smooth door operation.

Overview
Catalog
Components
Color
Documents

Back to top

Product Overview

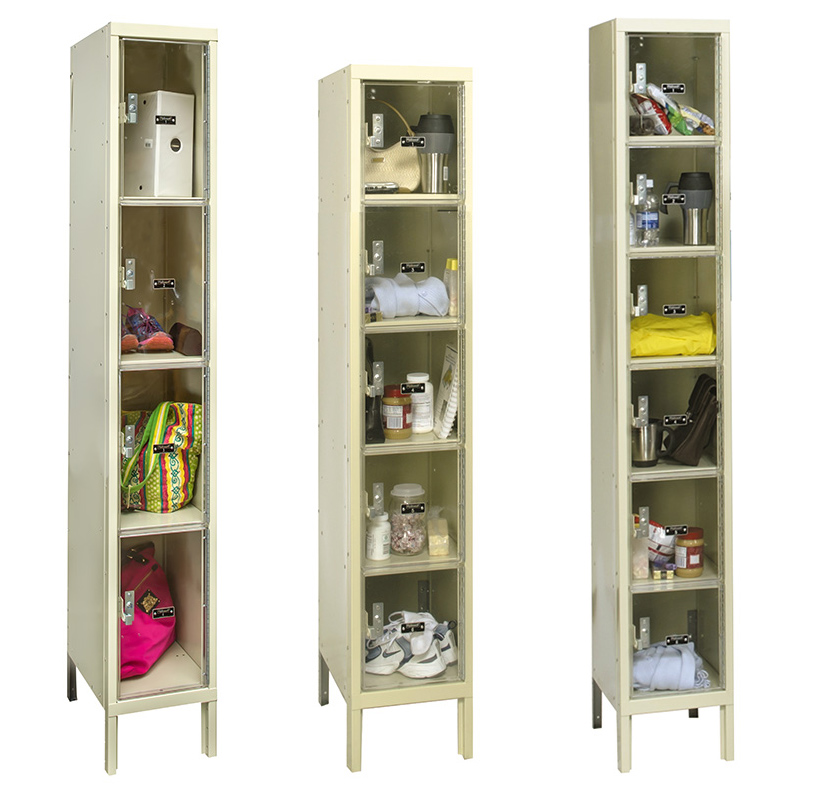

4, 5, & 6 Tier Units

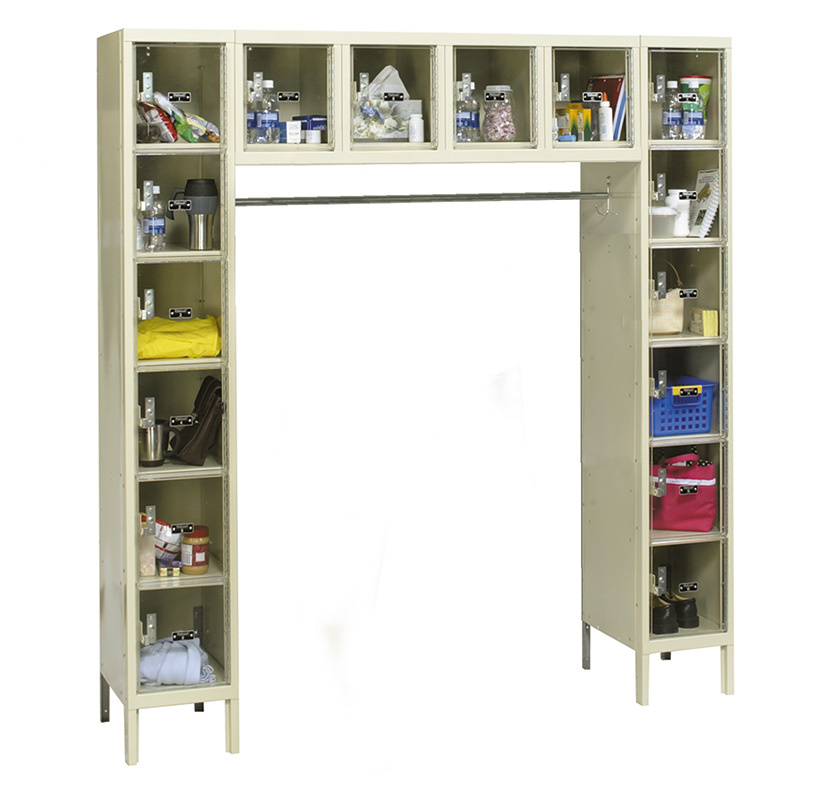

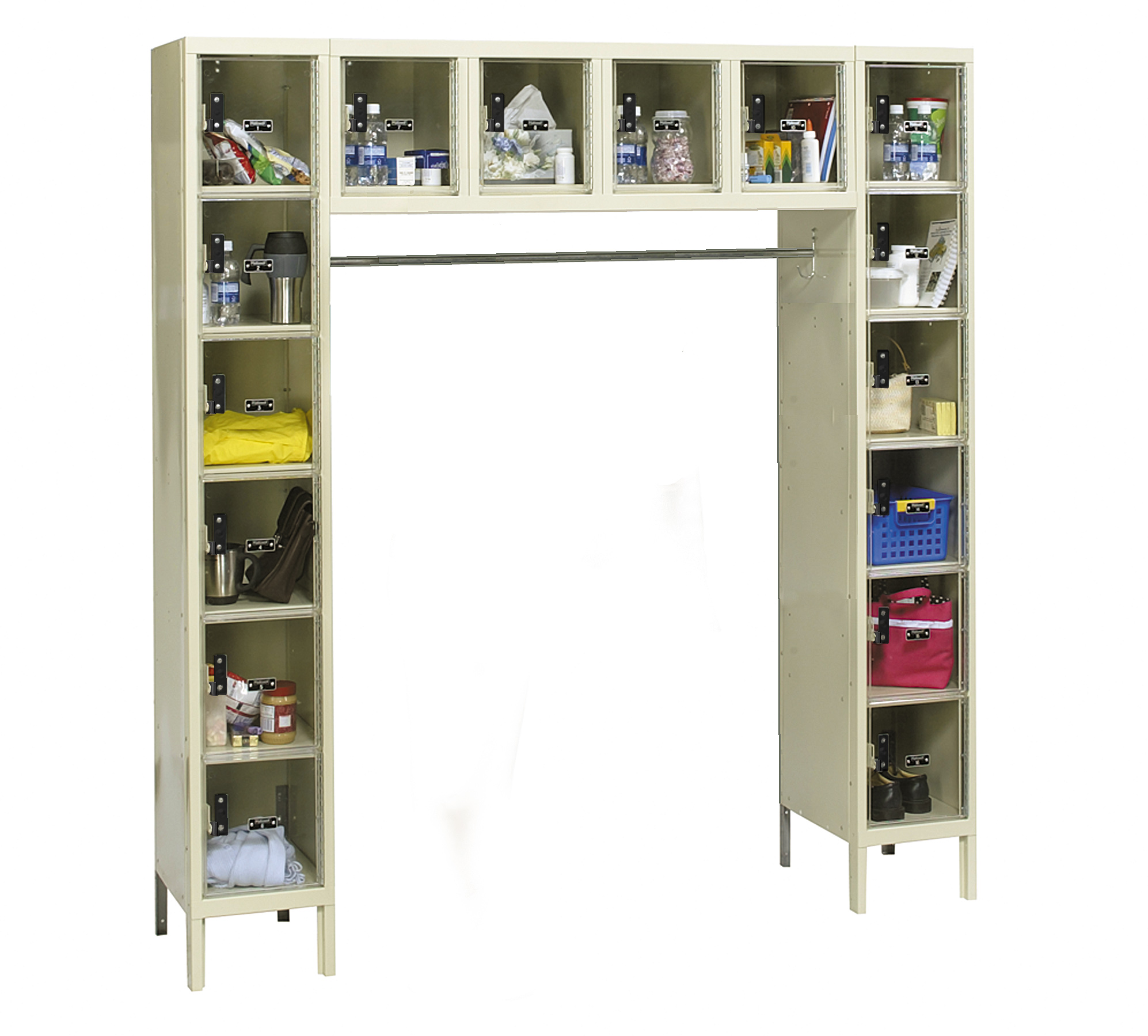

16 Person Locker

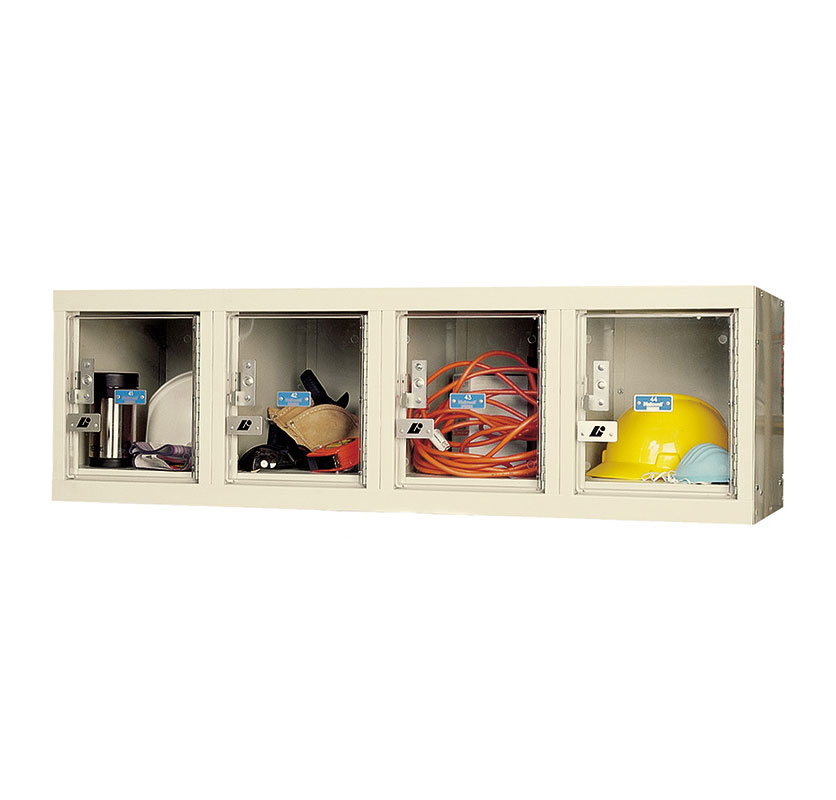

4-Wide Wall Mount

Ideal For Monitoring Locker Contents

Clear doors for unobstructed viewing

High strength injection molded polycarbonate doors for content viewing. Safety-View Plus Box lockers are available in four tier, five tier, six tier, sixteen person and 4-wide wall mount

Note: Meets UL flammability standards, Polycarbonate is approved by the Consumer Product Safety Commission

Features:

Aluminum number plates (#1-up) with mounting hardware are included.
Locks are not included.
Safety-View plus doors provide an unobstructed view of locker contents
Can be ordered fully-assembled or knock-down for assembly at destination
Order 3-wide units for best value. Order 1-wide units to complete quantity needed for each continuous row

Body/Frame Description:

Knock-down, 24 gauge

Body/Frame:

KD

Body Styles:

four tier, five tier, six tier, sixteen person and 4-wide wall mount

Doors:

High strength injection-molded clear polycarbonate doors for unobstructed content viewing

Handle:

Single-point projecting friction catch door pull prepared for both padlock or built-in lock

Hinges:

Continuous piano type

Hooks:

None

Coat Rods:

Standard on Sixteen person

Shelves:

None

Legs:

6" high legs are standard. Lockers without legs are available for a nominal charge

Catalog

Safety-View Plus™ Windowed Box Lockers

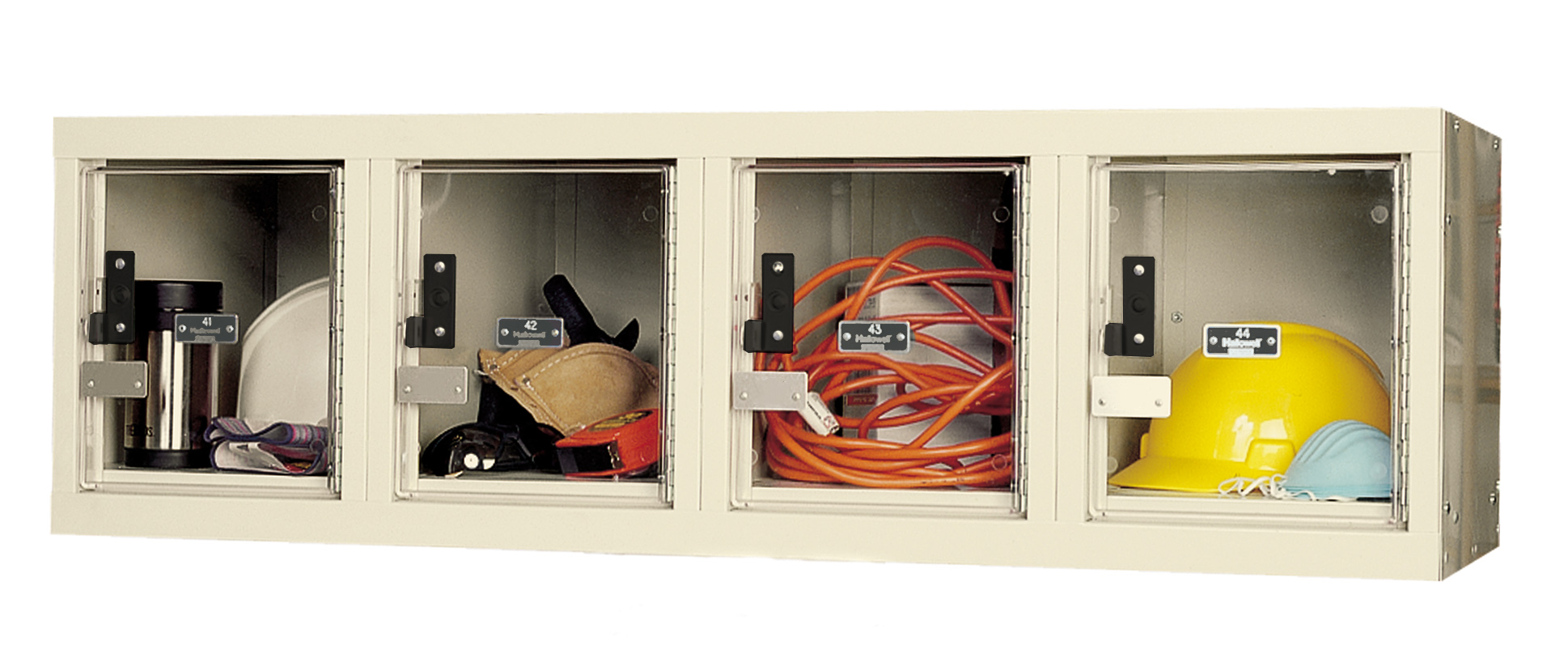

4-Wide Wall Mount
Width	Depth	Opening Height	Frame Height	Openings per Group	Tier	KD	Assembled	colors
48	18	12	12/14-3/4	4	4-Wide Wall Mount	USVP1482-4WM	USVP1482-4WMA	Tan, Light Gray

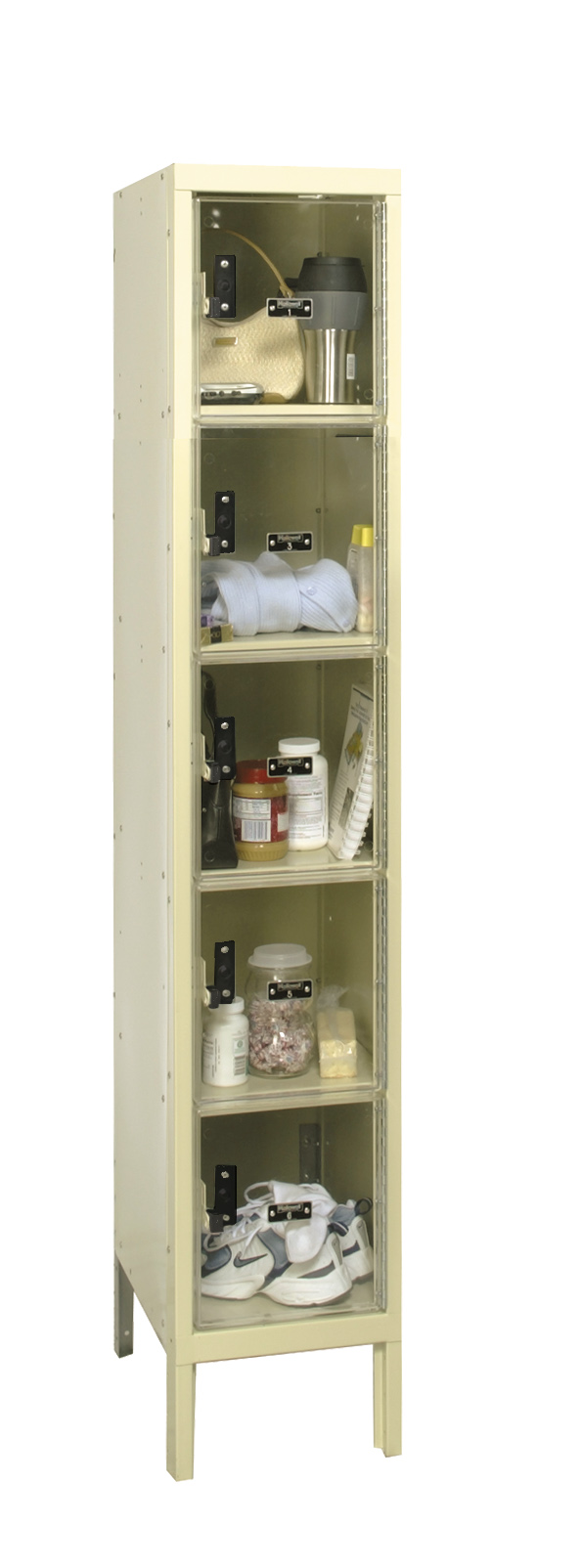

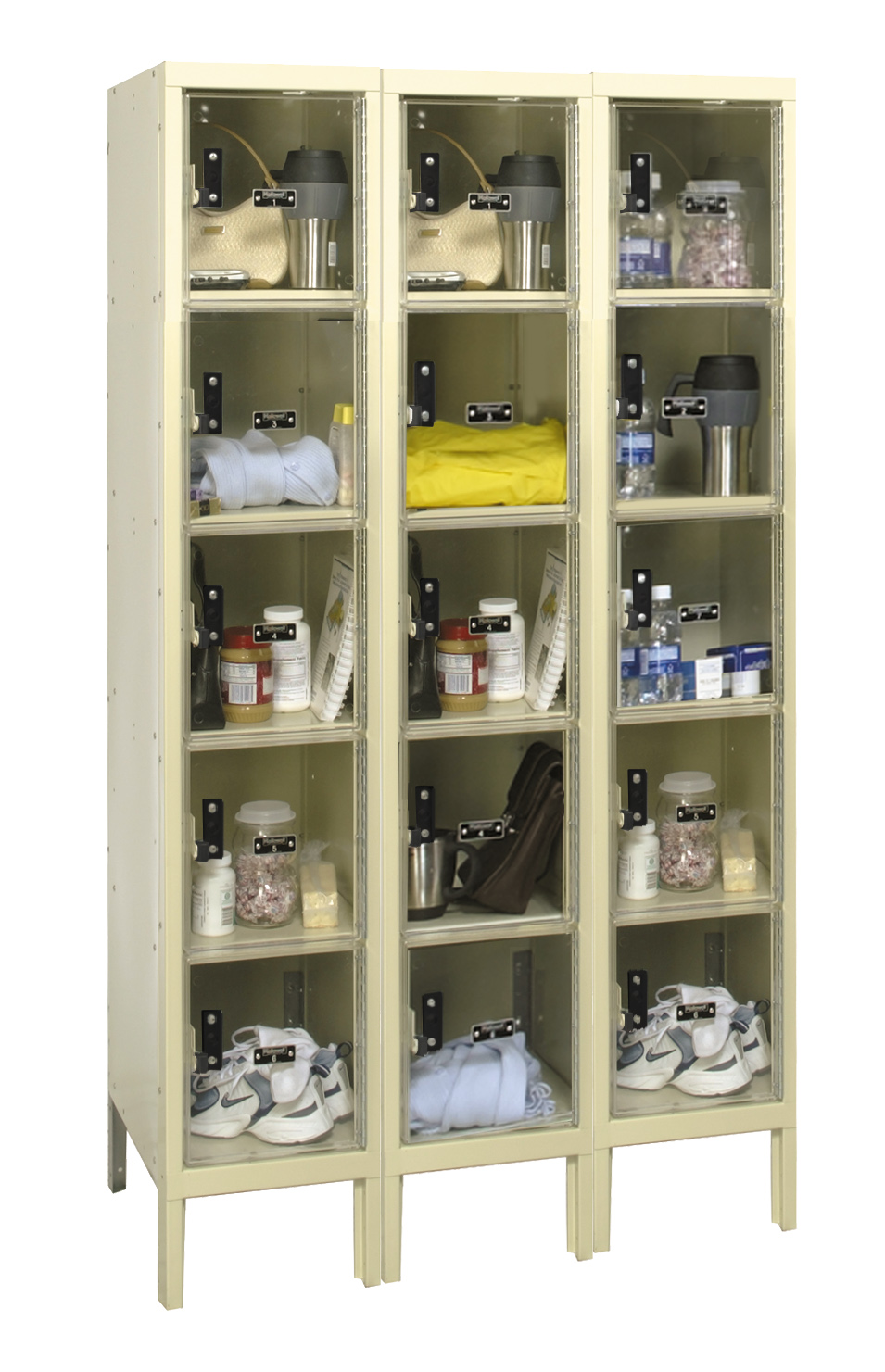

Five Tier
Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	KD	Assembled	colors
12	12	12	12/66	1-wide	5	5	USVP1226-5	USVP1226-5A	Tan, Light Gray
12	12	12	12/66	3-wide	5	5	USVP3226-5	USVP3226-5A	Tan, Light Gray
12	15	12	12/66	1-wide	5	5	USVP1256-5	USVP1256-5A	Tan, Light Gray
12	15	12	12/66	3-wide	5	5	USVP3256-5	USVP3256-5A	Tan, Light Gray
12	18	12	12/66	1-wide	5	5	USVP1286-5	USVP1286-5A	Tan, Light Gray
12	18	12	12/66	3-wide	5	5	USVP3286-5	USVP3286-5A	Tan, Light Gray

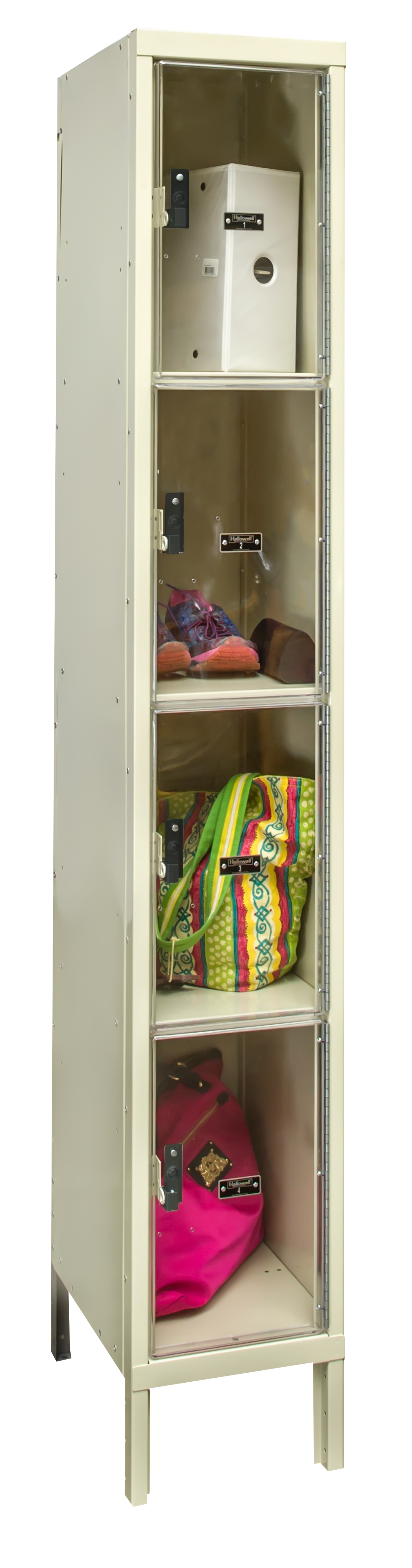

Four Tier
Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	KD	Assembled	colors
12	12	18	18/78	1-wide	4	4	USVP1228-4	USVP1228-4A	Tan, Light Gray
12	12	18	18/78	3-wide	12	4	USVP3228-4	USVP3228-4A	Tan, Light Gray

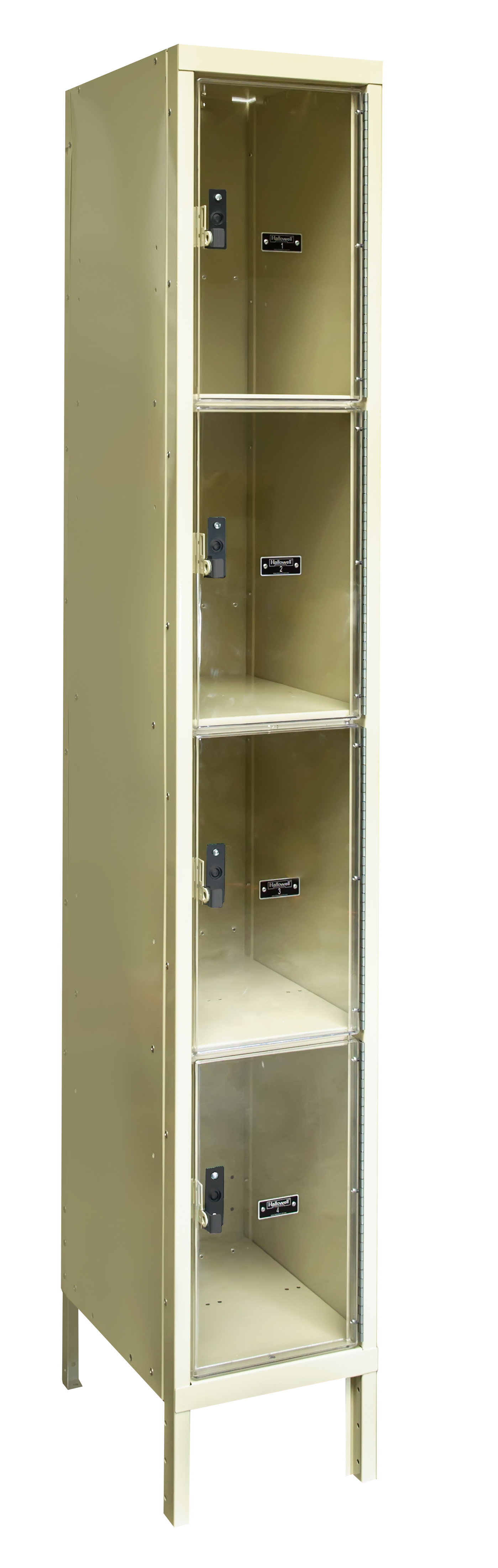

12	15	18	18/78	1-wide	4	4	USVP1258-4	USVP1258-4A	Tan, Light Gray

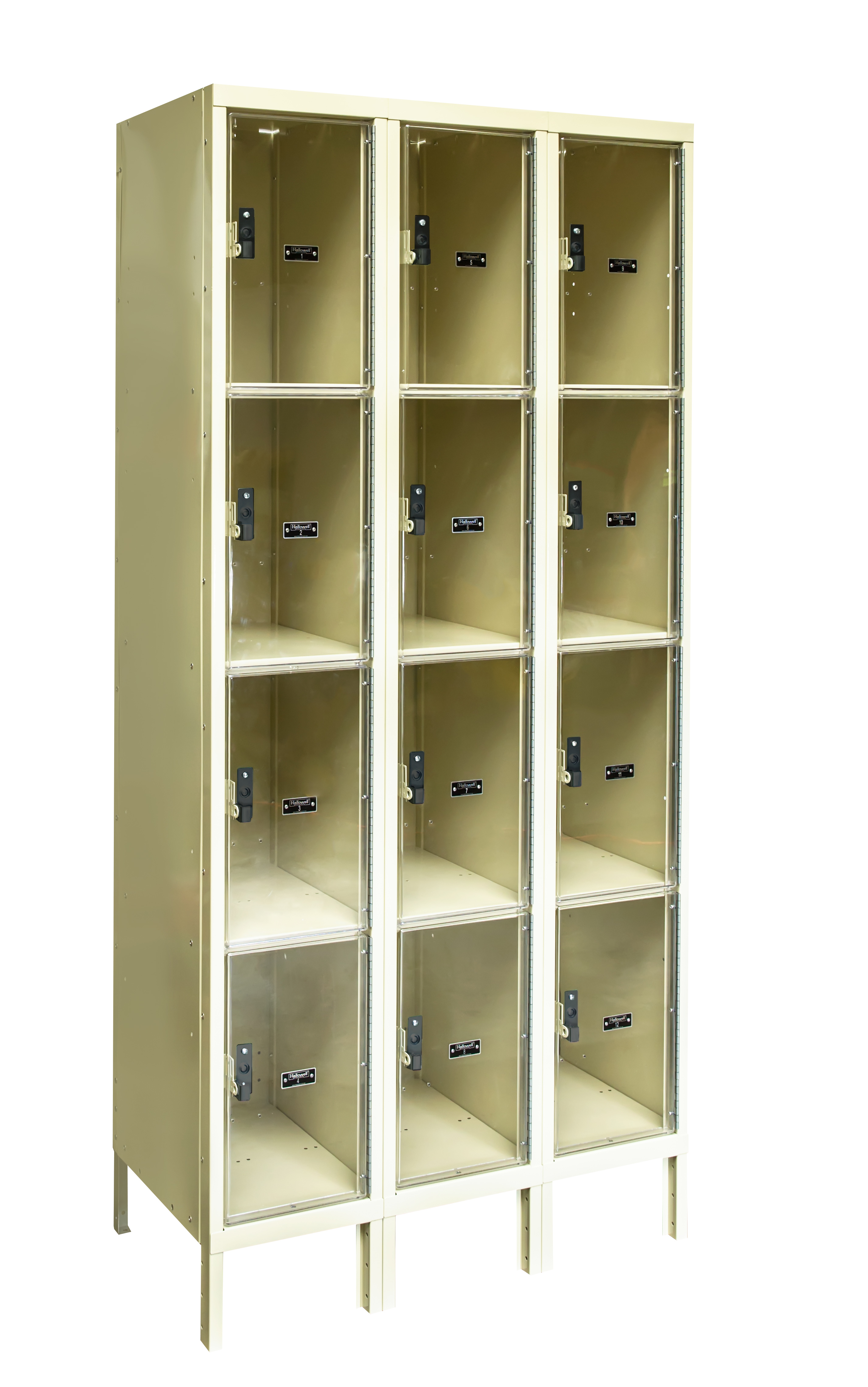

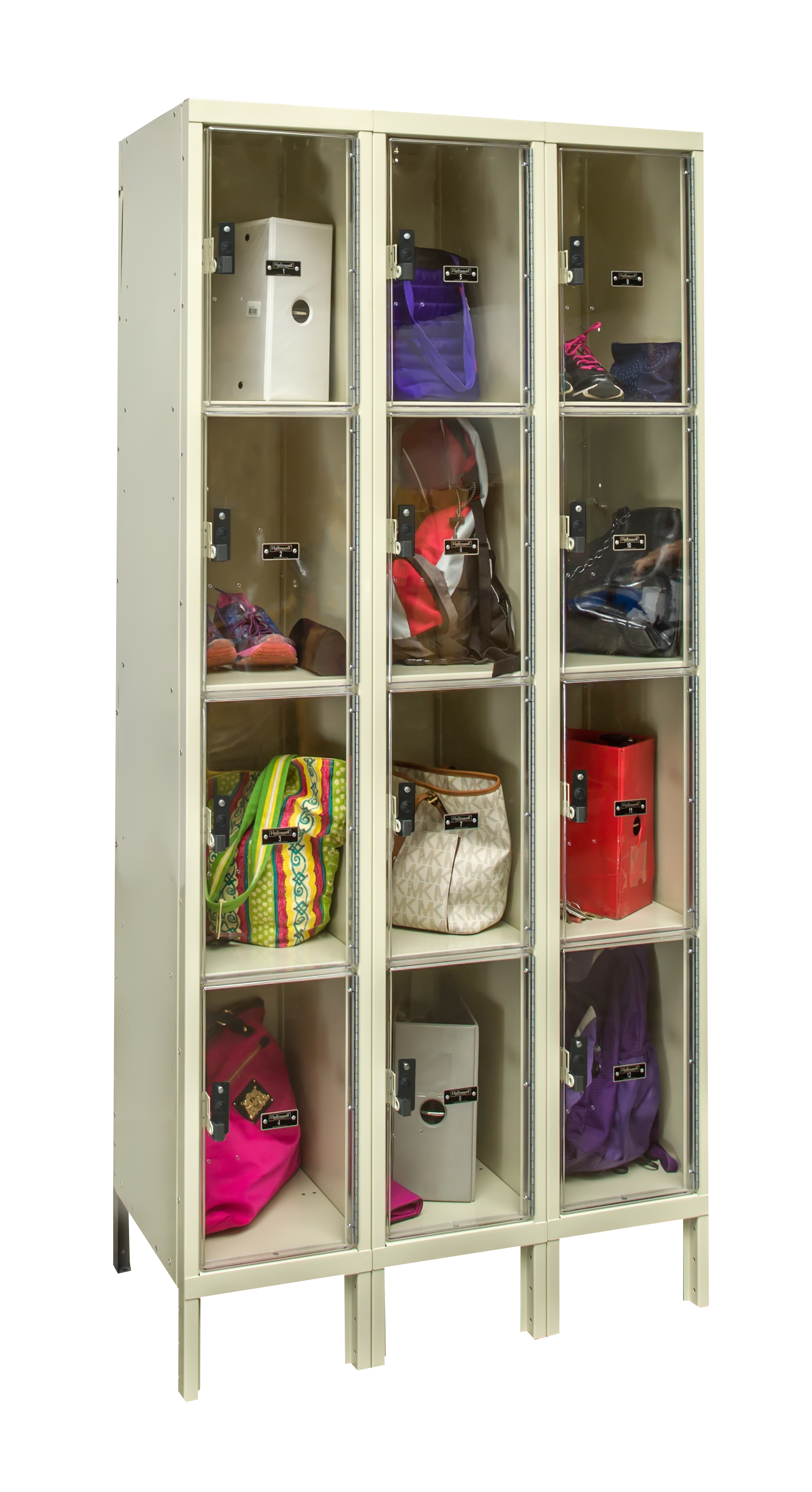

12	15	18	18/78	3-wide	12	4	USVP3258-4	USVP3258-4A	Tan, Light Gray
12	18	18	18/78	1-wide	4	4	USVP1288-4	USVP1288-4A	Tan, Light Gray
12	18	18	18/78	3-wide	12	4	USVP3288-4	USVP3288-4A	Tan, Light Gray

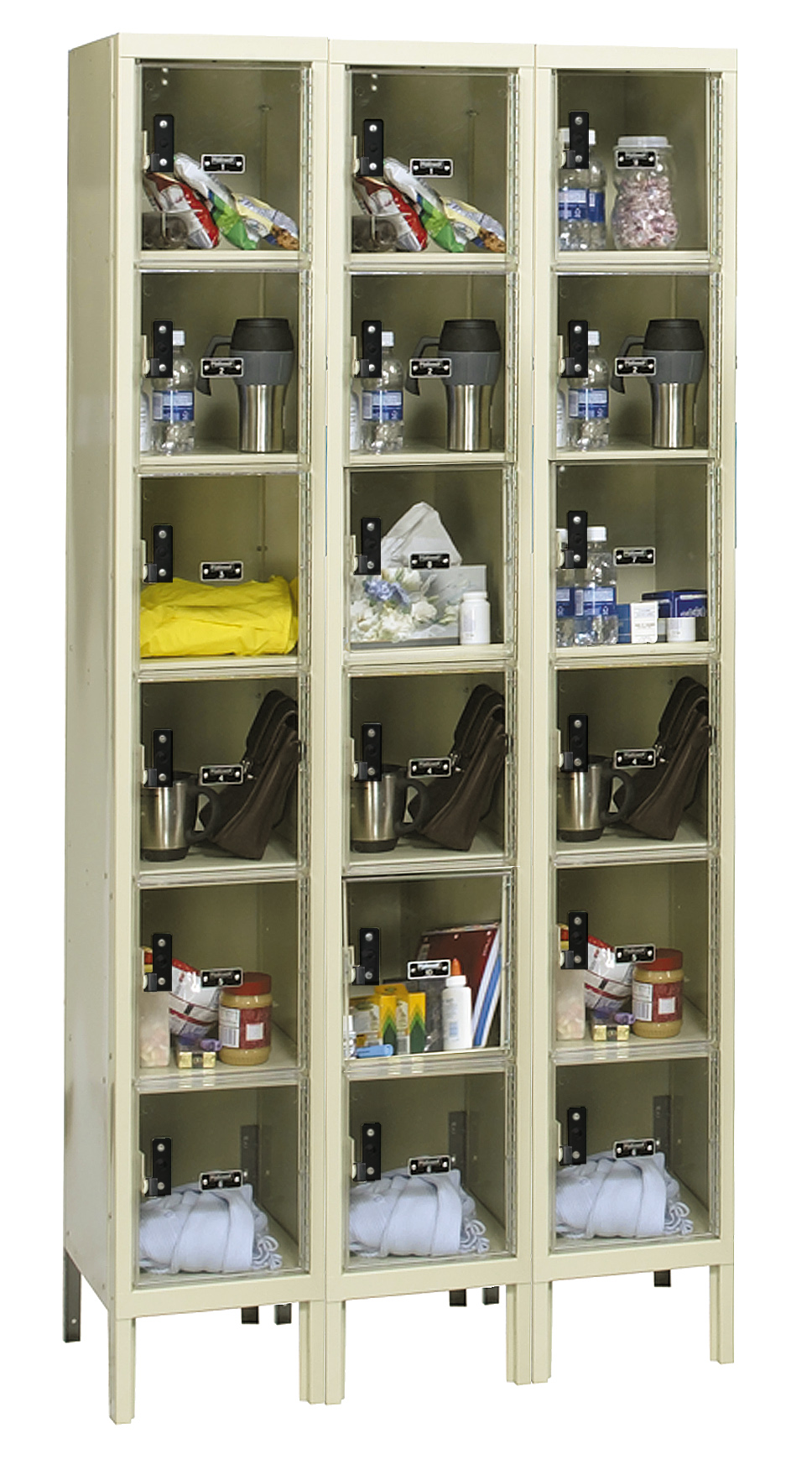

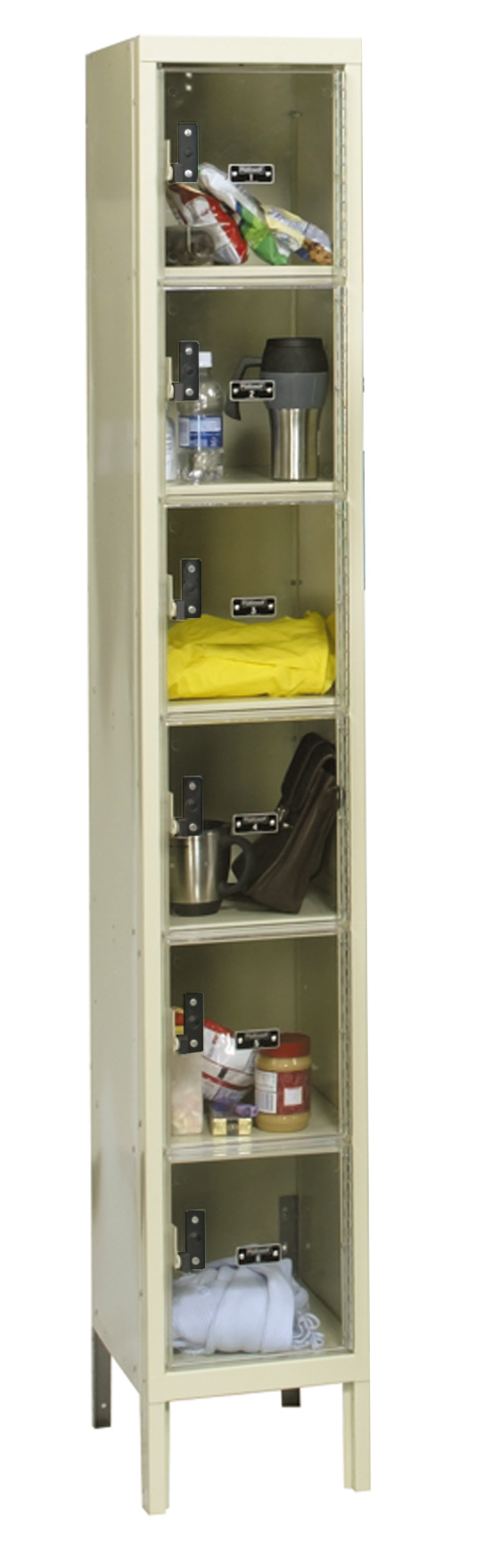

Six Tier
Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	KD	Assembled	colors
12	12	12	12/78	1-wide	6	6	USVP1228-6	USVP1228-6A	Tan, Light Gray
12	12	12	12/78	3-wide	18	6	USVP3228-6	USVP3228-6A	Tan, Light Gray
12	15	12	12/78	1-wide	6	6	USVP1258-6	USVP1258-6A	Tan, Light Gray
12	15	12	12/78	3-wide	18	6	USVP3258-6	USVP3258-6A	Tan, Light Gray
12	18	12	12/78	1-wide	6	6	USVP1288-6	USVP1288-6A	Tan, Light Gray
