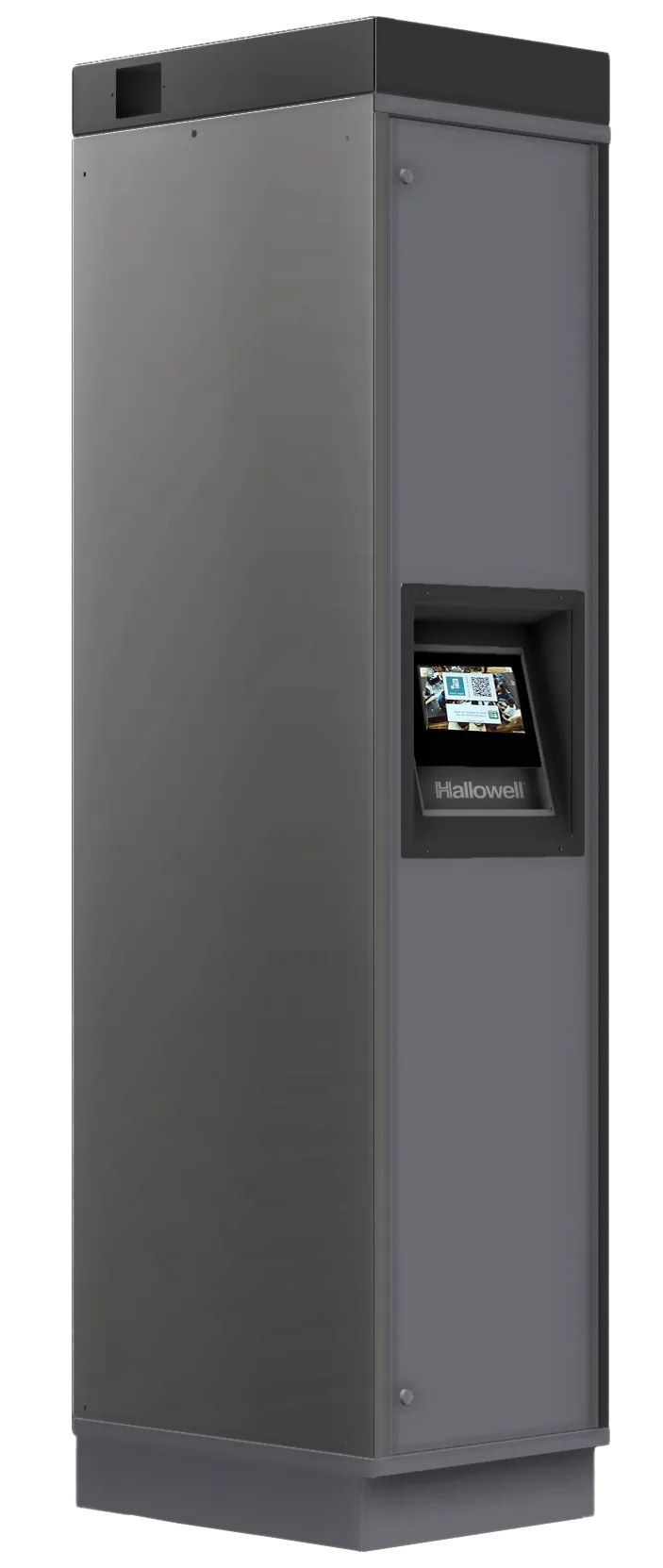

1 Kiosk

The touchscreen kiosk is the starter column of your system.

It includes a built-in RFID reader and serves as the user-facing access point.

Users interact via

their RFID badge,
the mobile web app, or
PIN entry on the touchscreen.

Connect to your network via

ethernet or
mobile hotspot.

LokrIQ - Cloud-Based Software and Management dashboards

Cloud-Based Smart Locker Management from Anywhere

Core Features

Real-time monitoring and audit trails; know who accessed which locker and when
Usage analytics and reporting
Multi-site management from a single dashboard
Remote configuration and credential control
Automatic door opening available
Locker rental and reservation workflows

Power Up

Plug the kiosk into a standard duplex power outlet and connect to your network via ethernet. That’s it - manage from anywhere.

Overview
Catalog
Components
Color
Documents

Back to top

Product Overview

Asset Management

Secure and track tools, devices, and equipment with a full audit trail.

Package Management

Automate pick-up and drop-off for deliveries, parts, and supplies.

Staff Lockers

Give employees secure personal storage they can access with their existing badge.

PPE & Safety Equipment

Distribute and track protective gear with accountability at every step.

Device Charging

Charge laptops, tablets, or radios in-locker with available USB-C or 110v power.

Reserve & Rent

Enable self-service locker reservations and rental workflows.

One System.
Many Applications.

Hallowell LokrIQ^TM smart lockers support a wide range of industrial and commercial applications

Features:

Custom sizes available on a build-to-order basis.

Body/Frame Description:

All-welded steel construction Built-in wiring channels for cable protection

Body/Frame:

Fully Framed All-Welded

Body Styles:

Standard dimensions: 36”W × 24”D × 72”H

Doors:

Solid - Optional windowed doors

Handle:

Standard Lock: Electronic smart lock with RFID, mobile, and PIN access
Enhanced Lock: Adds USB-C device charging and LED compartment lighting

Handle Options:

Standard or Enhanced

Upgrade Description:

Optional: 110v In-Locker Power: Add-on for charging larger devices or equipment

Legs:

Optional 4” welded closed base

Catalog

Built Tough. Built to Last.

Industrial-Grade Smart Lockers. Made in the USA.

Unit Configurations

Unit	Description
Kiosk Unit	Touchscreen interface with built-in RFID reader. Required starter column.
2-Door Unit	Two large compartments
4-Door Unit	Four compartments
6-Door Unit	Six compartments

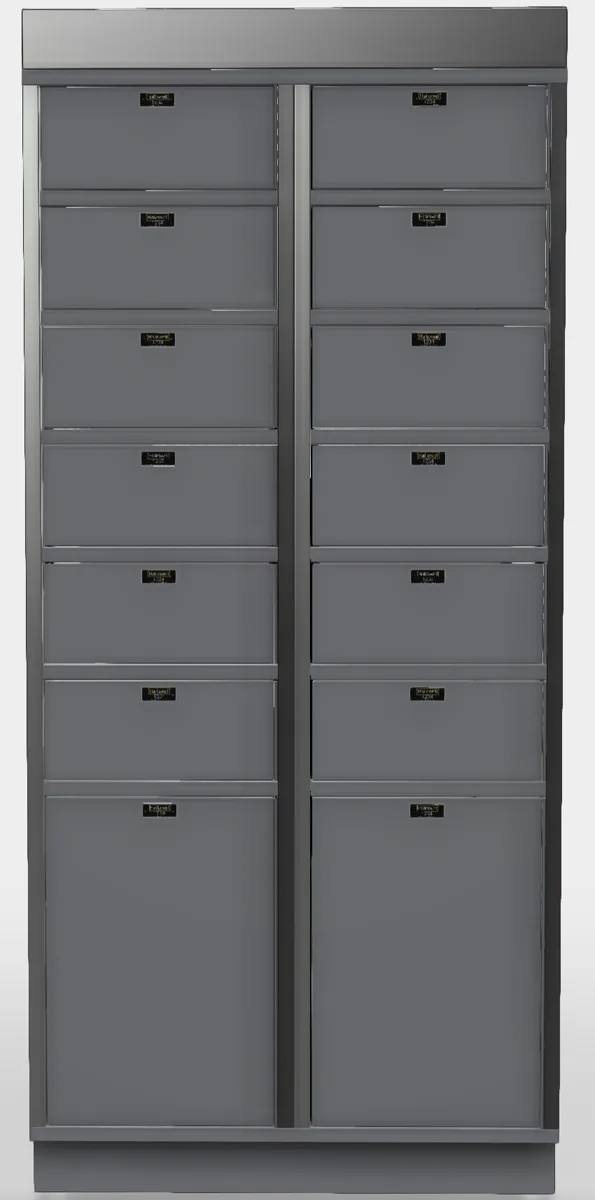

10-Door Mix-Use	Mixed compartment sizes for varied storage needs
14-Door Mix-Use	Mixed compartment sizes

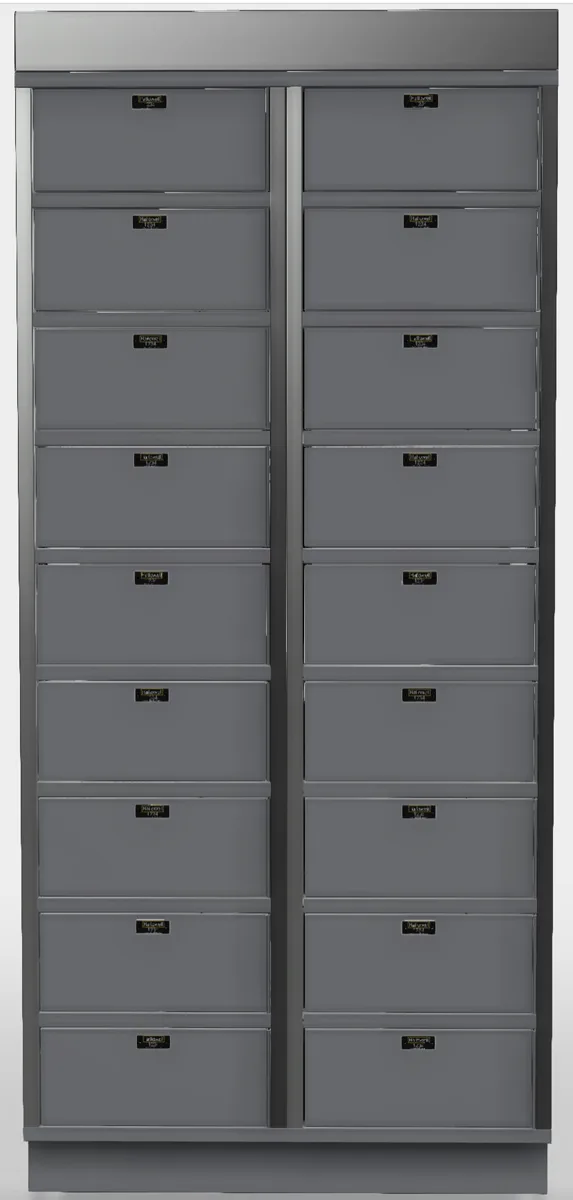

18-Door Mix-Use	Maximum capacity with mixed compartment sizes

Physical Specs

All-welded steel construction
Standard dimensions: 36”W × 24”D × 72”H
Powder coat finish - gray standard; alternate colors available build-to-order
Built-in wiring channels for cable protection
4” boxed tops or sloped tops
Optional windowed doors
Optional 4” welded closed base
Custom sizes available on a build-to-order basis
Proudly made in the USA

Lock & Power Options

Standard Lock: Electronic smart lock with RFID, mobile, and PIN access
Enhanced Lock: Adds USB-C device charging and LED compartment lighting
Optional 110v In-Locker Power: Add-on for charging larger devices or equipment

Easy Connect

Easy Smart Locker Installation Up and Running in Minutes

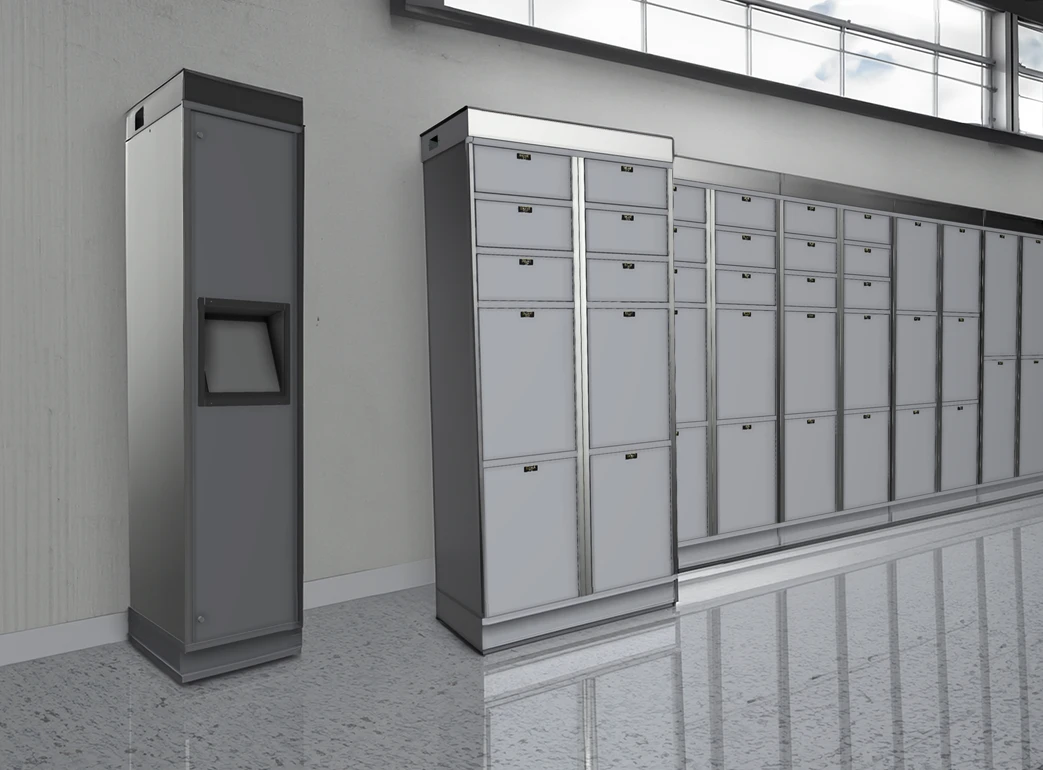

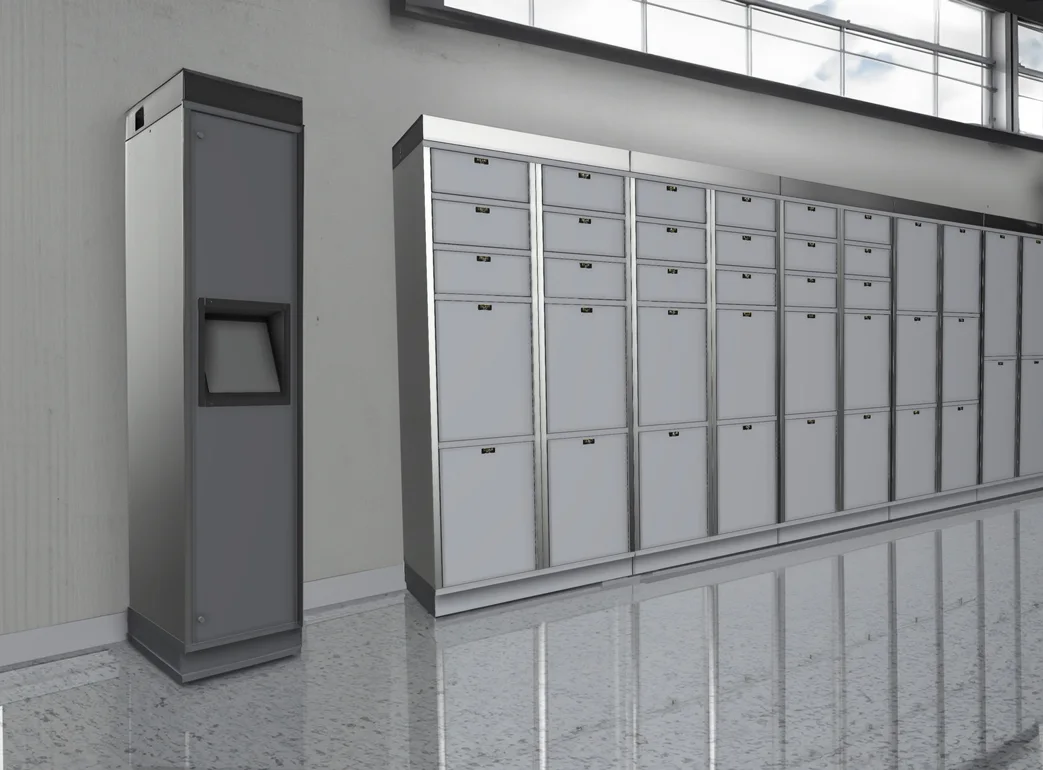

Step 1

Anchor

Bring in your locker units and anchor them securely to the wall.

Step 2

Connect

Link as many units as you need using the built-in wiring channels. No exposed cables.

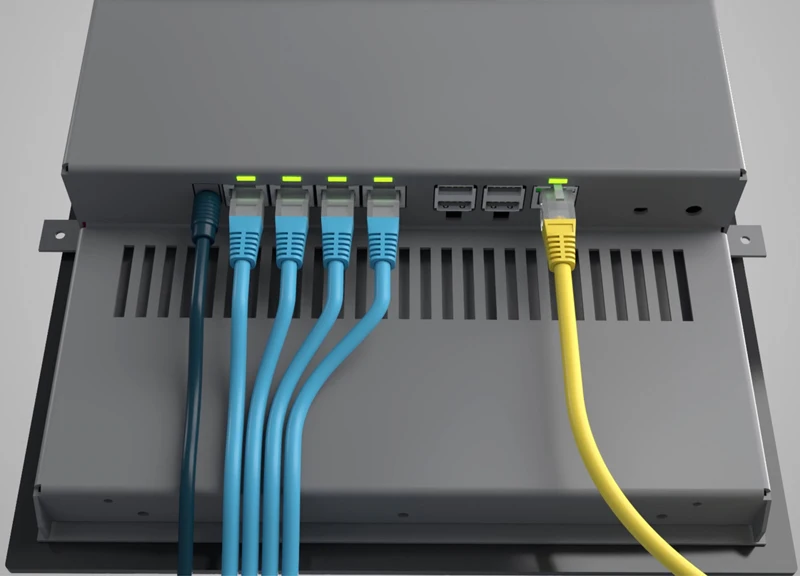

Step 3

Power Up

Plug the kiosk into a standard duplex power outlet and connect to your network via ethernet. That’s it - manage from anywhere.

Components

Simple Setup. Plug-and-Play Operation.

LokrIQ is a Three-Component Smart Locker System that connects in minutes and manages from anywhere.

1 Kiosk

The touchscreen kiosk is the starter column of your system.

It includes a built-in RFID reader and serves as the user-facing access point.

Users interact via

their RFID badge,
the mobile web app, or
PIN entry on the touchscreen.

Connect to your network via

ethernet or
mobile hotspot.

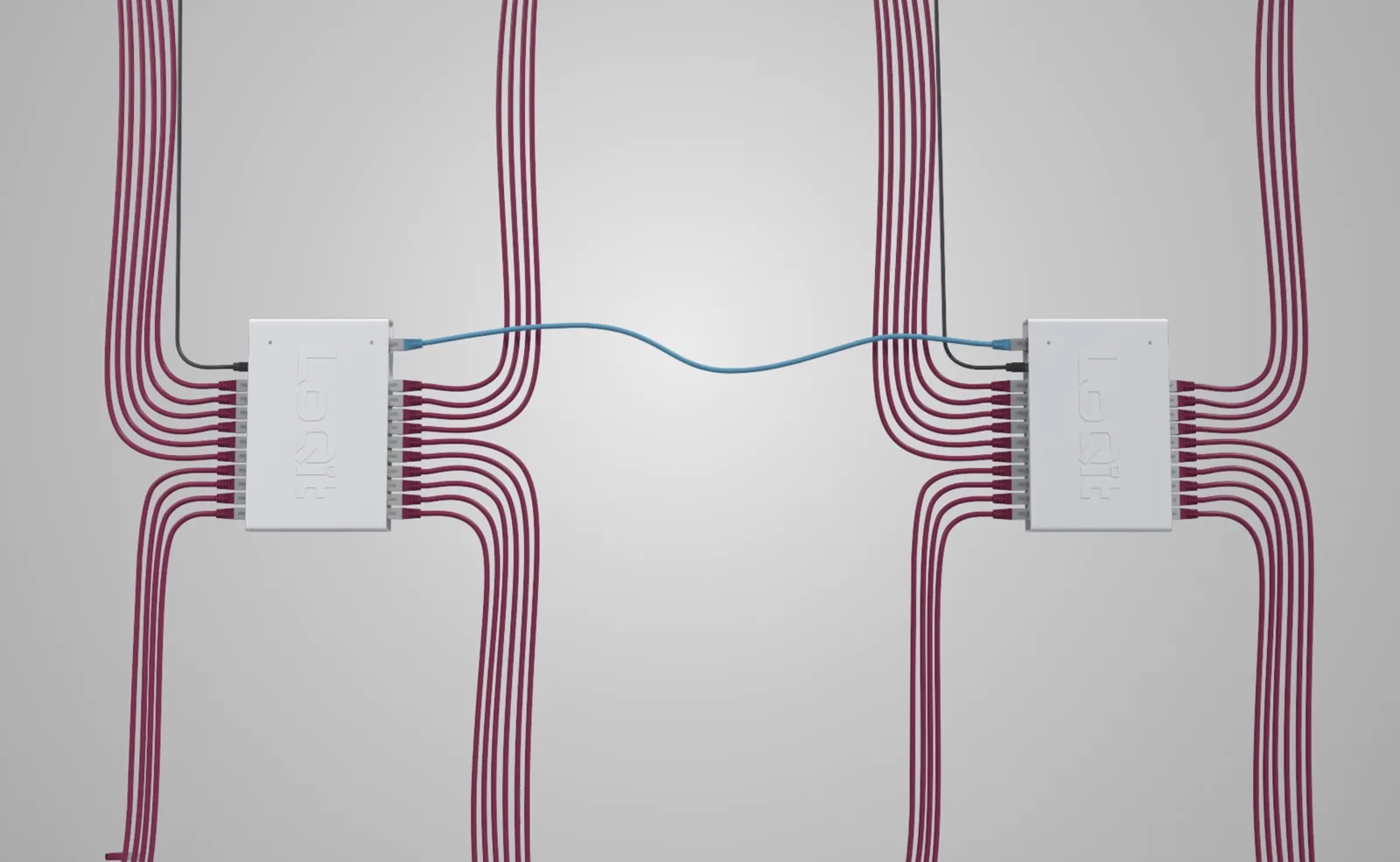

2 Controller

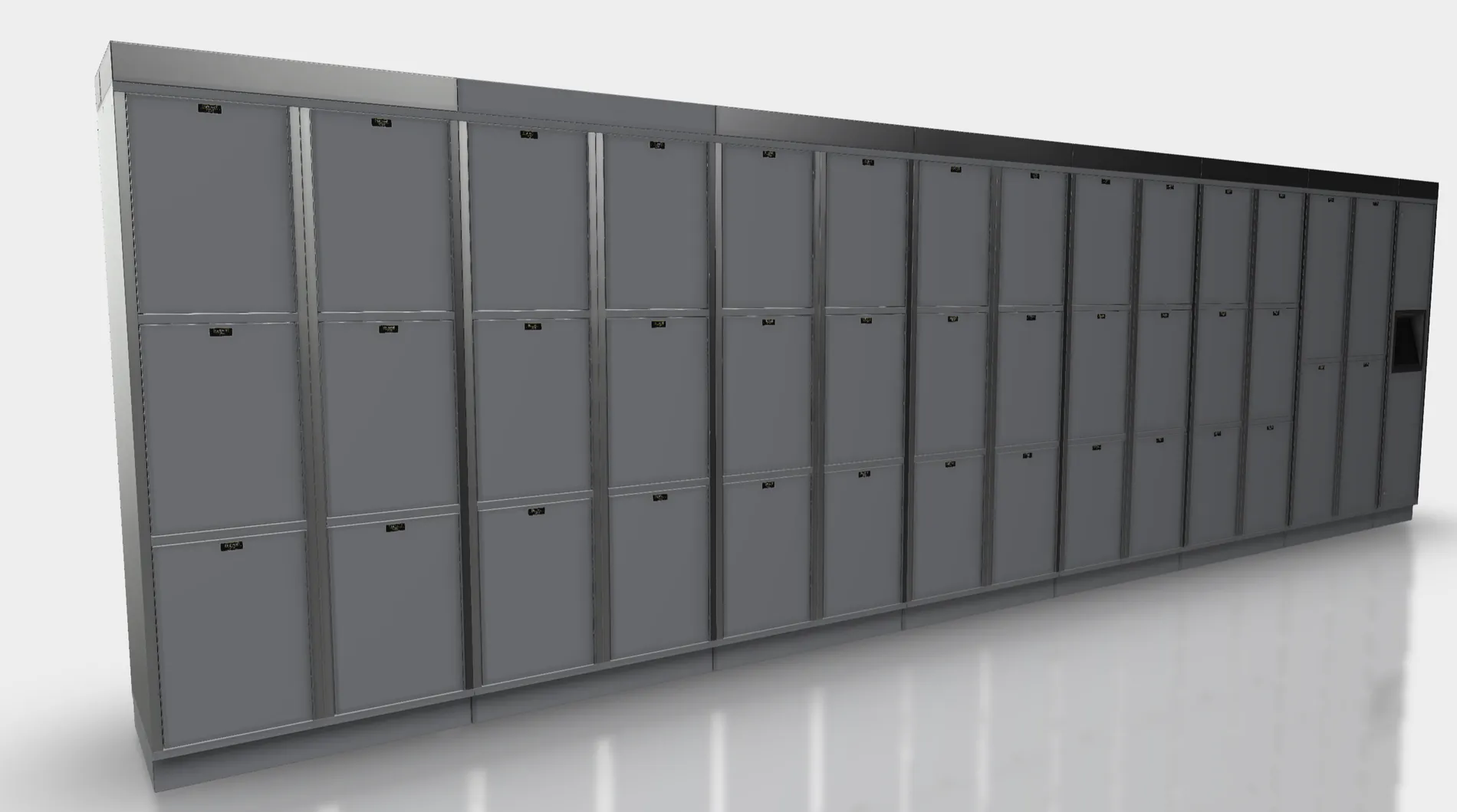

Connects the kiosk to your locker openings and communicates with the kiosk. Easily daisy chain both power and data to 40 controllers (800 lockers) on a single kiosk.

3 Locker Units

Add as many locker columns as you need.

Units connect to each other through built-in wiring channels and anchor securely to the wall.

Configure with any of the standard sizes of door for whatever you are storing.

Units connect to each other through built-in wiring channels and anchor securely to the wall.

Access Methods

Three Ways to Access Your Smart Locker

RFID Badge

Use your existing company ID or access badge.
No new credentials needed.

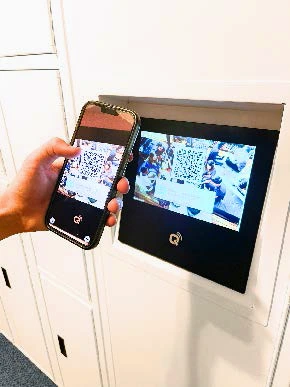

Mobile App

Access and manage lockers from your phone via QR code scan or the LokrIQ web app (PWA). Users only see the lockers they’re authorized to use.

PIN Code

Enter a PIN directly on the kiosk touchscreen for badge-free access.

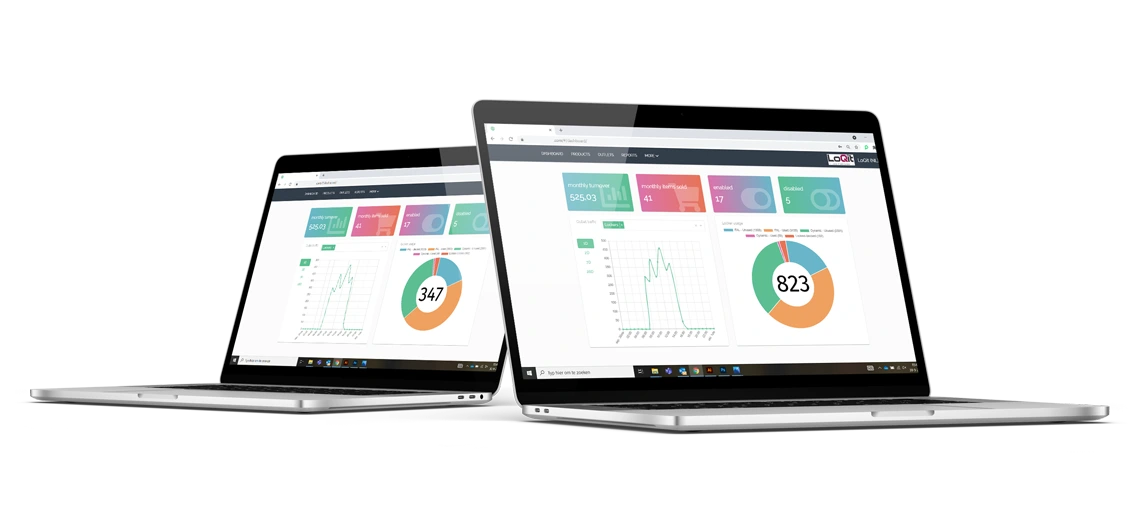

Cloud-Based Smart Locker Management from Anywhere

LokrIQ’s cloud-based software gives you real-time visibility and control over every locker across every location.

Core Features

Real-time monitoring and audit trails; know who accessed which locker and when
Usage analytics and reporting
Multi-site management from a single dashboard
Remote configuration and credential control
Automatic door opening available
Locker rental and reservation workflows

LokrIQ smart lockers integrate with your existing systems so user management stays in sync automatically.

Active Directory and Entra ID integration - when an employee is terminated in your directory,
- their locker access is automatically revoked
CSV user import for bulk provisioning
Access control system API - view and control lockers from your existing security dashboard
