HSPV-04 Single Point Ventilated Lockers

More from: Wardrobe Lockers Lockers

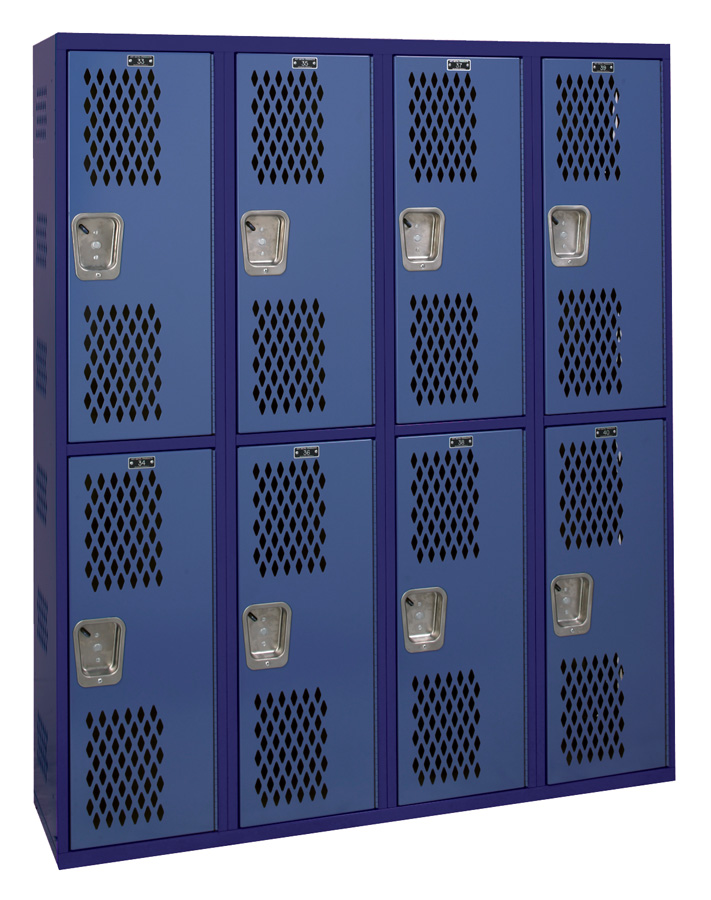

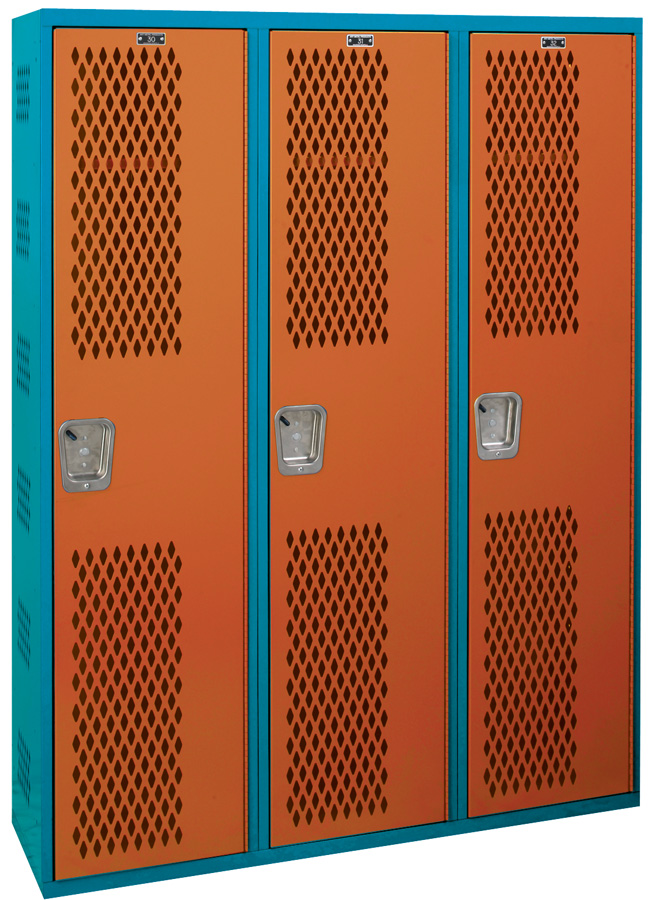

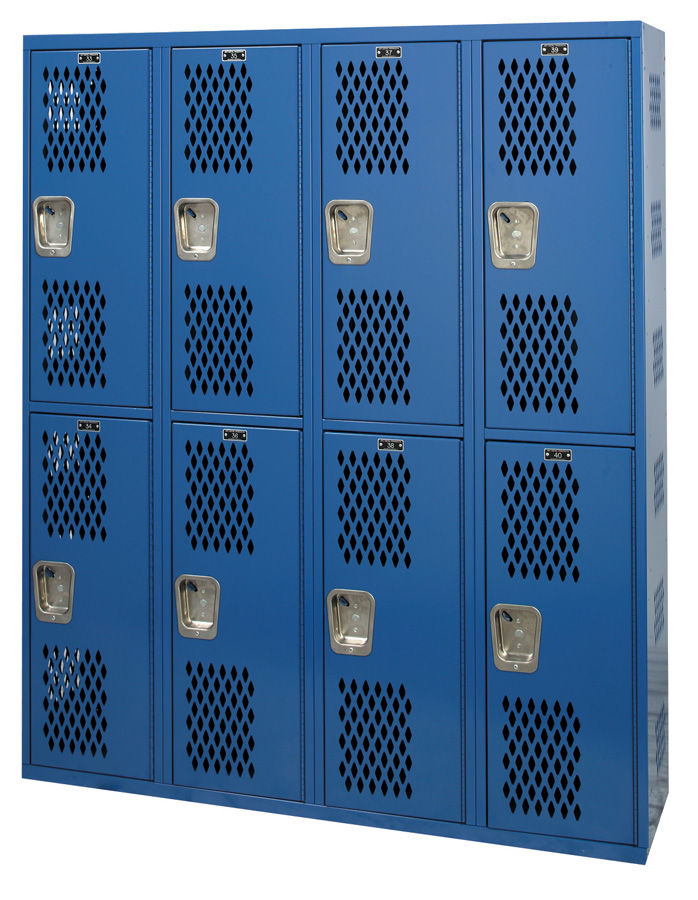

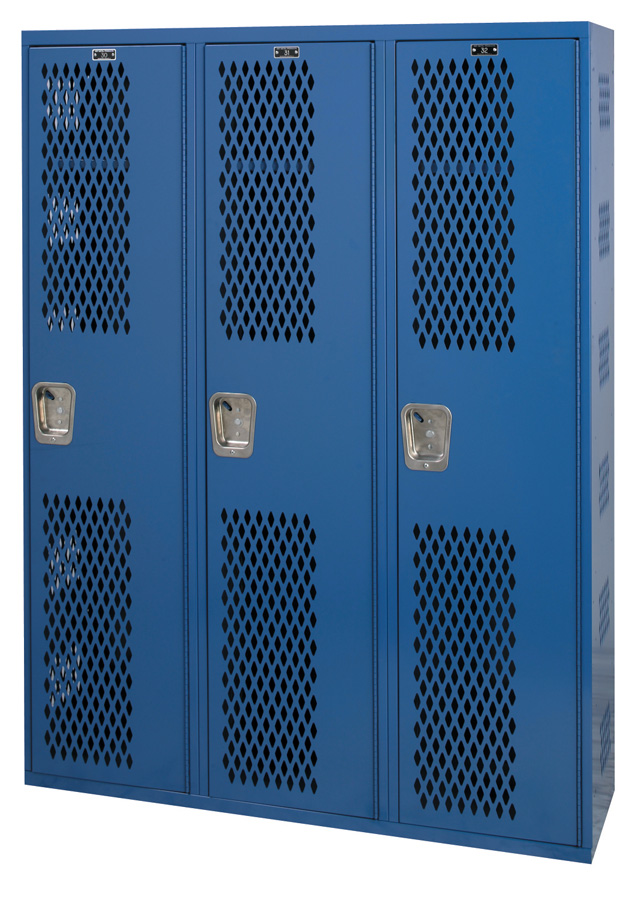

Unibody All-Welded Ventilated Lockers with Single-Point Latching

Ideal for sports teams!

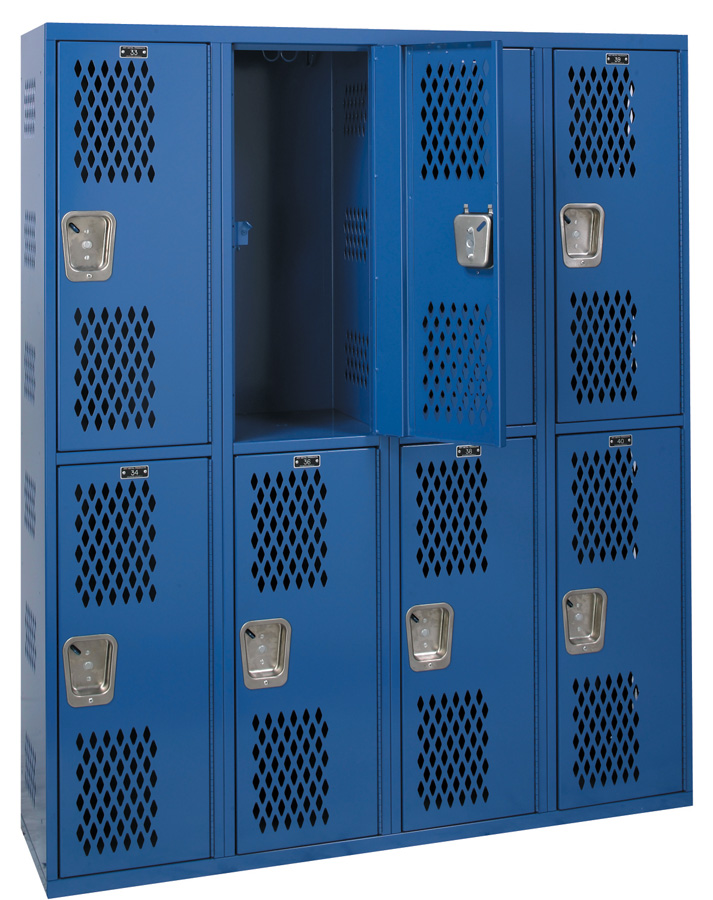

Piano Hinge

A full-length piano hinge runs from the top to the bottom of the door and provides sturdy and smooth door operation.

Diamond Perforated Ventilation

Athletic-type lockers use diamond perforated doors and sides to ensure proper ventilation.

Recessed Single Point

Deep drawn stainless steel recessed handle with single-point latching. The recessed handle protects the finish from being marred by a padlock.

Overview
Catalog
Components
Color
Documents

Back to top

Product Overview

Unibody All-Welded Ventilated Lockers with Single-Point Latching

Ideal for sports teams!

Body/Frame Description:

Unibody all-welded construction, 16 gauge 1-1/2" high continuous bottom with reinforcing channels welded to the underside at each side panel providing a rigid unit base, 16 gauge continuous top, 16 gauge diamond perforated sides are integral with front vertical frame, 18 gauge solid back

Body/Frame:

Unibody All-Welded

Body Styles:

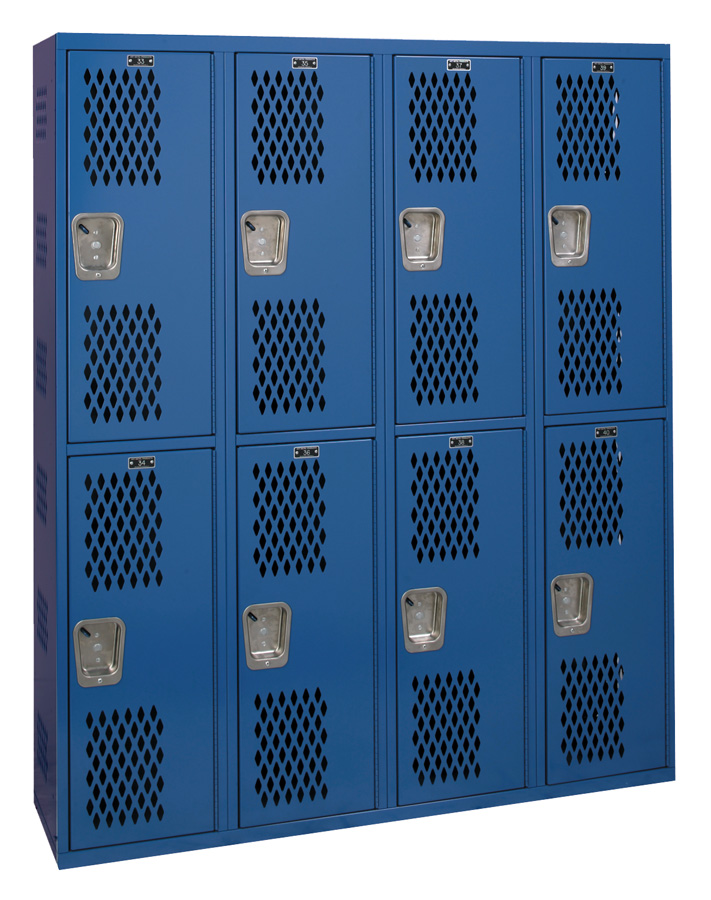

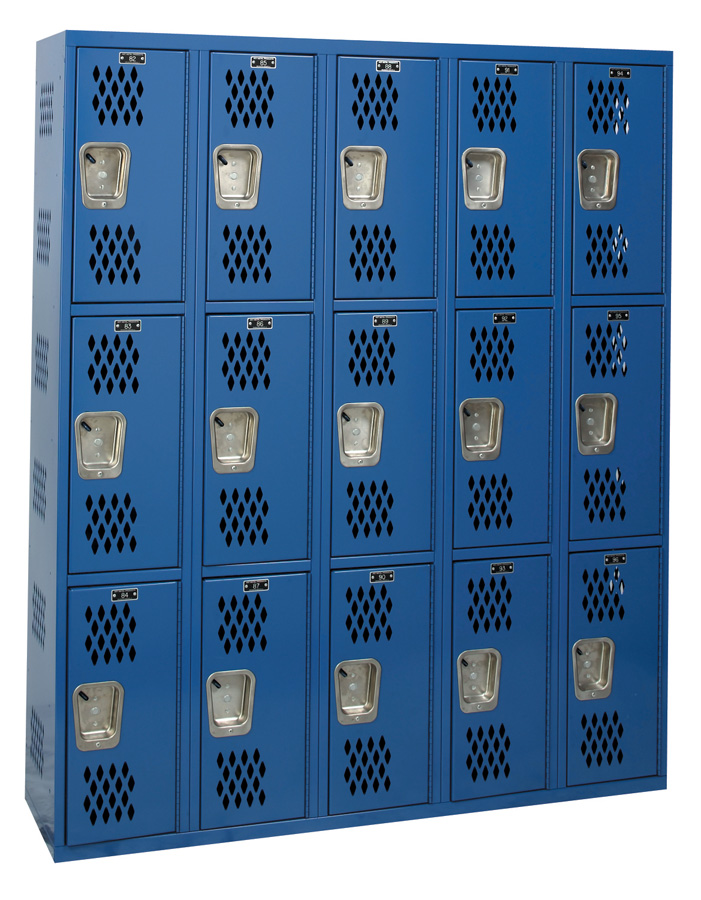

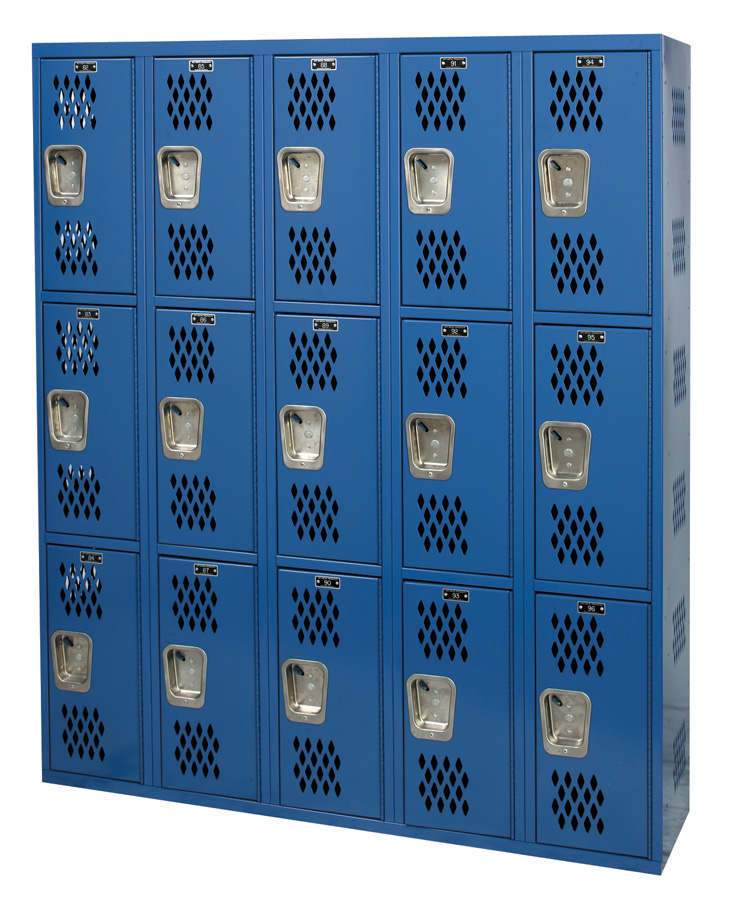

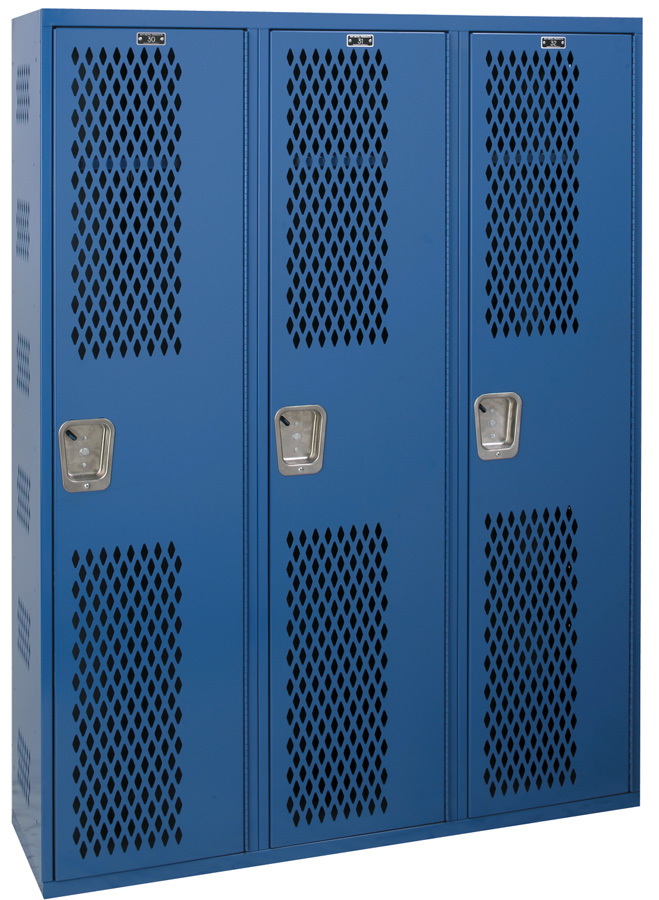

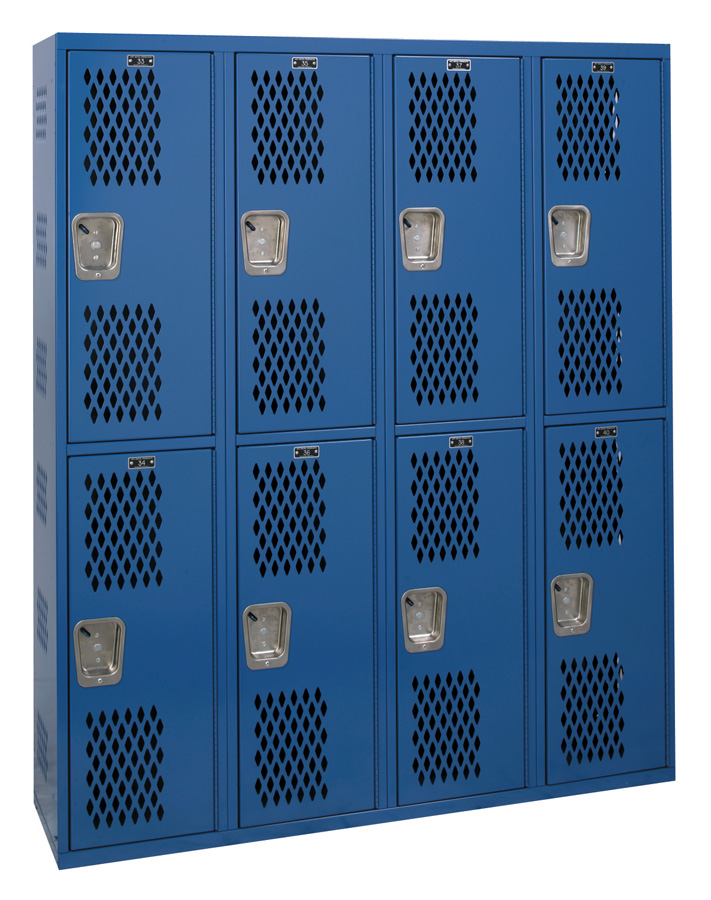

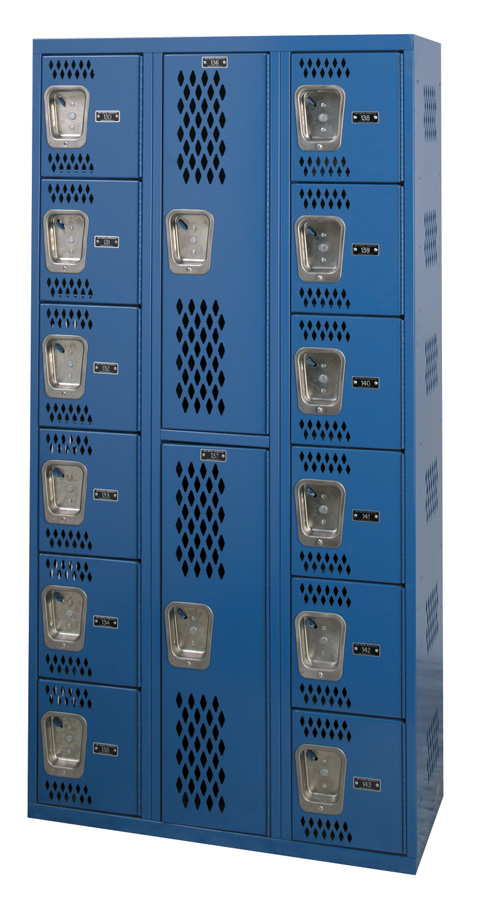

Single, double and triple tier

Doors:

14 gauge diamond perforated doors are standard. Plain, Secure-Air-Flow, Safety-View and louvered door styles are available

Door Strike:

Continuous vertical door strike at both hinge and latch side

Handle:

Deep-drawn seamless stainless steel recessed handle

Latching:

Single-Point latching

Hinges:

16 gauge continuous piano hinge

Hooks:

2-single hooks and 1-double hook is standard. 1-double hook only for triple tier and 1-double and 1-single hook for 9" wide openings 30" and higher

Coat Rods:

none

Shelves:

16 gauge hat shelf for single tier openings 60" and 72" high, 16 gauge intermediate shelves

Legs:

production lockers are supplied without legs unless otherwise specified

Catalog

Tier	Width	Depth	Column Heights
Single Tier	9" 12" 15" 18" 24"	12" 16" 18" 22"	48" 60" 72"
Double Tier	9" 12" 15" 18" 24"	12" 16" 18" 22"	48" 60" 72"
Triple Tier	9" 12" 15" 18" 24"	12" 16" 18" 22"	60" 72"
Note: All welded lockers will ship in multiple column units up to 60'' wide to meet Individual job site conditions.
