HGLV-02 Gravity Latch Ventilated Lockers

More from: Wardrobe Lockers Lockers

Including ventilated doors and sides.

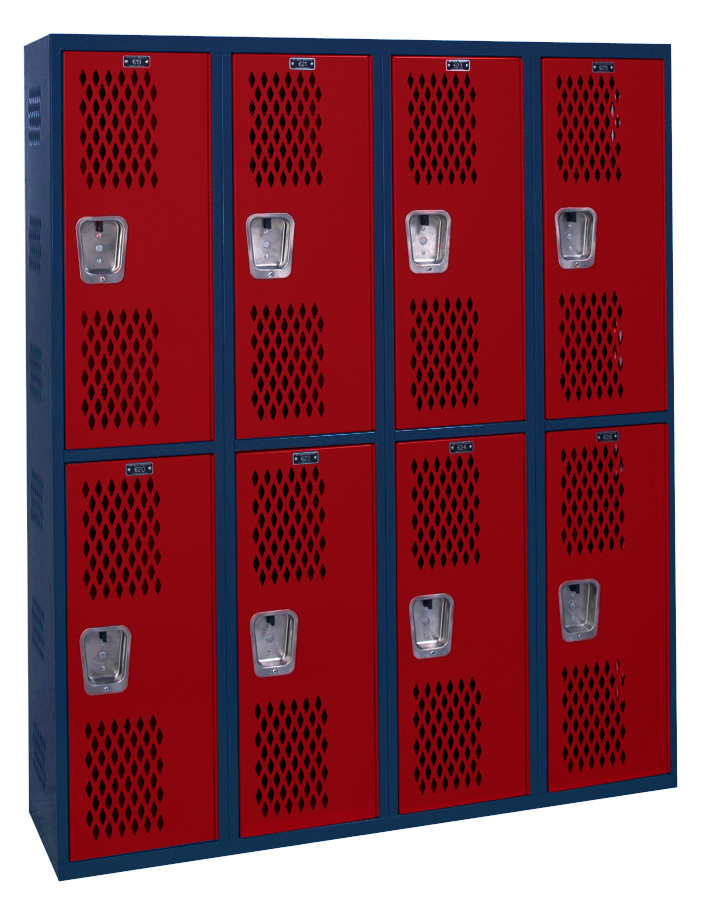

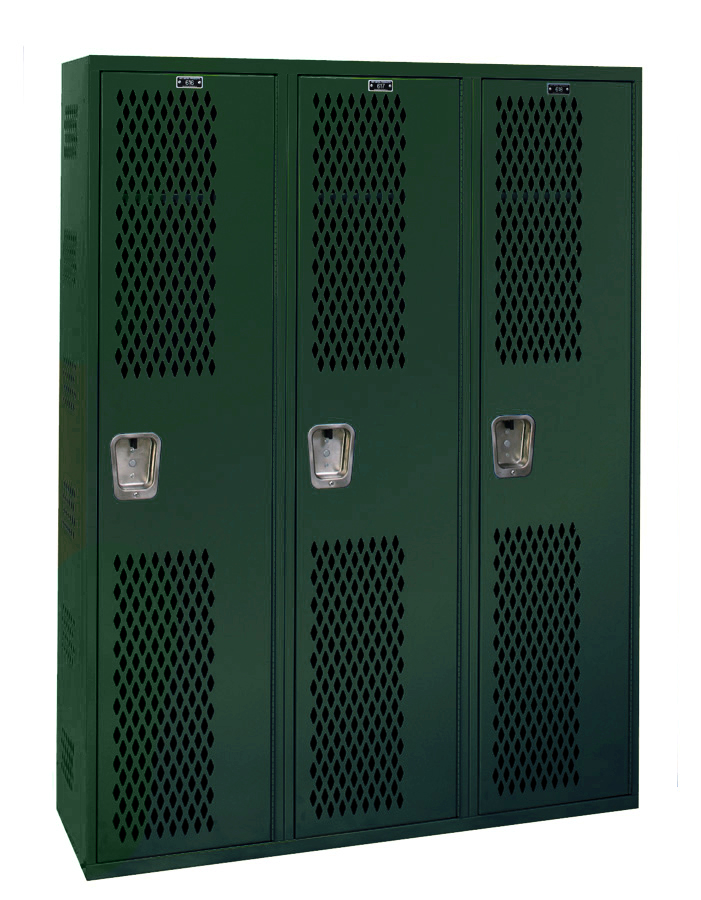

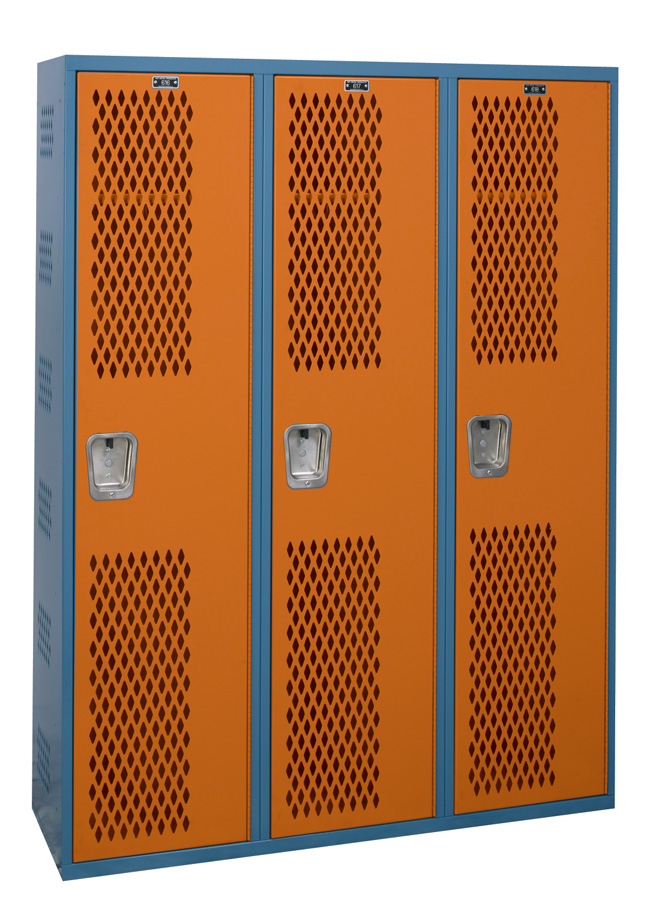

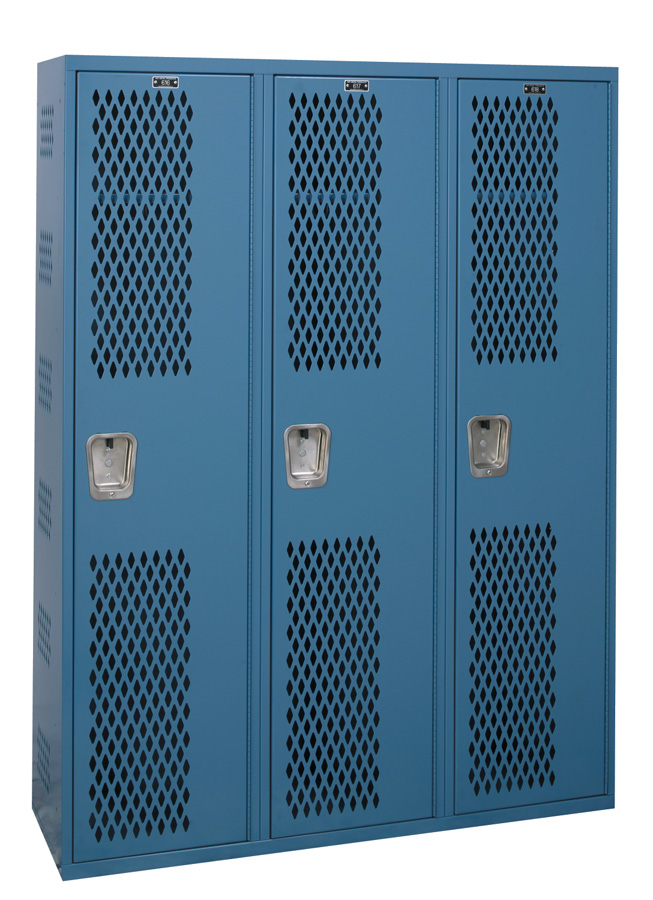

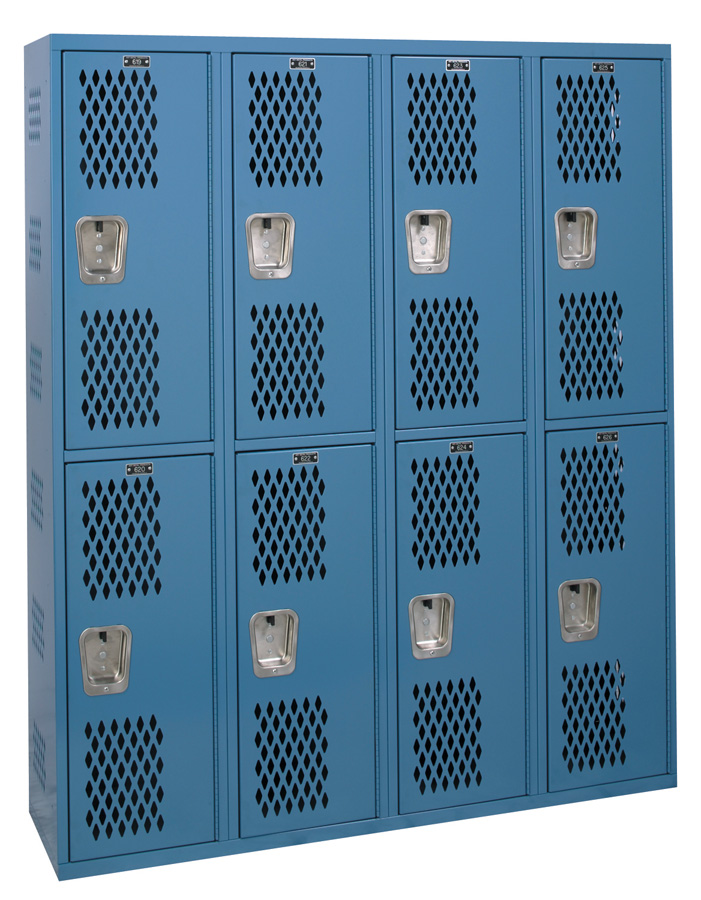

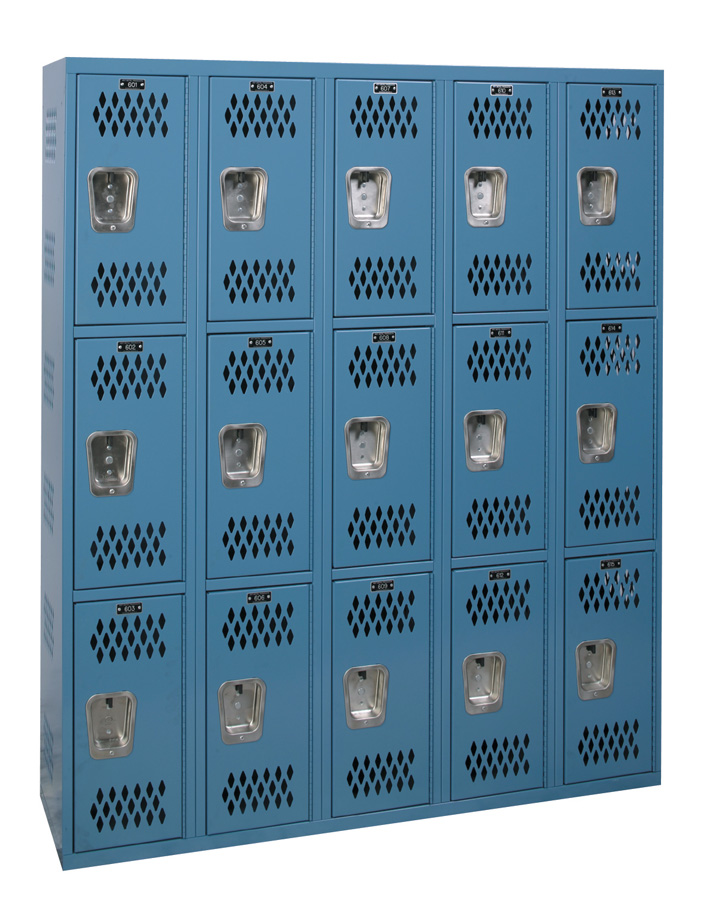

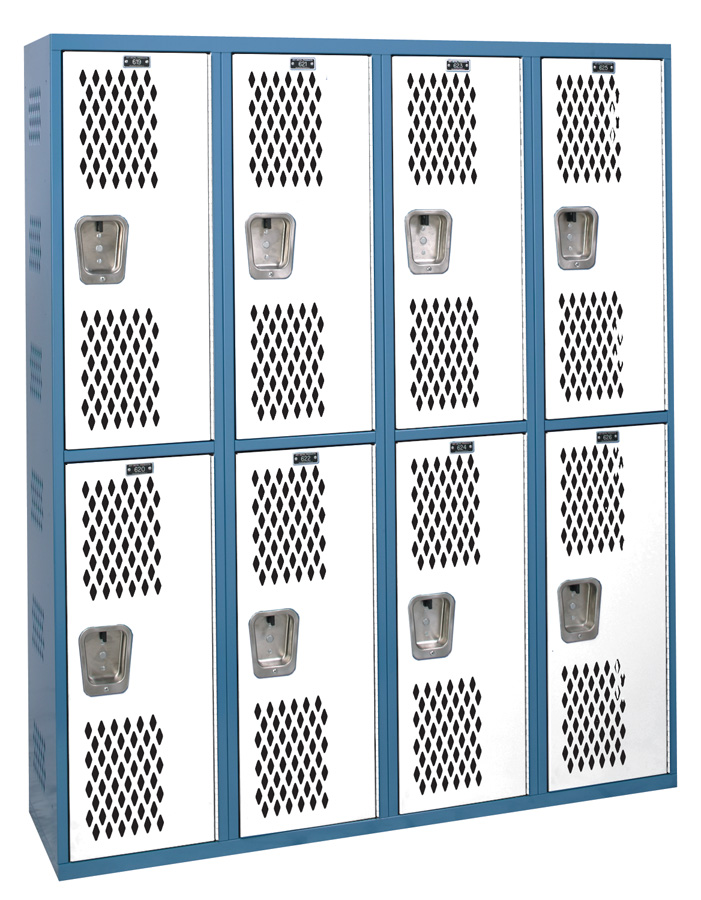

Available in Single-Tier, Double-Tier and Triple-Tier.

304 Stainless Steel Recessed Handle

Deep-drawn 304 stainless steel recessed handle multi-point gravity-lift type latching.

Piano Hinge

A full-length piano hinge runs from the top to the bottom of the door and provides sturdy and smooth door operation.

Diamond Perforated Ventilation

Diamond perforated doors and sides provide ample ventilation.

Overview
Catalog
Components
Color
Documents

Back to top

Product Overview

Unibody All-Welded Construction, Ventilated Lockers

Body/Frame Description:

Unibody all-welded construction, 16 gauge 1-1/2" high continuous bottom with reinforcing channels welded to the underside at each side panel providing a rigid unit base, 16 gauge continuous top, 16 gauge diamond perforated sides are integral with front vertical frame, 18 gauge solid back

Body/Frame:

Unibody All-Welded

Body Styles:

Single-Tier, Double-Tier and Triple-Tier

Doors:

14 gauge diamond perforated doors are standard. Plain, Secure-Air-Flow, Safety-View and louvered door styles are available

Door Strike:

Continuous vertical door strike at both hinge and latch side

Handle:

Deep-drawn seamless stainless steel recessed handle

Latching:

12 gauge latch hooks MIG welded to frame, gravity lift-type multi-point spring-loaded latching: 3-point latching for openings 48" high and higher, 2-point latching for openings 20" high thru 36" high

Hinges:

16 gauge continuous piano hinge

Hooks:

2-single hooks and 1-double hook is standard. 1-double hook only for triple tier and 1-double and 1-single hook for 9" wide openings 30" and higher

Coat Rods:

none

Shelves:

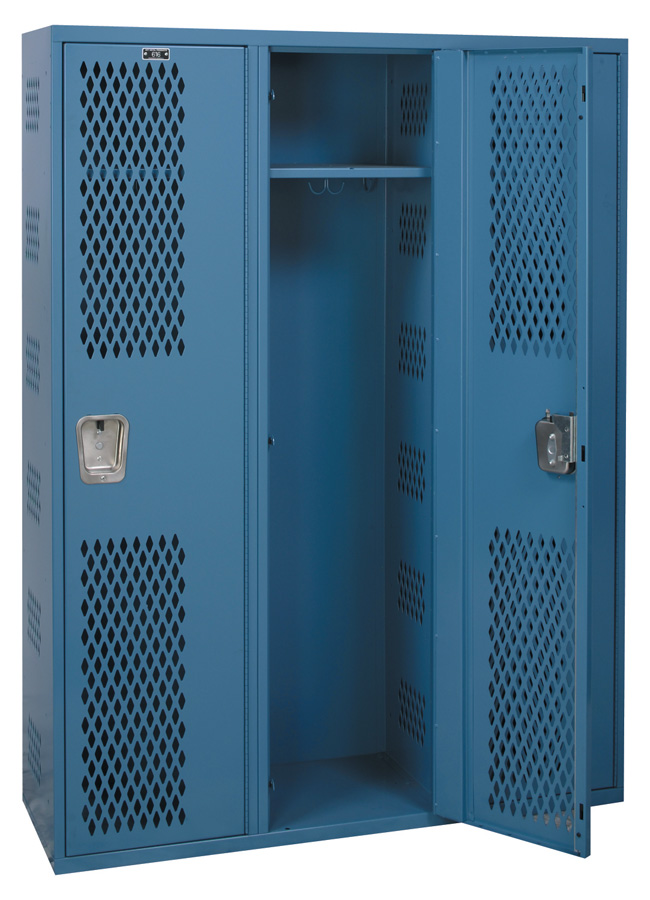

16 gauge hat shelf for single tier openings 60" and 72" high, 16 gauge intermediate shelves

Legs:

none

Catalog

Tier	Width	Depth	Column Heights
Single Tier	9" 12" 15" 18" 24"	12" 16" 18" 22"	48" 60" 72"
Double Tier	9" 12" 15" 18" 24"	12" 16" 18" 22"	48" 60" 72"
Triple Tier	9" 12" 15" 18" 24"	12" 16" 18" 22"	60" 72"
Note: All welded lockers will ship in multiple column units up to 60'' wide to meet Individual job site conditions.
