Heavy-Duty Ventilated KD Lockers (HDV)

More from: Wardrobe Lockers Lockers

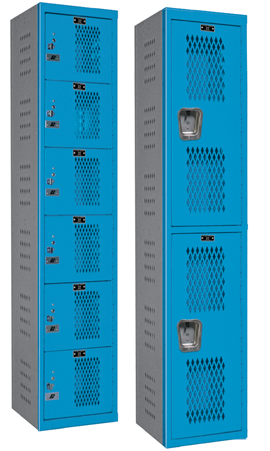

Available in single, double and six tier lockers.

Heavy-Duty Athletic Lockers with the ease and affordability of KD

304 Stainless Steel Recessed Handle

Deep-drawn 304 stainless steel recessed handle multi-point gravity-lift type latching.

Single Point Latching

Single-point projecting friction catch door pull prepared for both padlock or built-in lock. No moving parts ensure quiet maintenance-free operation. All box door finger pulls are made of a super tough nylon material which includes an Antimicrobial agent

Piano Hinge

A full-length piano hinge runs from the top to the bottom of the door and provides sturdy and smooth door operation.

Diamond Perforated Ventilation

Athletic-type lockers use diamond perforated doors and sides to ensure proper ventilation.

Overview
Catalog
Components
Color
Documents

Back to top

Product Overview

Heavy-Duty Knock-Down Lockers with Ventilation

Heavy-Duty Wardrobe and Box Lockers

3X More steel than conventional lockers

Ventilated doors and sides
Heavy gauge door and body
Large capacity sizes available
Strength and ventilation in one practical locker

Body/Frame Description:

(Wardrobe & Box lockers): Knock down with 16 gauge solid top, bottom and intermediate shelves, 16 gauge diamond perforated sides, 18 gauge solid back, 16 gauge frame with 16 gauge horizontal cross member between doors on double and triple tier wardrobe lockers

Body/Frame:

KD

Doors:

14 gauge diamond perforated doors are standard. Louvered, Security-Plus and Safety-View door styles are available

Door Strike:

Continuous vertical door strike at both hinge and latch side

Handle:

WARDROBE LOCKERS (Doors 20" and higher): Deep-drawn seamless stainless steel recessed handle

Gravity lift-type multi-point spring loaded latching:
- 3-point latching for openings 48" high and higher,
- 2 point latching for openings 20" high thru 36" high

BOX LOCKERS (Doors 18" high and under): Single-point thru-the-door finger pull padlock hasp

Hinges:

16 gauge continuous piano hinge

Hooks:

2-single hooks and 1-double hook is standard. 1- double hook only for triple tier and 1-double 1 - single hook for 9" wide openings 30" and higher

Coat Rods:

Coat rods are available for single-tier at a nominal cost.

Shelves:

16 gauge hat for single tier openings 60" and 72" high

Legs:

All production KD lockers are supplied without legs unless otherwise specified

Catalog

	KD Locker Sizes	Width	Depth	Opening Height	Frame Height
Wardrobe	Single Tier	9" 12" 15" 18" 24"	12" 15" 18" 21" 24"	36" 48" 60" 72"	36" 48" 60" 72"
	Double Tier	9" 12" 15" 18"	12" 15" 18" 21"	30" 36"	60" 72"
	Triple Tier	9" 12" 15" 18''	12" 15" 18" 21''	20" 24"	60" 72"
Box	Four Tier	12'', 15''	12" 15" 18"	15'', 18''	60" 72"
	Five Tier	12'', 15''	12" 15" 18"	12'', 14.4''	60" 72"
	Six Tier	12'', 15''	12" 15" 18"	12''	72"
Specialty	Two Person	15'', 18''	12" 15" 18"	N/A	60" 72"
	Duplex	15''	12" 15" 18"	60'', 72''	60" 72"
	Sixteen Person	72''	18''	12''	78'' (includes 6'' legs)
	4 Wide wall mount	48''	18"	12''	14-3/4
