All-welded unibody construction with ventilation is perfect for physical education lockers and gym lockers

Tried and tested by students in thousands of middle and high schools nationwide, these all-welded athletic lockers are ideal for use in institutional, industrial, fitness, manufacturing, and distribution sectors.

Piano Hinge

A full-length piano hinge runs from the top to the bottom of the door and provides sturdy and smooth door operation.

Single Point Latching

Single-point projecting friction catch door pull prepared for both padlock or built-in lock. No moving parts ensure quiet maintenance-free operation.

304 Stainless Steel Recessed Handle

Deep-drawn 304 stainless steel recessed handle multi-point gravity-lift type latching.

Diamond Perforated Ventilation

Athletic-type lockers use diamond perforated doors and sides to ensure proper ventilation.

Overview
Catalog
Components
Color
Documents

Back to top

Product Overview

All-Welded Ventilated Athletic Lockers

All-Welded Gym and P.E. Lockers

Tried and tested by students in thousands of middle and high schools nationwide, these all-welded athletic lockers are ideal for use in institutional, industrial, fitness, manufacturing and distribution sectors.

Body/Frame Description:

All-welded construction, 16 gauge body, 18 gauge back. Sides are diamond perforated

Body/Frame:

Fully Framed All-Welded

Doors:

14 gauge, diamond perforated for ventilation

Handle:

Stainless steel recessed handle with multi-point gravity lift-type latching for wardrobe doors. Box doors have friction catch finger pull handle.

Hinges:

Continuous piano type

Hooks:

SIngle and double tier models include two single prong hooks . Triple tier includes one double prong hook. No hooks at six tier.

Shelves:

Single tier model includes a hat shelf.

Catalog

All-Welded Gym and P.E. Lockers

One-Tier Wardrobe
SKU	Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	colors	Assembled
AWA282-1	12	18	72	72	1-wide	1	1	Midnight Ebony body/frame with Relay Red doors	Assembled

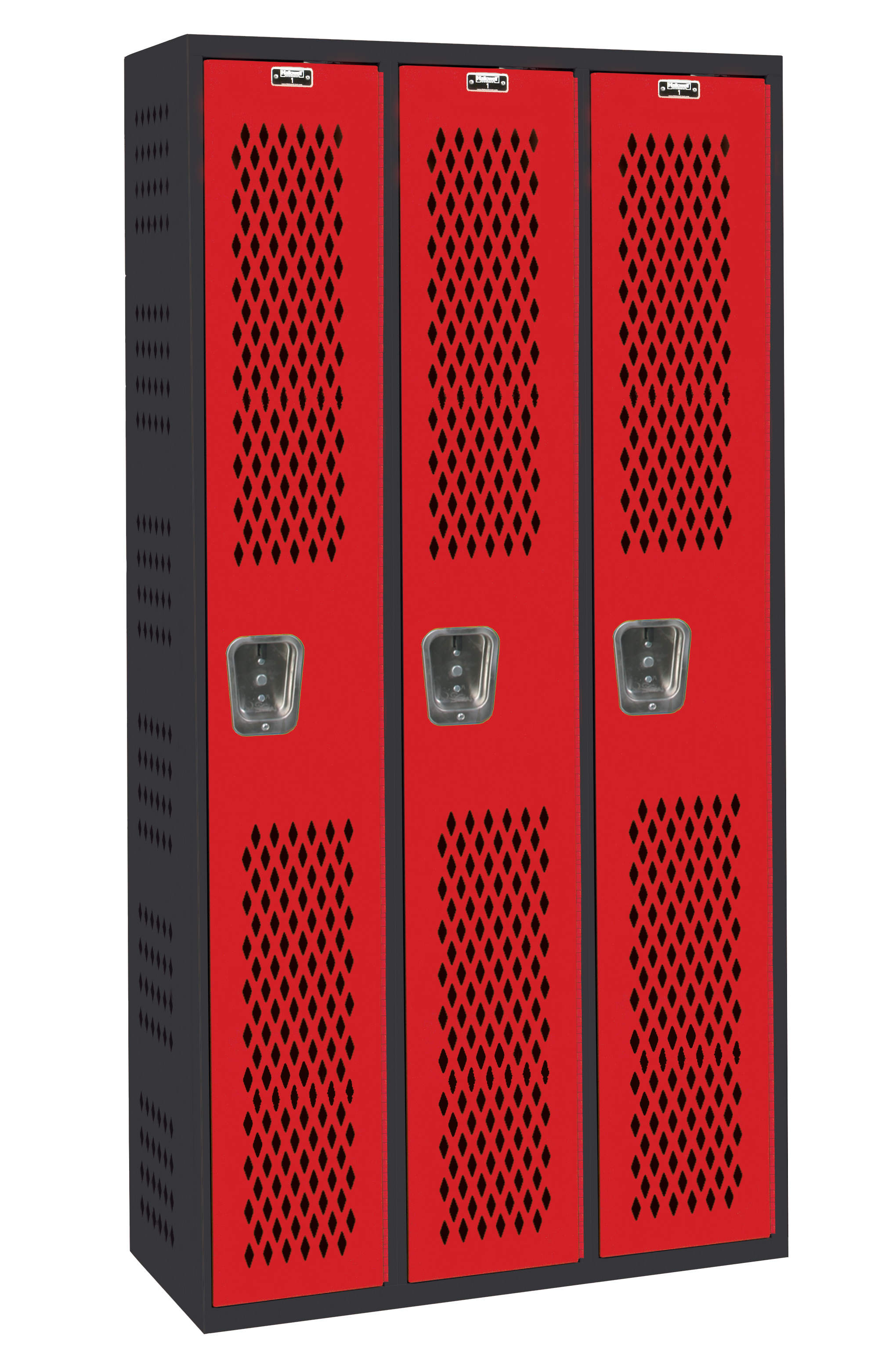

AWA282-111	36	18	72	72	3-wide	3	1	Midnight Ebony body/frame with Relay Red doors	Assembled

Two-Tier Wardrobe
SKU	Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	colors	Assembled

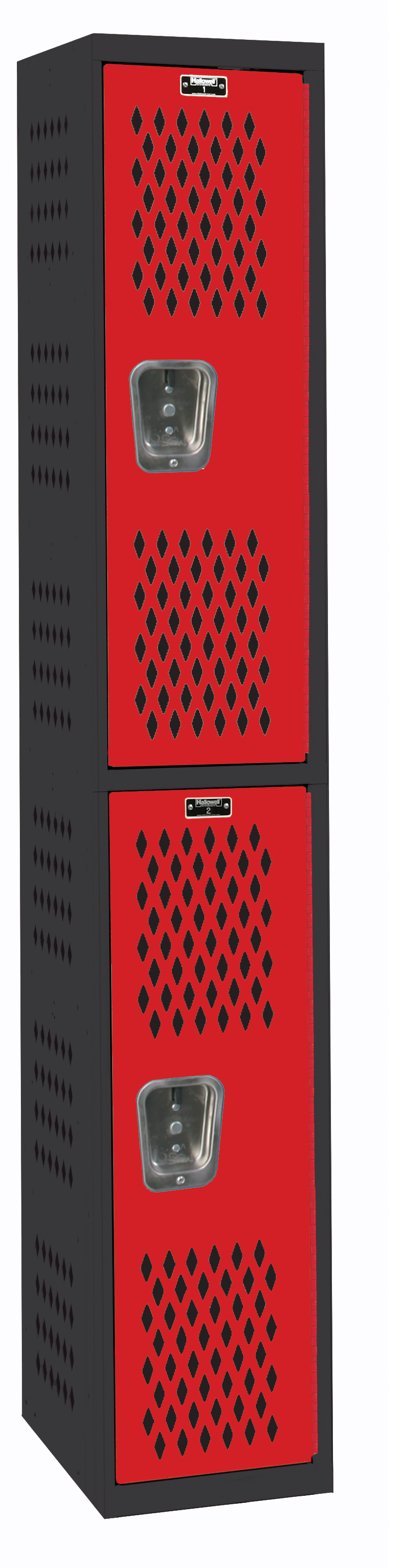

AWA282-2	12	18	36	72	1-wide	2	2	Midnight Ebony body/frame with Relay Red doors	Assembled

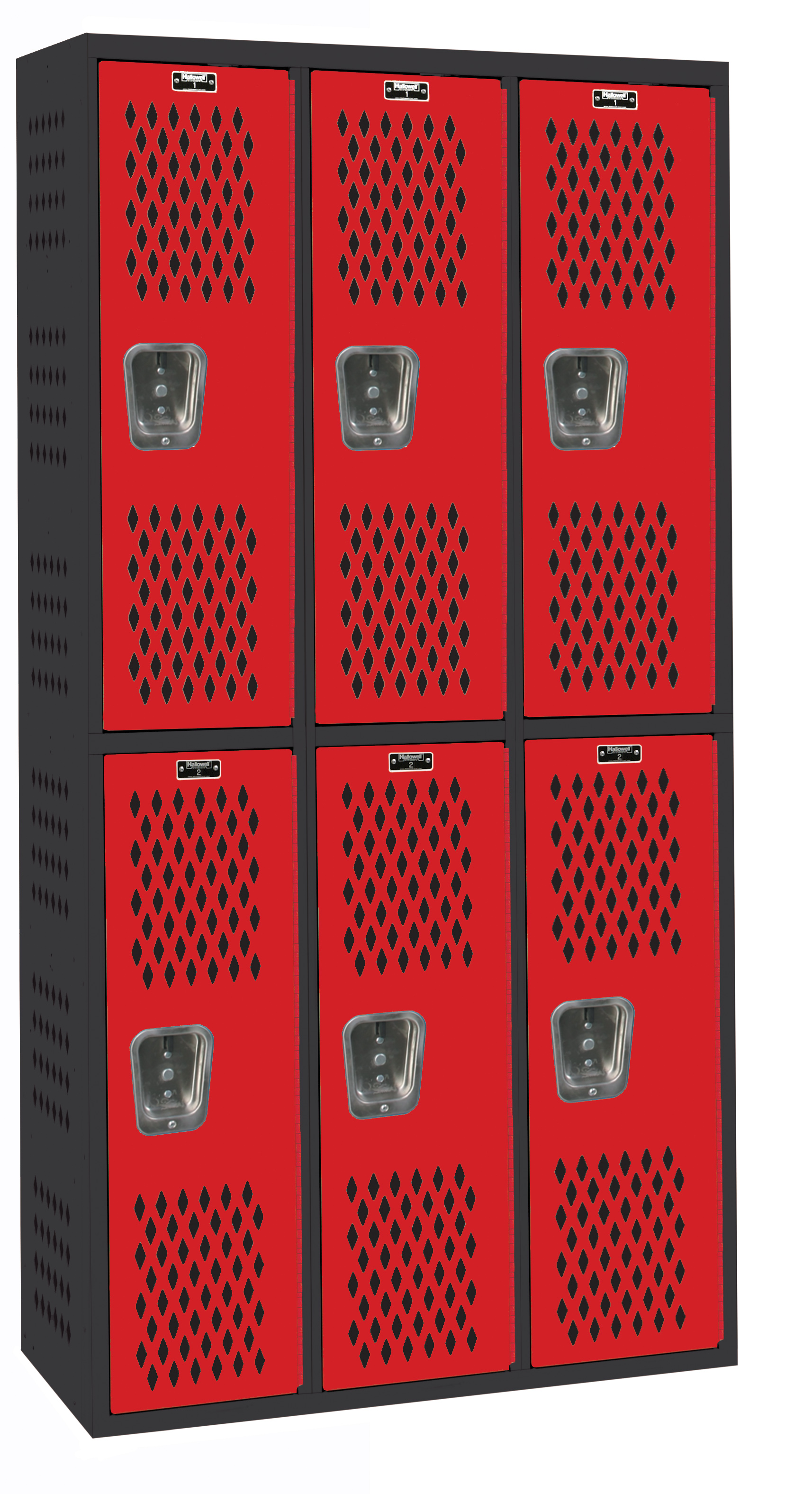

AWA282-222	36	18	36	72	3-wide	6	2	Midnight Ebony body/frame with Relay Red doors	Assembled
