304 Stainless Steel lockers

More from: Wardrobe Lockers Lockers

Ideal for areas prone to rust and sanitation concerns.

The rich appearance and durable surface of Superior 304 Stainless Steel Lockers make them the perfect locker solution for areas prone to rust and sanitation concerns and are ideal for the food industry, pool area and outdoor.

Louvers

Louvers at the top and bottom provide discrete ventilation with an attractive appearance.

304 Stainless Steel Recessed Handle

Deep-drawn 304 stainless steel recessed handle multi-point gravity-lift type latching.

2-1/2" 5-knuckle hinges

2-1/2" 5-knuckle hinges. 3 hinges for single tier and 2 hinges for double & six tier.

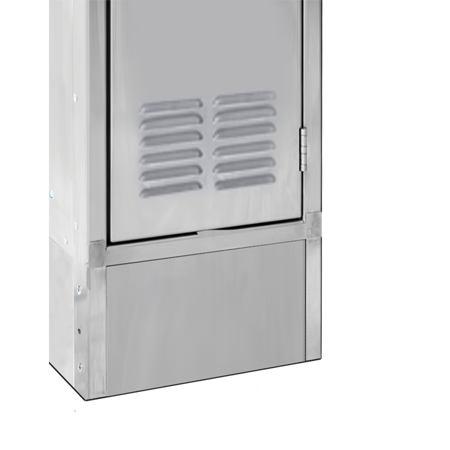

Optional Closed Base

Closed base can optionally be added to the units

Overview
Catalog
Components
Color
Documents

Back to top

Product Overview

Attractive Durable Rust Resistant

The rich appearance and durable surface of Hallowell 304 Stainless Steel Lockers make them the perfect locker solution for areas prone to rust and sanitation concerns and are ideal for the food industry, pool area, and outdoor.

Body/Frame Description:

knock-down 24 gauge, single-tier, double-tier, and six-tier

Body/Frame:

KD

Doors:

Louvered. 16 gauge for single and double tier lockers. 18 gauge for 6-tier box lockers.

Handle:

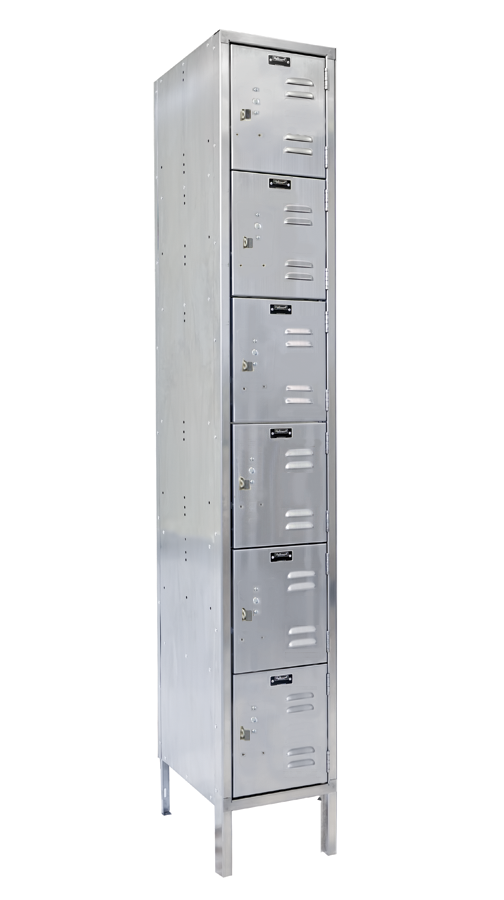

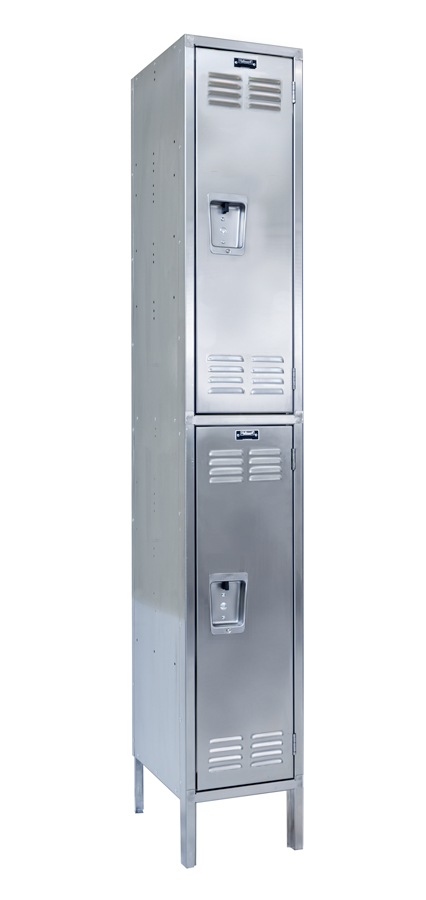

Single and double tier lockers have a deep drawn stainless steel recessed handle with multi-point gravity lift-type latching. Six tier lockers have a deep drawn stainless steel single-point recessed handle.

Latching:

single and double tier use gravity-lift and six-tier uses single-point

Hinges:

2-1/2" 5-knuckle hinges. 3 hinges for single tier and 2 hinges for double & six tier

Hooks:

One double prong ceiling hook and three single hooks per single and double tier opening. No hooks for six tier.

Coat Rods:

available for single tier at a nominal cost

Shelves:

hat shelf is included in single tier lockers

Legs:

6" high legs are standard - lockers without legs are available for a nominal charge

Catalog

Stainless Steel Lockers

Side Bases
SKU	Depth	Opening Height	KD	Assembled
PPEB1806S	18	6		No

Coat Rods
SKU	Width	KD	Assembled
PPCR12S	12		No
PPCR18S	18		No

Front Bases
SKU	Width	Opening Height	KD	Assembled
PPFB1206S	12	6		No
PPFB1806S	18	6		No

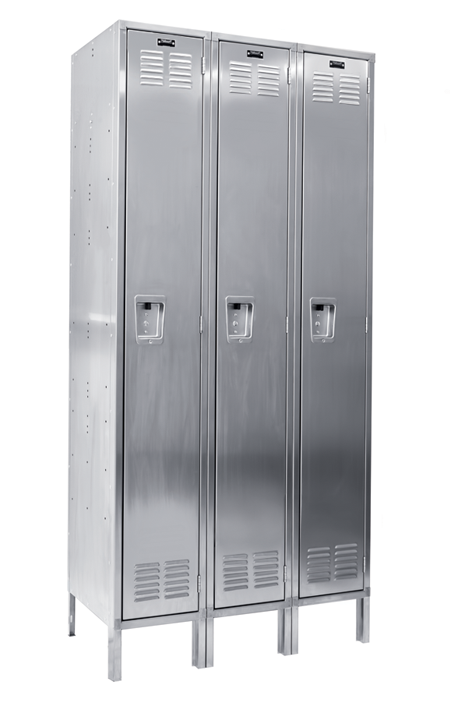

Single Tier
Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	KD	Assembled
12	18	72	72/78	1-wide	1	1	USS1288-1	USS1288-1A
12	18	72	72/78	3-wide	3	1	USS3288-1	USS3288-1A
18	18	72	72/78	1-wide	1	1	USS1888-1	USS1888-1A
18	18	72	72/78	3-wide	3	1	USS3888-1	USS3888-1A

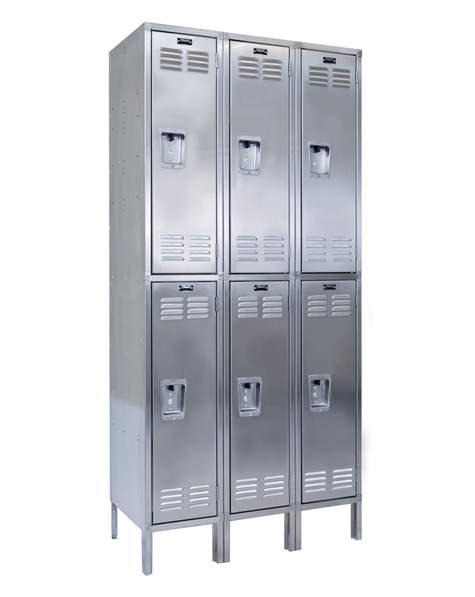

Double Tier
Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	KD	Assembled
12	18	36	36/78	1-wide	2	2	USS1288-2	USS1288-2A
12	18	36	36/78	3-wide	6	2	USS3288-2	USS3288-2A
18	18	36	36/78	1-wide	2	2	USS1888-2	USS1888-2A
18	18	36	36/78	3-wide	6	2	USS3888-2	USS3888-2A

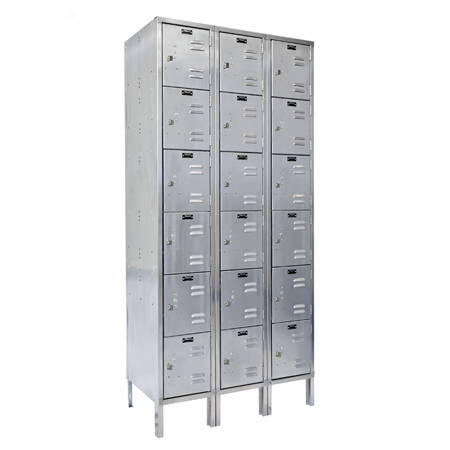

Six Tier
Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	KD	Assembled
12	18	12	12/78	1-wide	6	6	USS1288-6	USS1288-6A
12	18	12	12/78	3-wide	18	6	USS3288-6	USS3288-6A
18	18	12	12/78	1-wide	6	6	USS1888-6	USS1888-6A
18	18	12	12/78	3-wide	18	6	USS3888-6	USS3888-6A
