400 Series - Safety-View Door Cabinets

400 Series KD Cabinets - Functional • Durable • Adaptable.

3 Cabinet configurations:

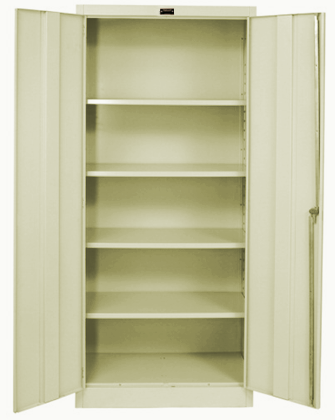

Storage:1 fixed upper shelf and 3 adjustable shelves

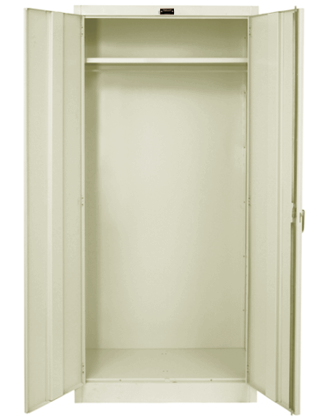

Wardrobe:1 fixed upper shelf and a coat rod

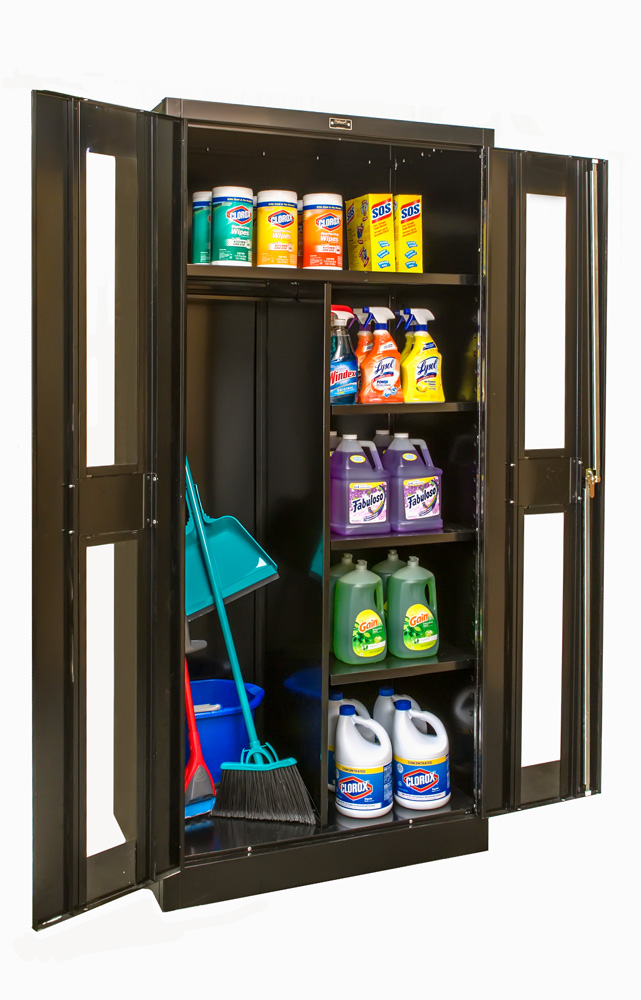

Combination: 1 fixed full-width shelf, 3 half-width shelves and a half-width coat rod

Full Length Door Stiffener

The door stiffener runs the full height of each door to give structure and rigidity.

3-Point Latching

The handle and lock latches the door at the top, bottom, and at handle.

Mobile Option

Casters can be mounted to the four bottom corners to create a mobile unit.

Safety-View Doors

Clear panels in the doors allow for the viewing of contents.

Overview
Catalog
Components
Color
Documents

Back to top

Product Overview

Wardrobe

Combination

Storage

Commercial Grade KD Cabinets with windowed door panels.

Standard Features of KD Cabinets:

All components precision engineered with no bolt heads showing on front and side panels
Body and shelves fabricated from 22 gauge steel
Shelves easily adjust up or down in 2” increments. Triple flanged shelf front for added strength (capacity up to 200 lbs.)
Reinforced doors swing a full 180°
22 gauge steel Doors are factory-hung in 16 gauge frames ensuring proper performance
Safety-View Doors (See-thru Polycarbonate Insert)
16 gauge continuous hinges
Corner foot gussets provide added rigidity and stability (replaced by mounting plates on mobile units)
Positive three-point locking (top, center and bottom) for secure locking
Plated locking handle has built-in cylinder key lock (keys included)
Mobile units include four heavy-duty locking swivel casters

CONFIGURATIONS:

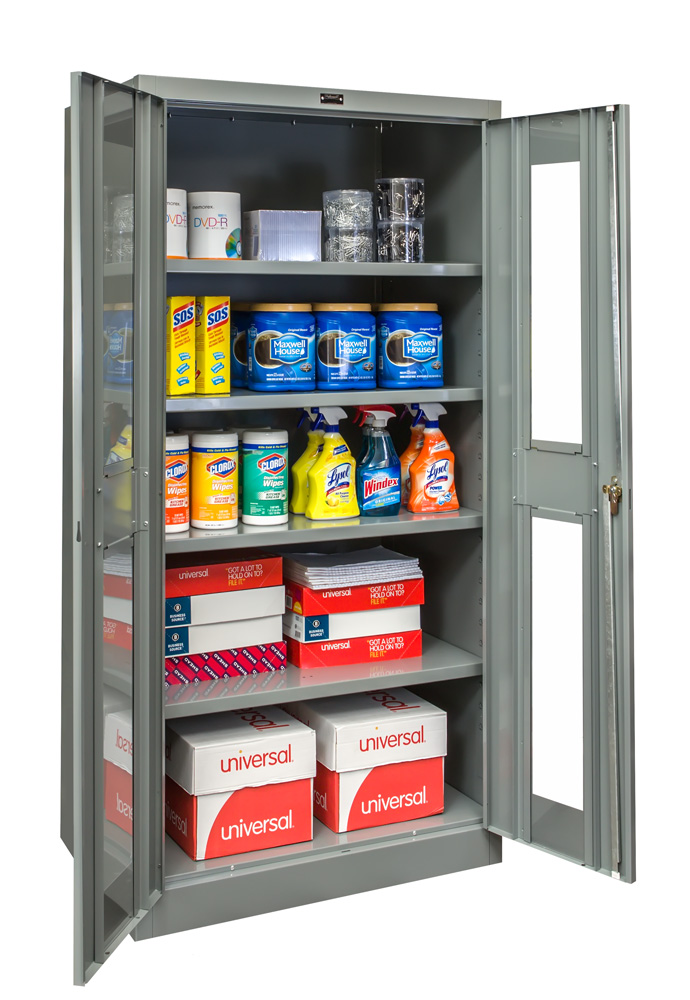

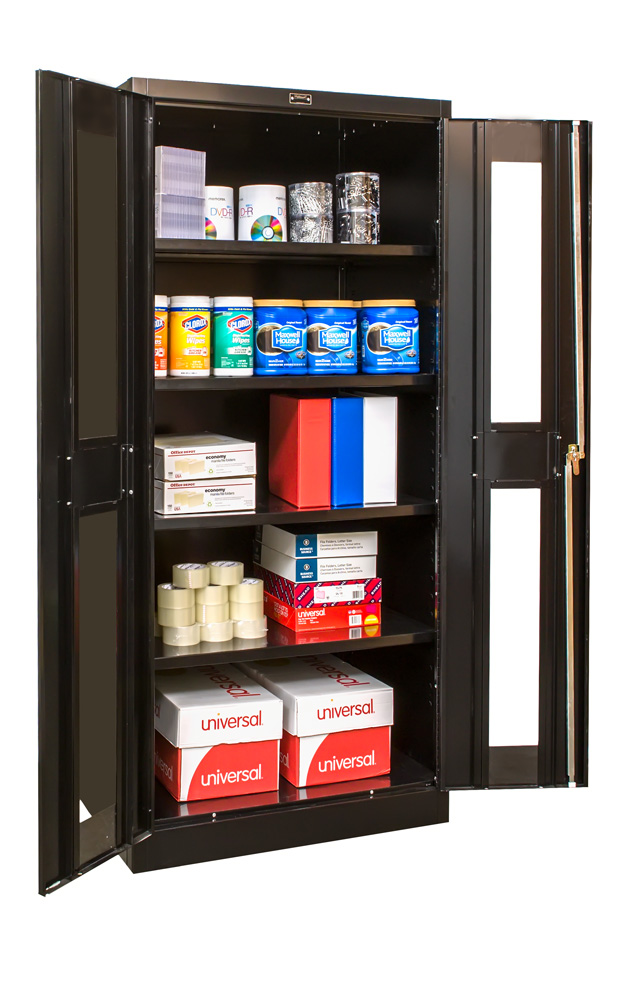

• Storage includes: 1 fixed upper shelf & 3 adjustable shelves

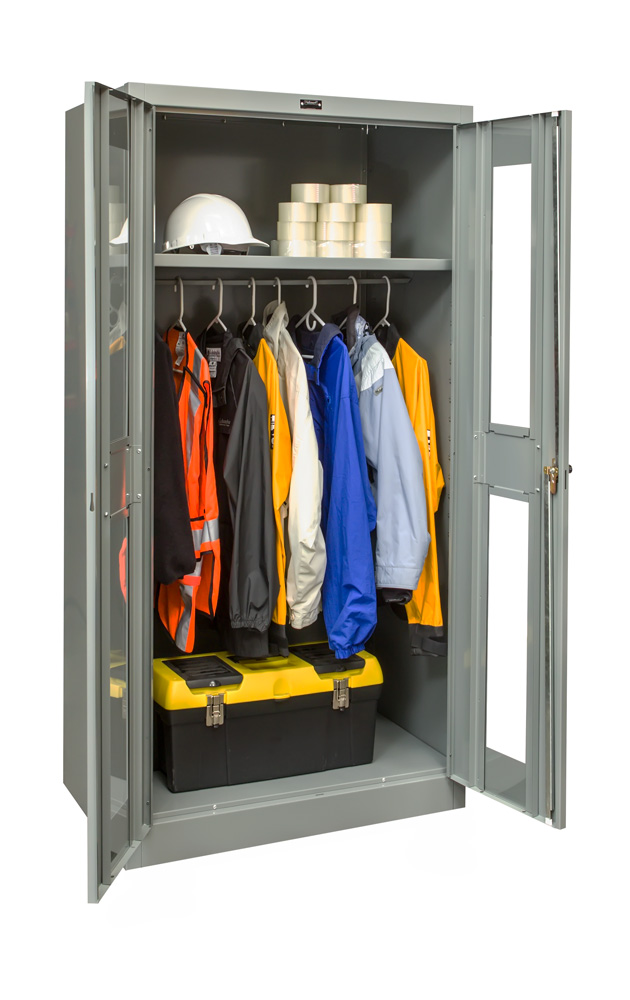

• Wardrobe includes: 1 fixed upper shelf and coat rod
• Combination includes: 1 fixed upper shelf, 3 half width adjustable shelves, and a half width coat rod

24" Deep Storage Cabinets are available in stationary and mobile versions.

Catalog

400 Series

Safety View Door Cabinets
SKU	Cabinet Type	Width	Depth	Frame Height	colors	Assembled

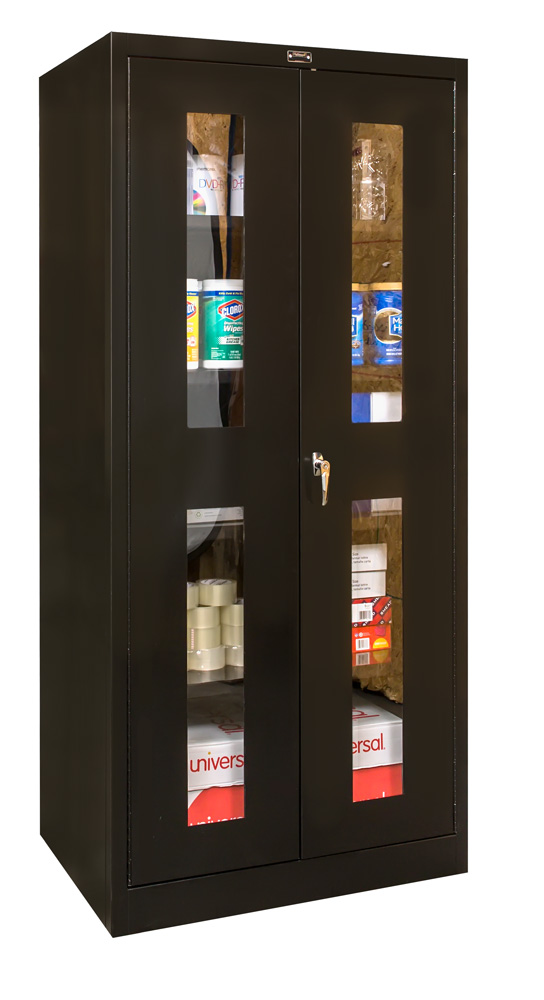

415S18SV	Storage	36	18	72	Black, Dark Gray	KD
415S18SVA	Storage	36	18	72	Black, Dark Gray	Assembled
415S24SV	Storage	36	24	72	Black	KD
415S24SVA	Storage	36	24	72	Black	Assembled
415S24SVM	Mobile, Storage	36	24	72	Black	KD
415S24SVMA	Mobile, Storage	36	24	72	Black	Assembled

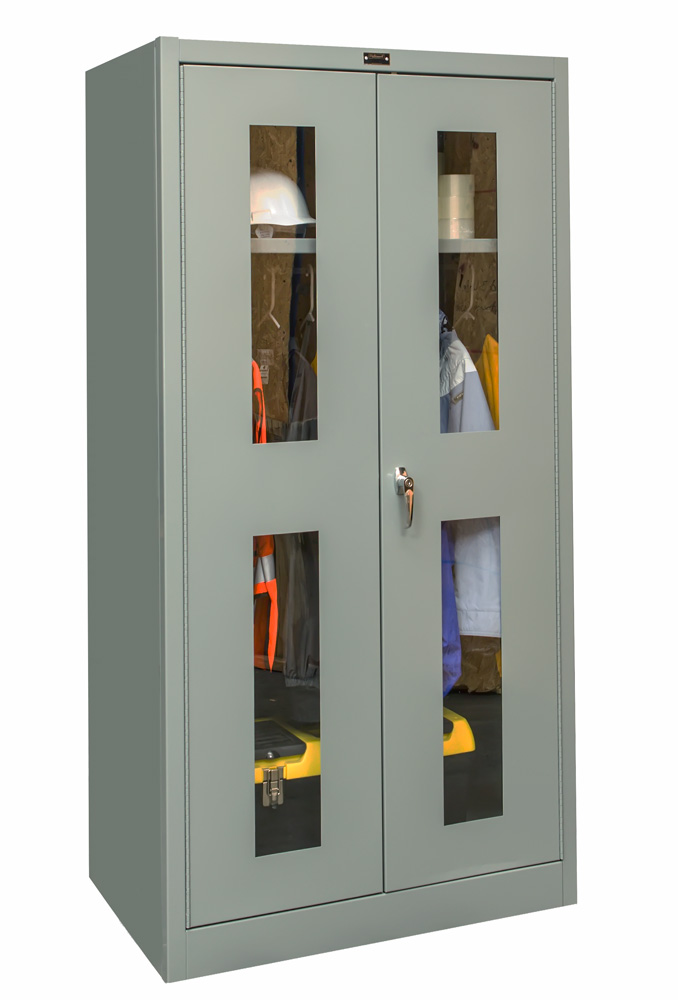

435W18SV	Wardrobe	36	18	72	Black, Dark Gray	KD
435W18SVA	Wardrobe	36	18	72	Black, Dark Gray	Assembled
435W24SV	Wardrobe	36	24	72	Black	KD
435W24SVA	Wardrobe	36	24	72	Black	Assembled

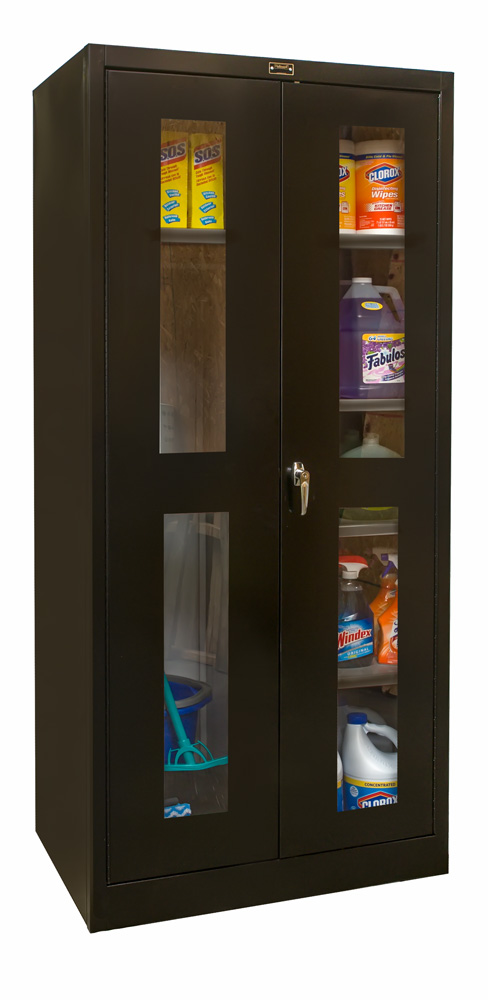

455C18SV	Combination	36	18	72	Black, Dark Gray	KD
455C18SVA	Combination	36	18	72	Black, Dark Gray	Assembled
455C24SV	Combination	36	24	72	Black	KD
455C24SVA	Combination	36	24	72	Black	Assembled
