view locker accessories and options
Base is fabricated of 16 gauge cold rolled sheet steel. Available in all powder coat finishes to match lockers.
A tradition of Quality since 1903
Made in America
Call Toll Free: 866-566-0500

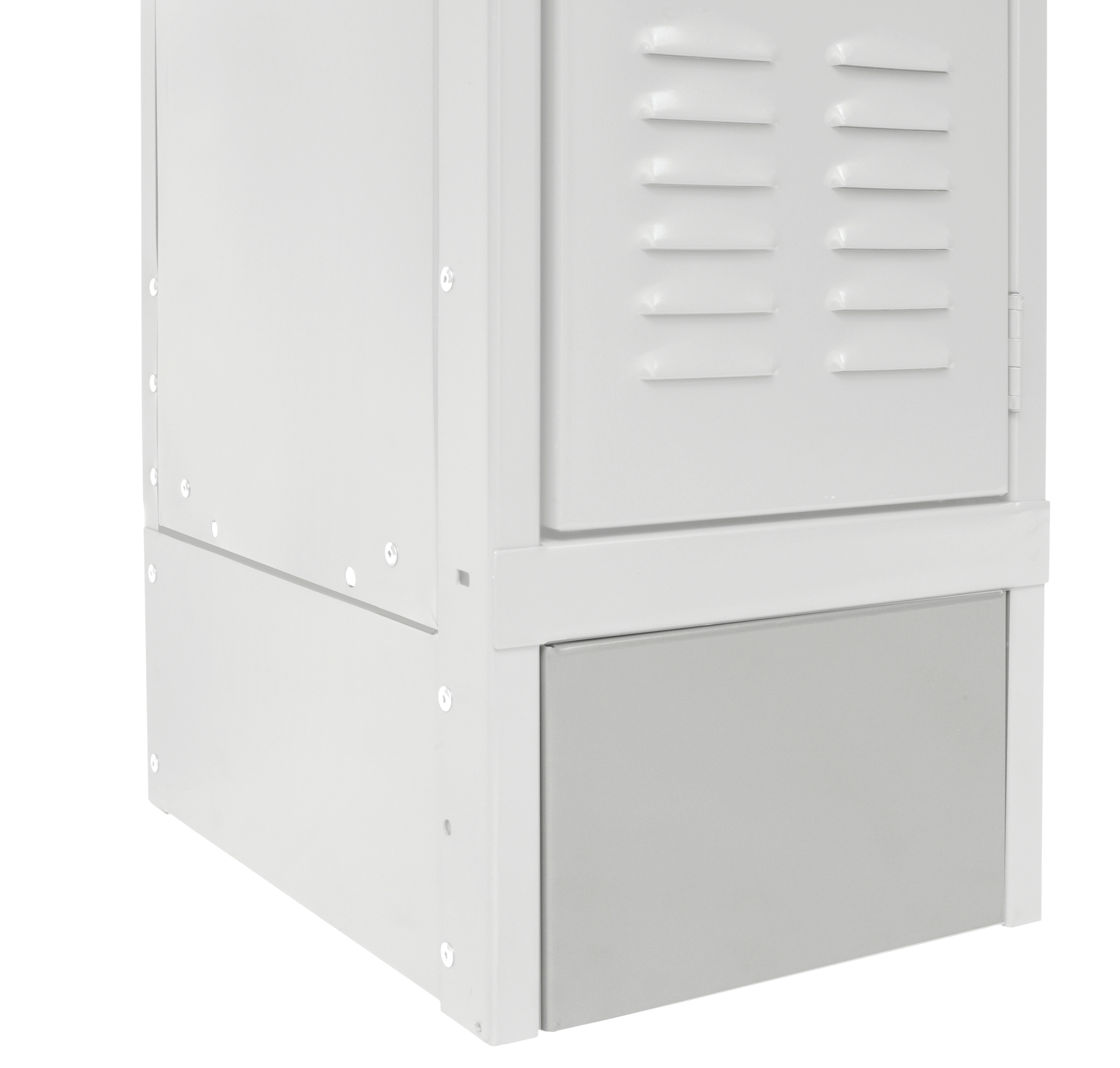

KCFB Front Base (KD lockers only)

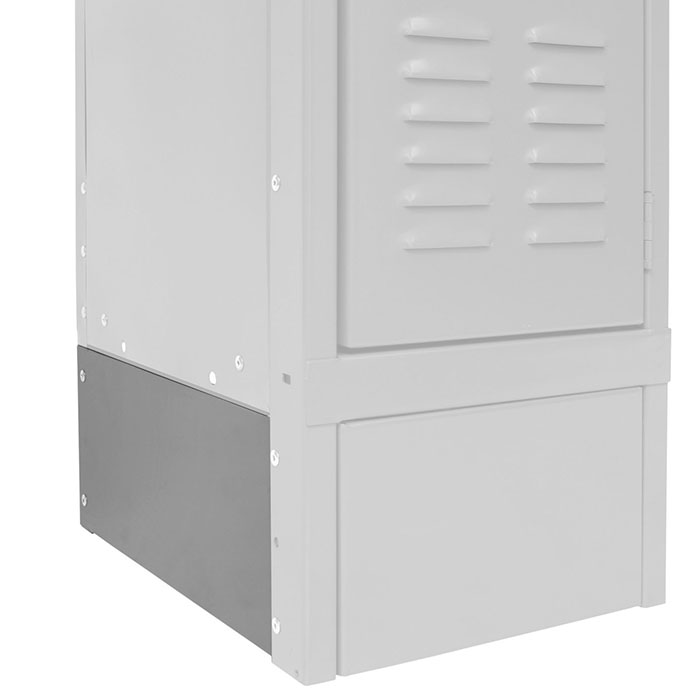

KCSB Side Base (KD lockers only)
Side Base is fabricated of 16 gauge cold rolled sheet steel. Side bases are used at all exposed ends and are bolted to front and rear legs. Available in all powder coat finishes to match lockers.

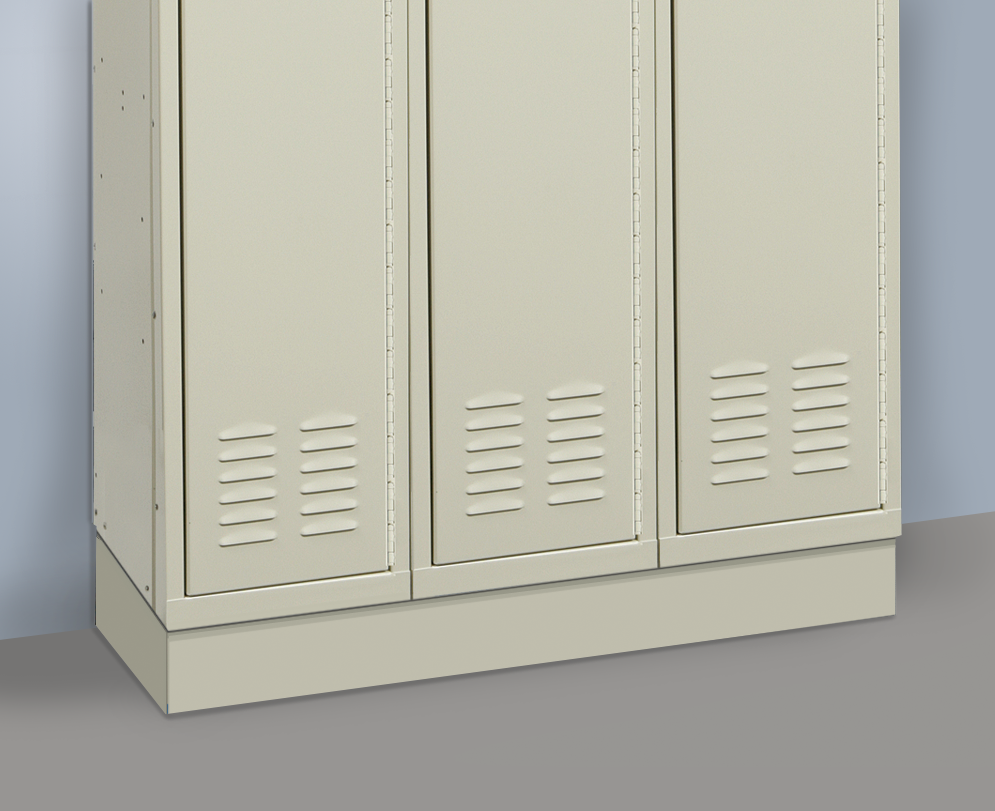

KZBF 4" Continuous Z-Base (KD lockers only)
Shall be fabricated from 16 gauge cold rolled sheet steel fabricated in 72" lengths, flanged at the top to form a 1-3/8" toe space and at the bottom allowing concealed fastening to the finished floor. Continuous Front Bases include holes for use with splice plates where bases are joined end-to-end. End Bases are to be included at all exposed ends. Where additional support is desired, End Bases may be substituted for splices at Continuous Front Base joints. Finish to match lockers.

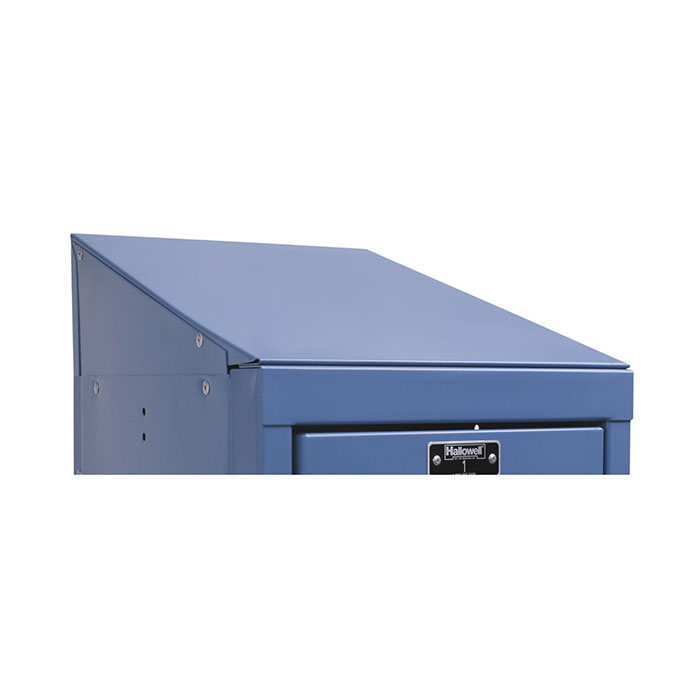

KISTT 20 gauge Individual Slope Top (KD lockers only)
Not less than 20 gauge cold rolled sheet steel, 18 degree pitch, fabricated to be installed individually over each locker. Slope top is formed to include a full back. Individual Slope Tops are to be installed in addition to the locker flat top. End closures are to be provided at exposed ends. Finish to match lockers.

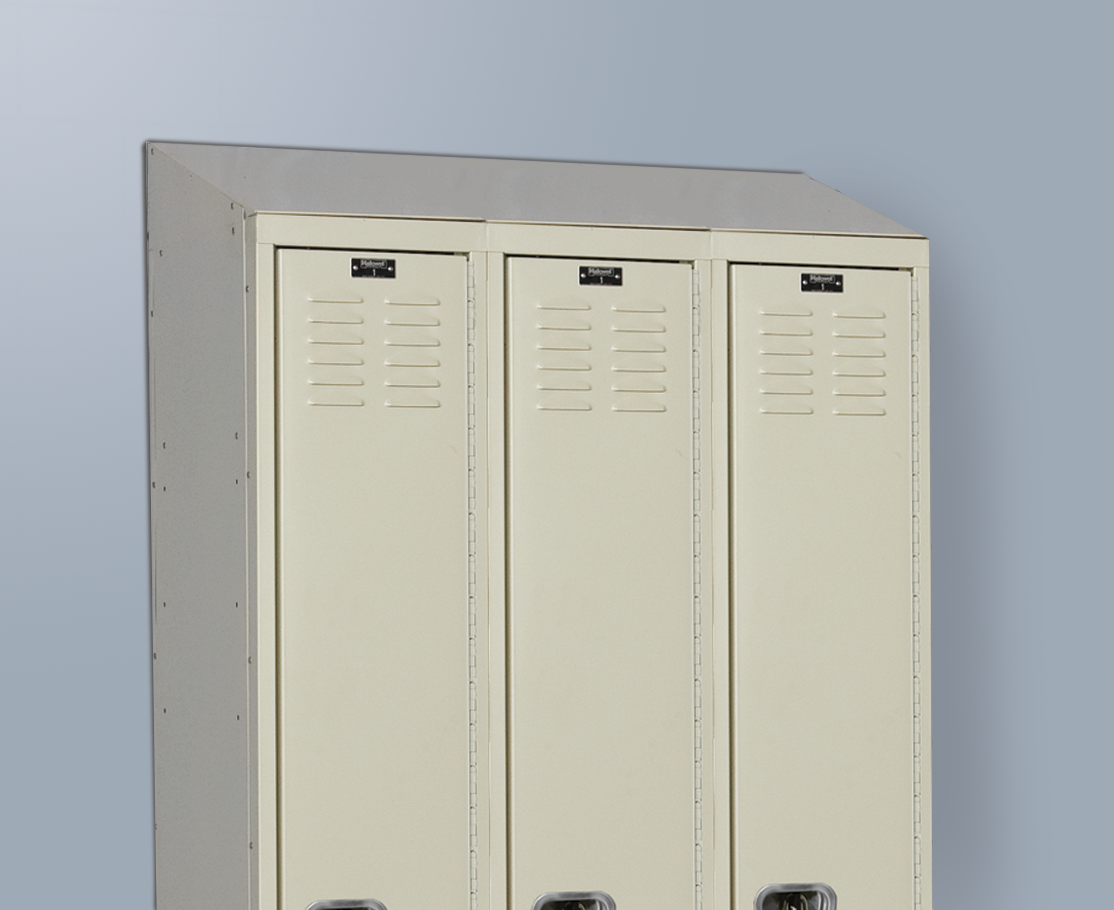

CST 18 gauge Continuous Slope Top
Not less than 18 gauge cold rolled sheet steel, 18 degree pitch, in 72" lengths. A splice cover with concealed spring clip is to used to cover joints where Continuous Slope Tops are joined end-to-end. To be installed in addition to the locker flat top with end closures for support. Finish to match lockers.
CST 16 Gauge Continuous Slope Top
Not less than 16 gauge cold rolled sheet steel, 18 degree pitch, in 72" lengths. A splice cover with concealed spring clip is to used to cover joints where Continuous Slope Tops are joined end-to-end. To be installed in addition to the locker flat top with end closures for support. Finish to match lockers.

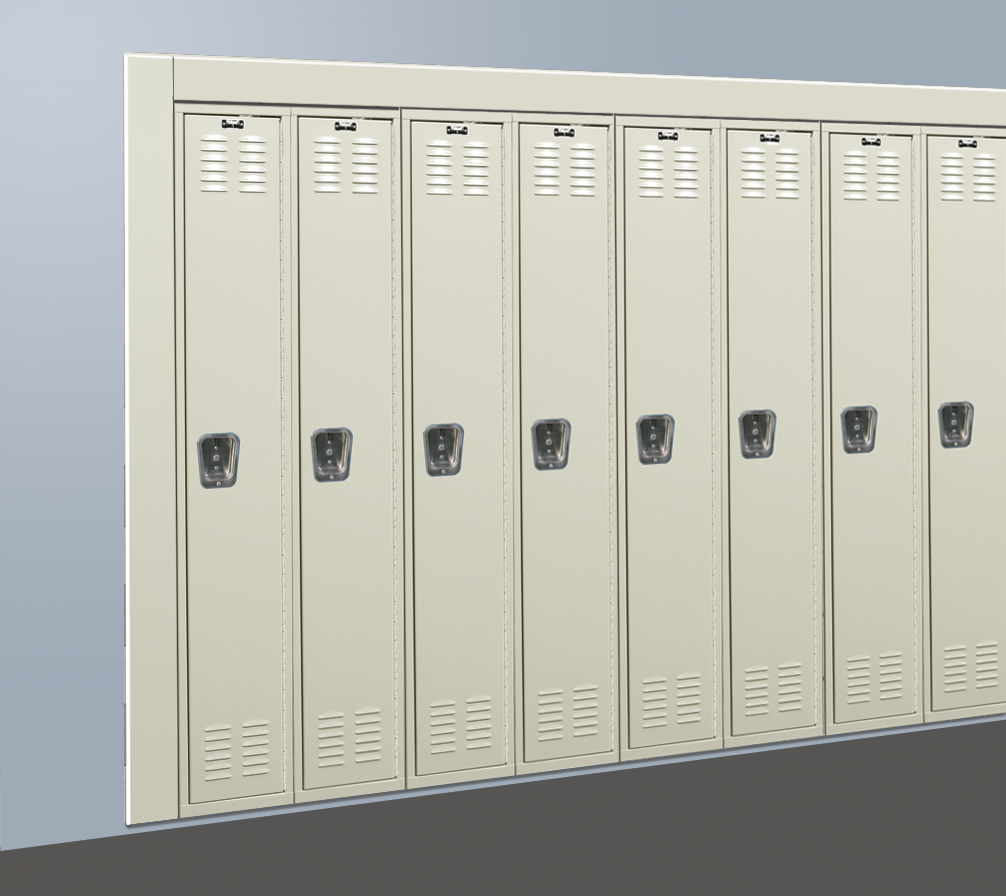

WRT Recessed Trim
Fabricated of 16 gauge cold rolled sheet steel. 3" wide side trim shall be notched at the top and include a retainer to allow the 3" wide top trim to fit snugly into the side trim. Recess trim is designed to be used when the lockers are installed with the locker fronts flush with the top and side walls. The top and side trim will project 3/8" beyond the side and top walls and include return bends back to the walls. Finish to match lockers.

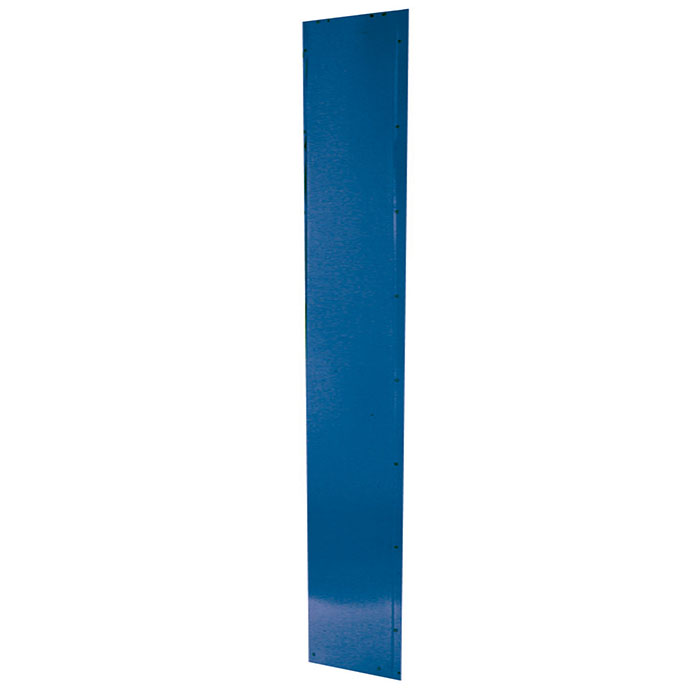

KMP Minimum Punched End Panel (KD lockers only):
18 gauge cold rolled steel and formed to fit tightly over the universal side panel at exposed row ends. Holes are provided at perimeter for fastening to locker. KMP - Minimum Punched End Panels are designed to cover all fasteners other than those at the perimeter of the panel. Finish to match lockers. Provide at all exposed ends.

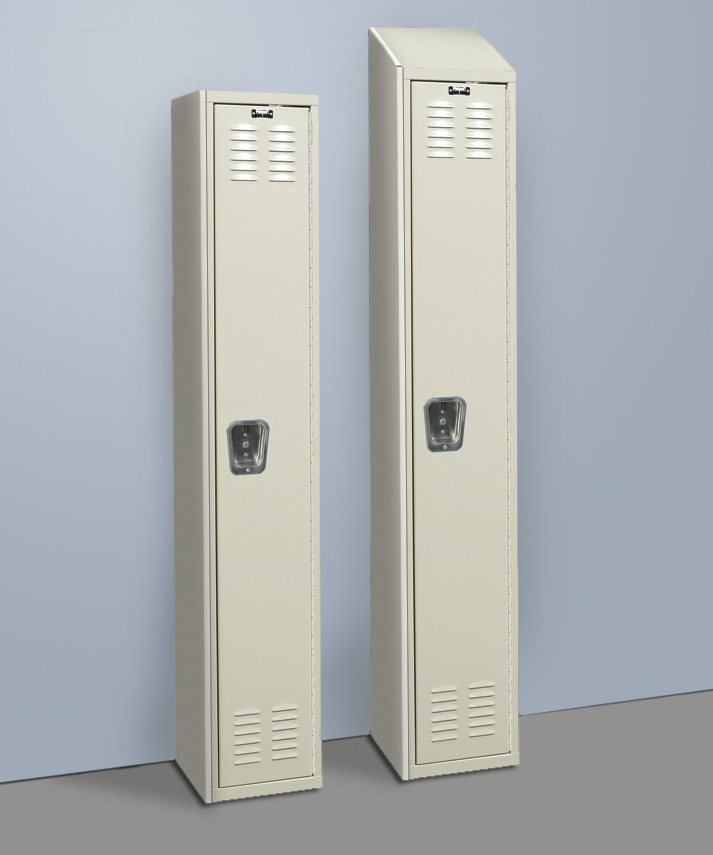

KBE Boxed End Panel
Shall be "Boxed" type formed from 16 gauge cold rolled steel with 1" O.D. double bends on sides and a single bend at top and bottom with no exposed holes or bolts. If lockers have slope tops, end panels must be formed with slope at top to cover the ends of the slope tops. Finish to match lockers. Provide at all exposed ends.

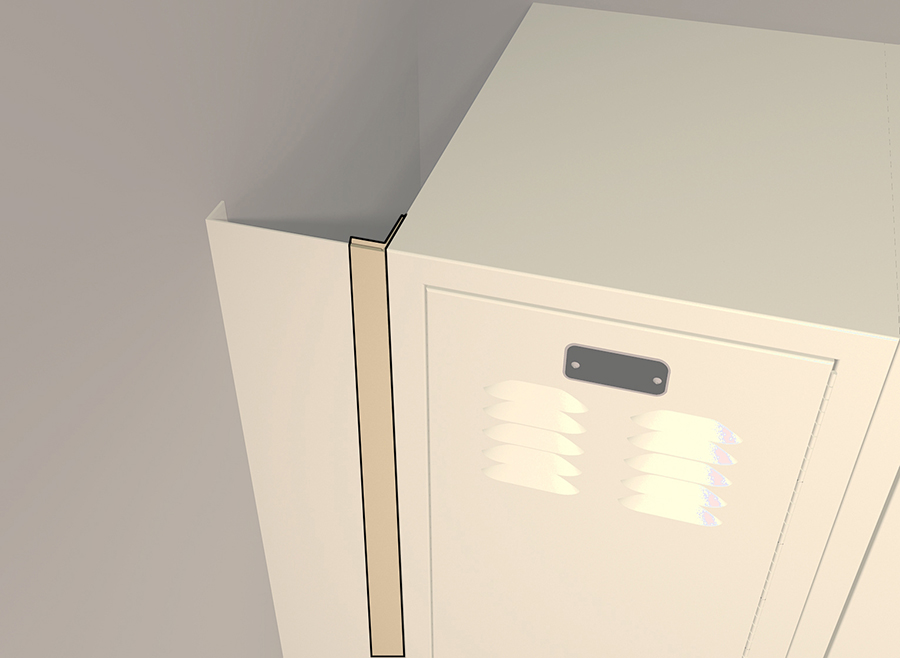

KG Slip Joints
Provide where indicated, of not less than 16 gauge cold rolled sheet steel, factory fabricated and finished to match lockers.

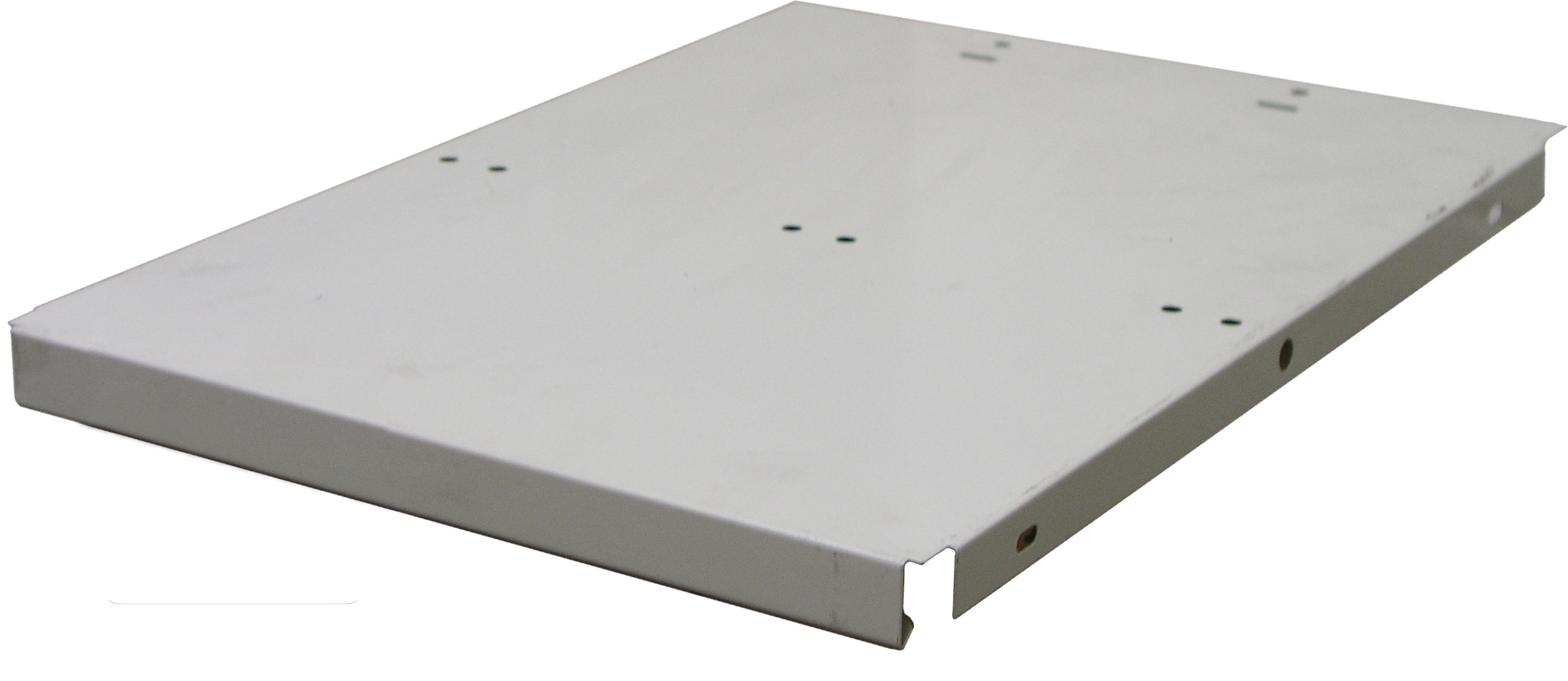

KH 24ga. Additional Hat Shelf ( KD only)
24 ga. Additional Shelf must be installed using existing holes which are standard universal side panel to avoid field drilling.

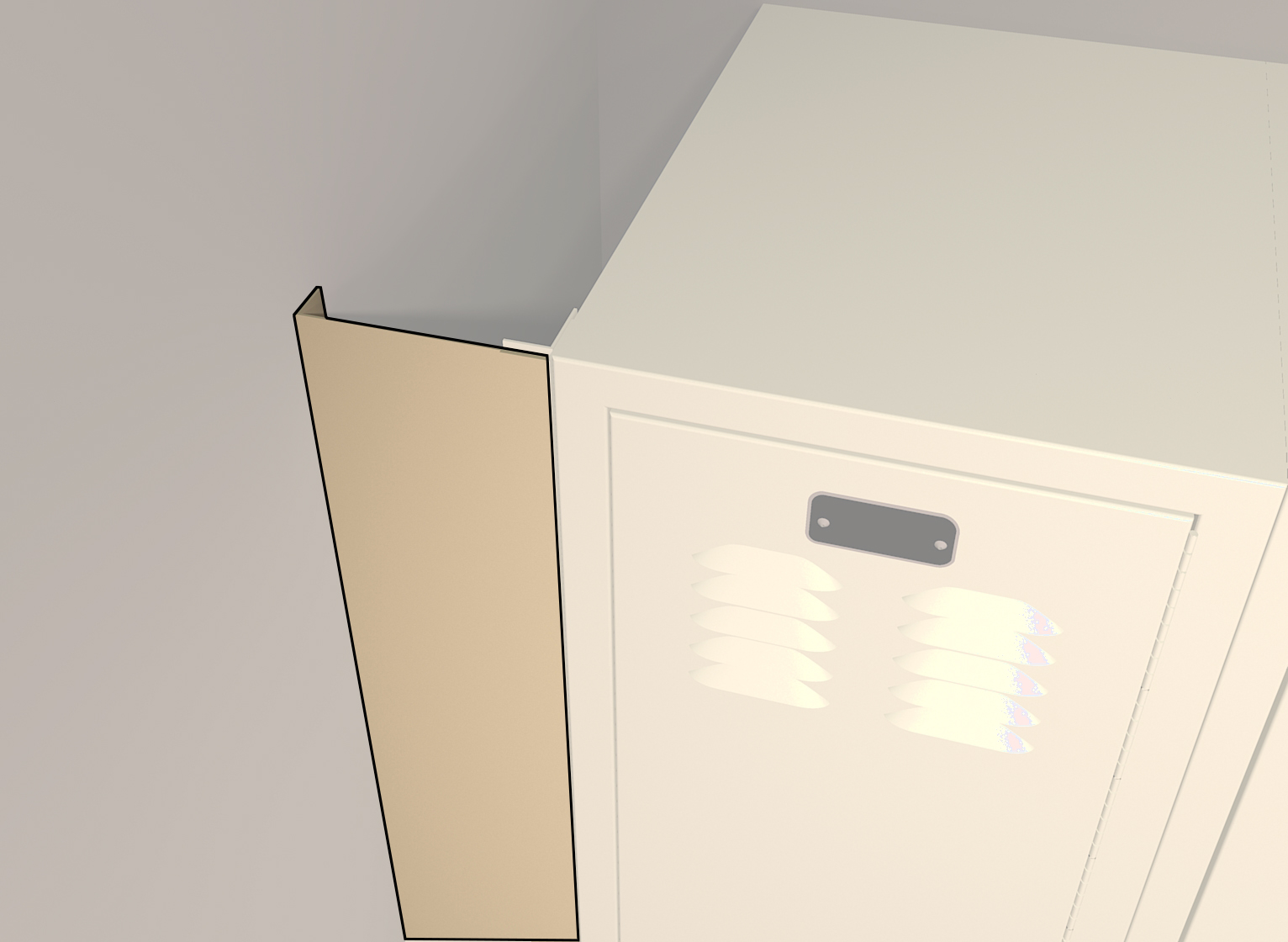

KFSF Front Fillers
Provide where indicated, of not less than 16 gauge cold rolled sheet steel, factory fabricated to and finished to match lockers.

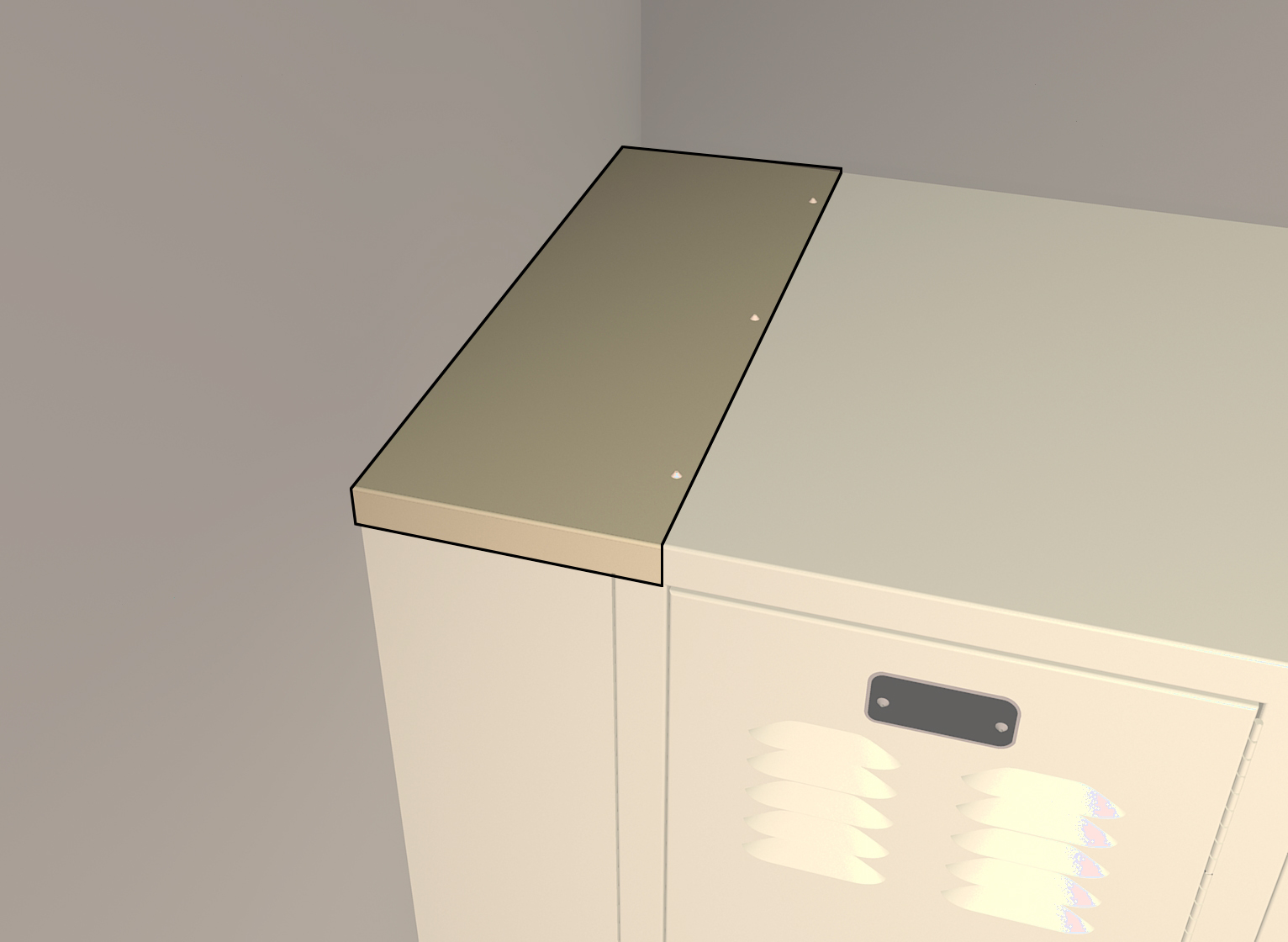

KFTF Top Filler
16 gauge cold rolled sheet steel, factory fabricated to and finished to match lockers.

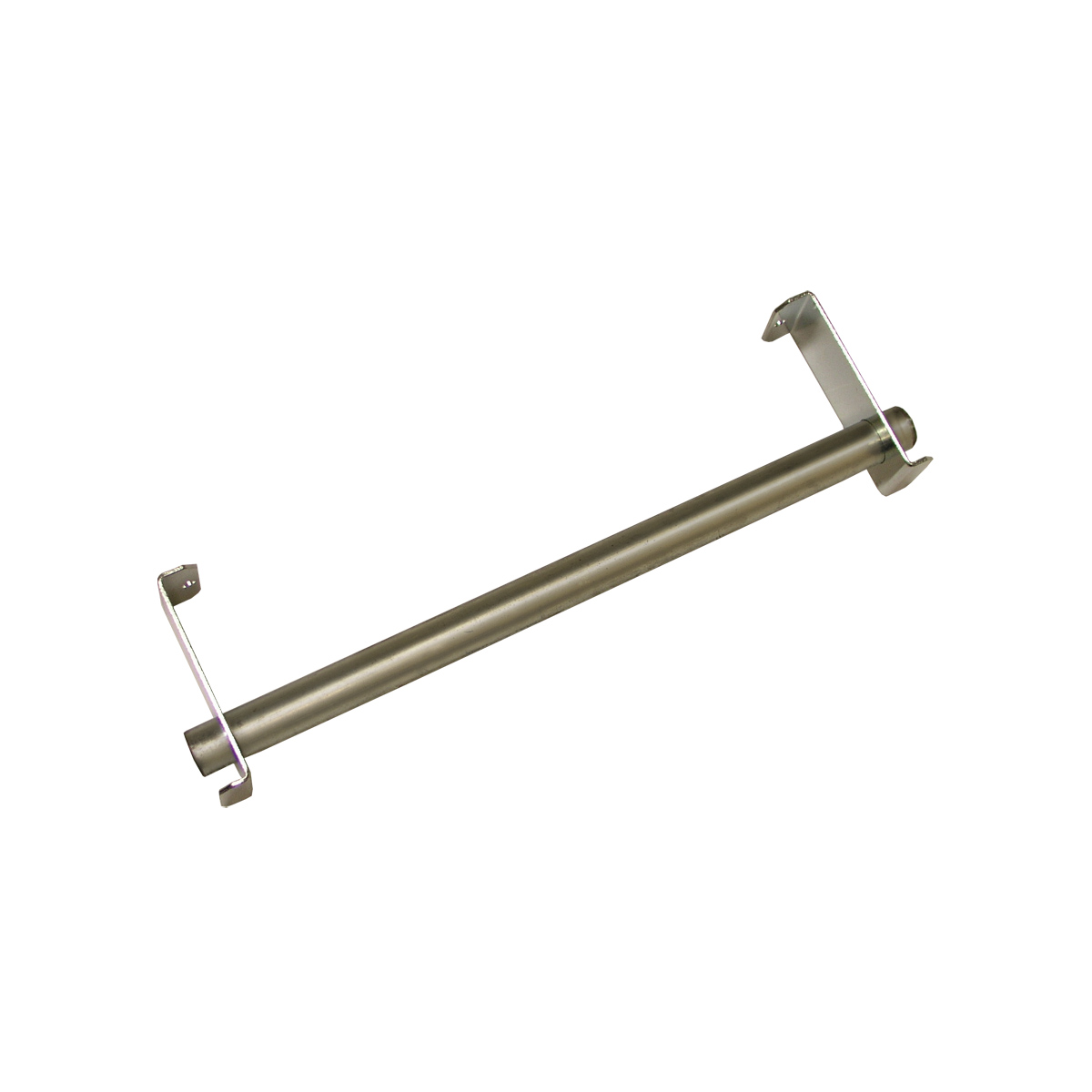

KCR Coat Rod
KCR Coat Rod .
